Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper transmission to the wiper drive system module tube frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install wiper transmission screws.

    Tighten

    Tighten the screws to 9 N.m (80 lb in).

  3. Install the wiper transmission caps.
  4. Install the wiper drive system module. Refer to Wiper Drive System Module Replacement .
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  6. Operate the windshield wipers and inspect for proper operation.

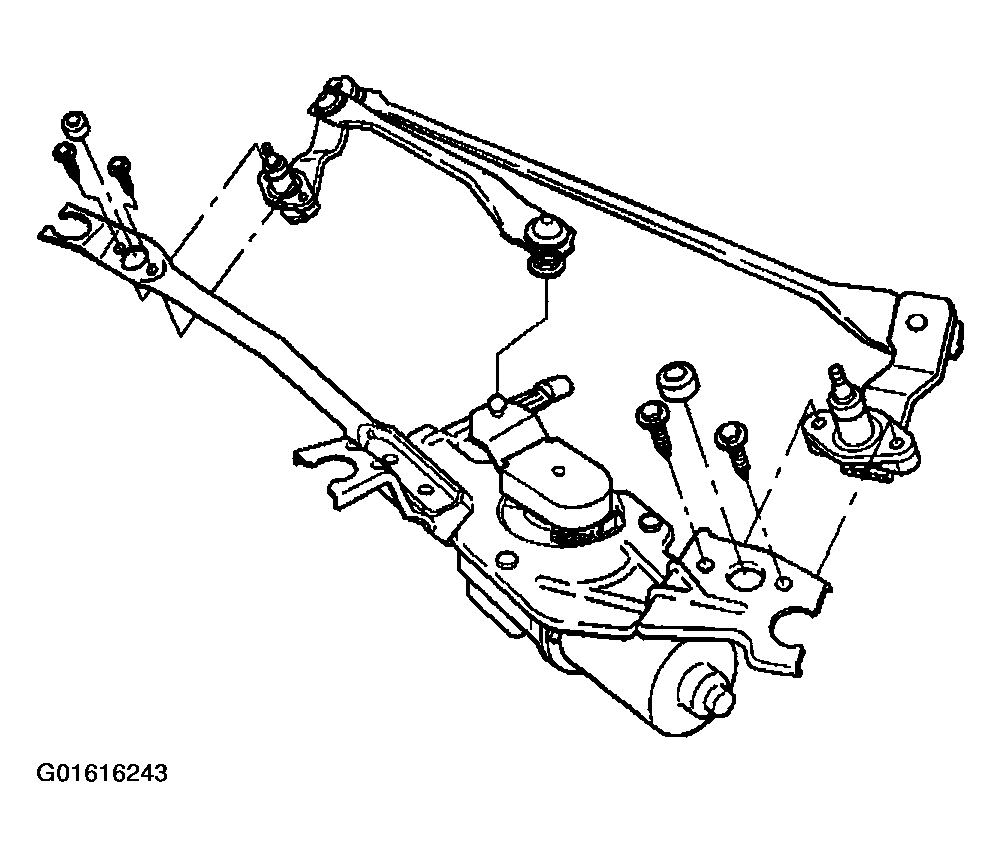

    Fig 1: Wiper Transmission
    G01616243Courtesy of GENERAL MOTORS CORP.
