Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high-mounted stop lamp into position inside the rear fascia.
  2. Loosely install the stop lamp mounting screws.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Align the stop lamp to the rear fascia, then press and hold the lamp to the fascia for flushness.

    Tighten

    Tighten the high-mounted stop lamp retaining screws to 4 N.m (35 lb in).

    Fig 1: Loosely Installing Stop Lamp Mounting Screws
    G01453390Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the stop lamp.
  5. Install the inner tail lamp. Refer to TAIL LAMP REPLACEMENT  .

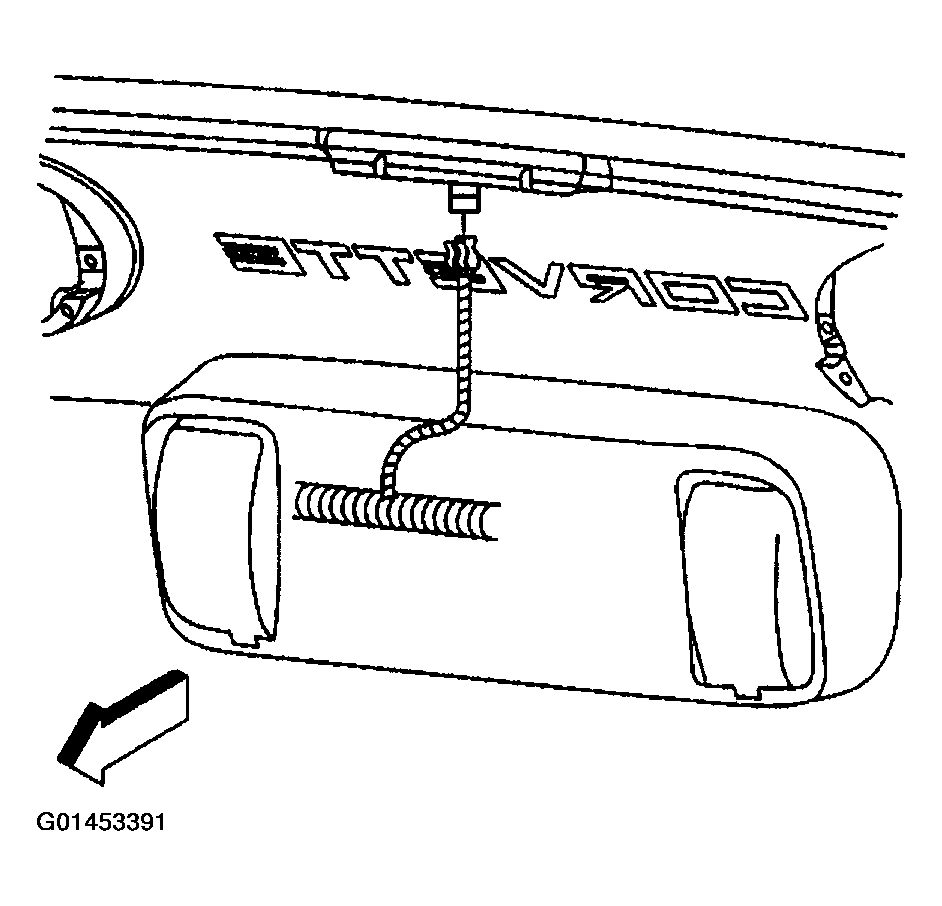

    Fig 2: Connecting Electrical Connector To Stop Lamp
    G01453391Courtesy of GENERAL MOTORS CORP.
