Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the headlamp bulb/socket.
  2. Install the headlamp bulb/socket to the headlamp capsule rotating clockwise until fully seated.
  3. Install the headlamp bezel. Refer to HEADLAMP BEZEL REPLACEMENT .

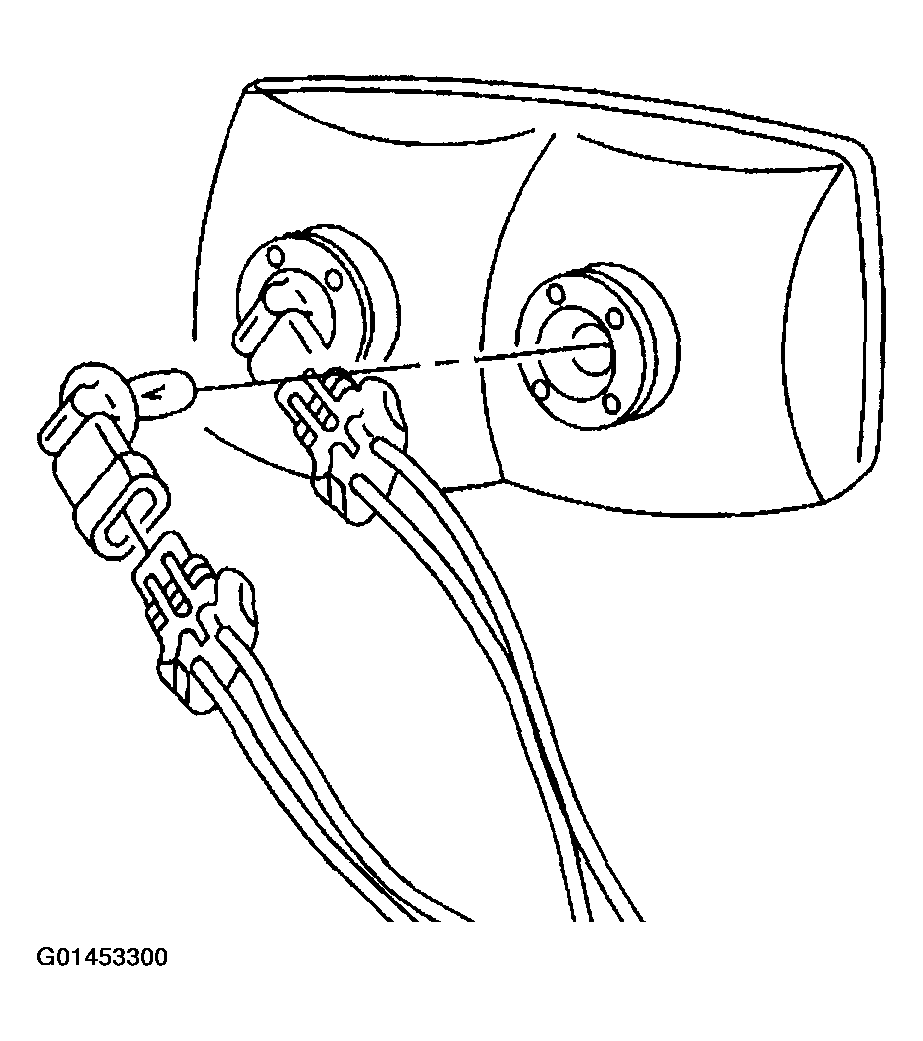

    Fig 1: Connecting Electrical Connector To Headlamp Bulb/Socket
    G01453300Courtesy of GENERAL MOTORS CORP.
  4. Rotate the headlamp motor/actuator manual control knob clockwise to lower the headlamp.
  5. Connect the headlamp wiring harness electrical connector to the forward lamp wiring harness.

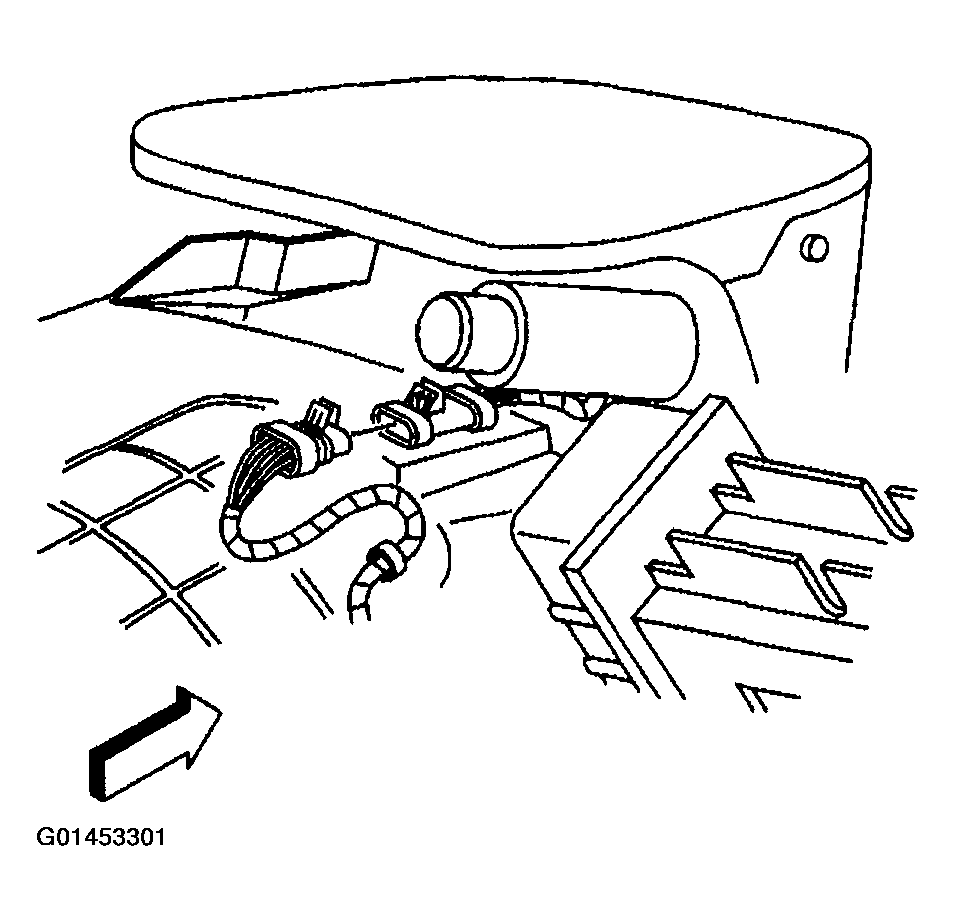

    Fig 2: Connecting Headlamp Wiring Harness Electrical Connector
    G01453301Courtesy of GENERAL MOTORS CORP.
  6. Install the headlamp motor/actuator knob cover.
  7. Check and adjust the headlamp aim as necessary. Refer to HEADLAMP AIMING (VISUAL METHOD)  or HEADLAMP AIMING (EXPORT, LH RULE OF THE ROAD)  or HEADLAMP AIMING (EXPORT, RH RULE OF THE ROAD) .
  8. Close the hood.

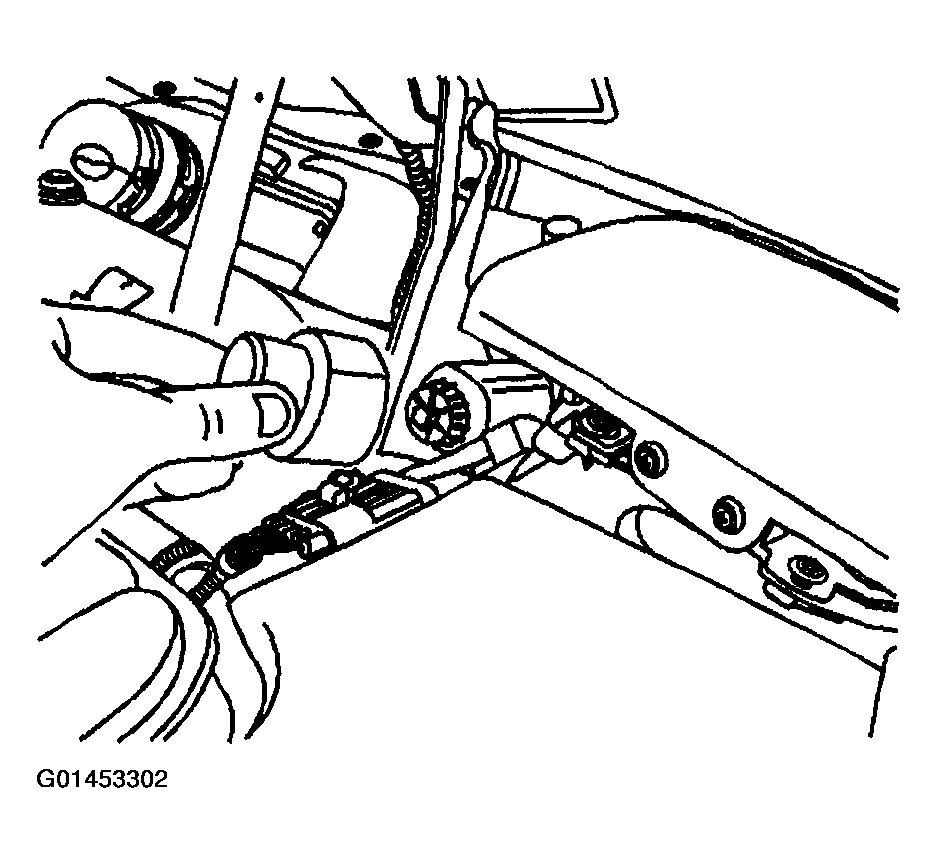

    Fig 3: Headlamp Motor/Actuator Knob Cover
    G01453302Courtesy of GENERAL MOTORS CORP.
