Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp switch.
  2. Install the switch.

    Align the switch to the opening in the trim panel, then push to secure.

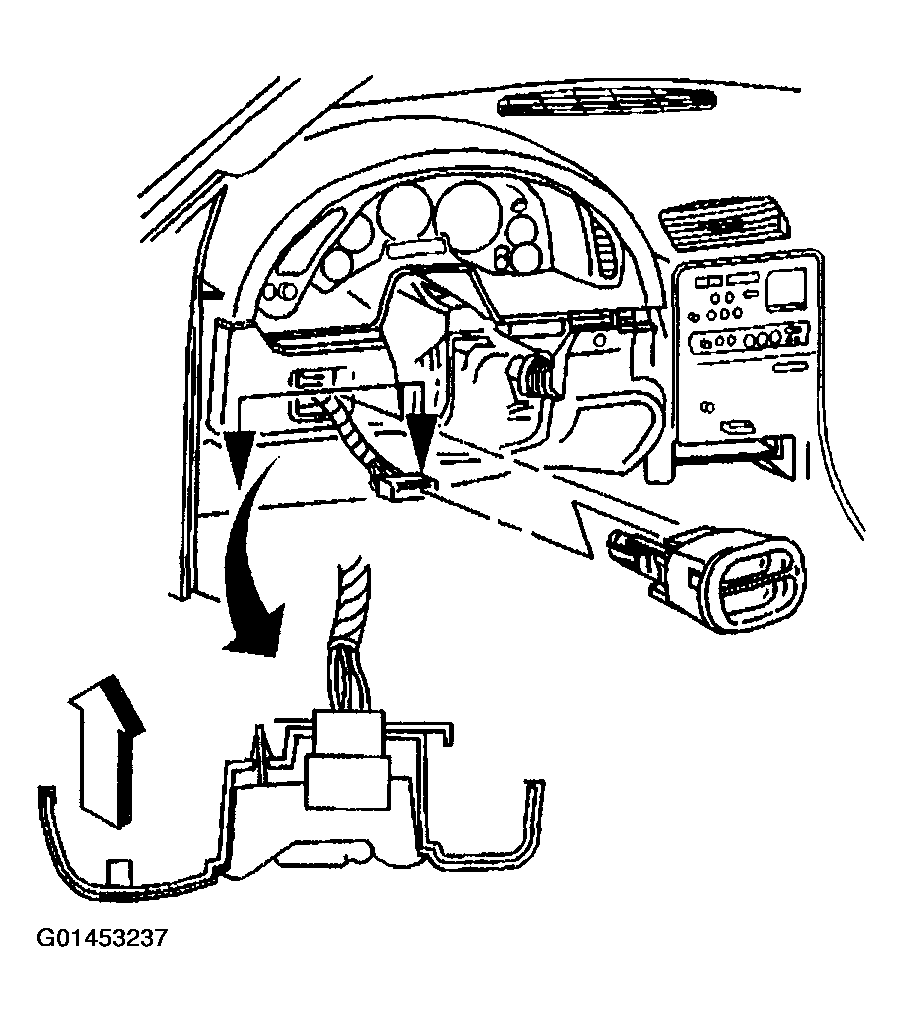

    Fig 1: Connecting Electrical Connector To Switch
    G01453237Courtesy of GENERAL MOTORS CORP.
