Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear license frame.

    Release the locking tabs with a flat-bladed screwdriver.

  2. Remove the rear license plate.
  3. Remove the backup lamp assembly retaining screws.
  4. Partially remove the backup lamp assembly to expose the backup lamp sockets.
  5. Remove the backup lamp sockets from the backup lamp assembly.

    Rotate the sockets counterclockwise to release the locking tabs.

  6. Remove the backup lamp assembly from the vehicle.

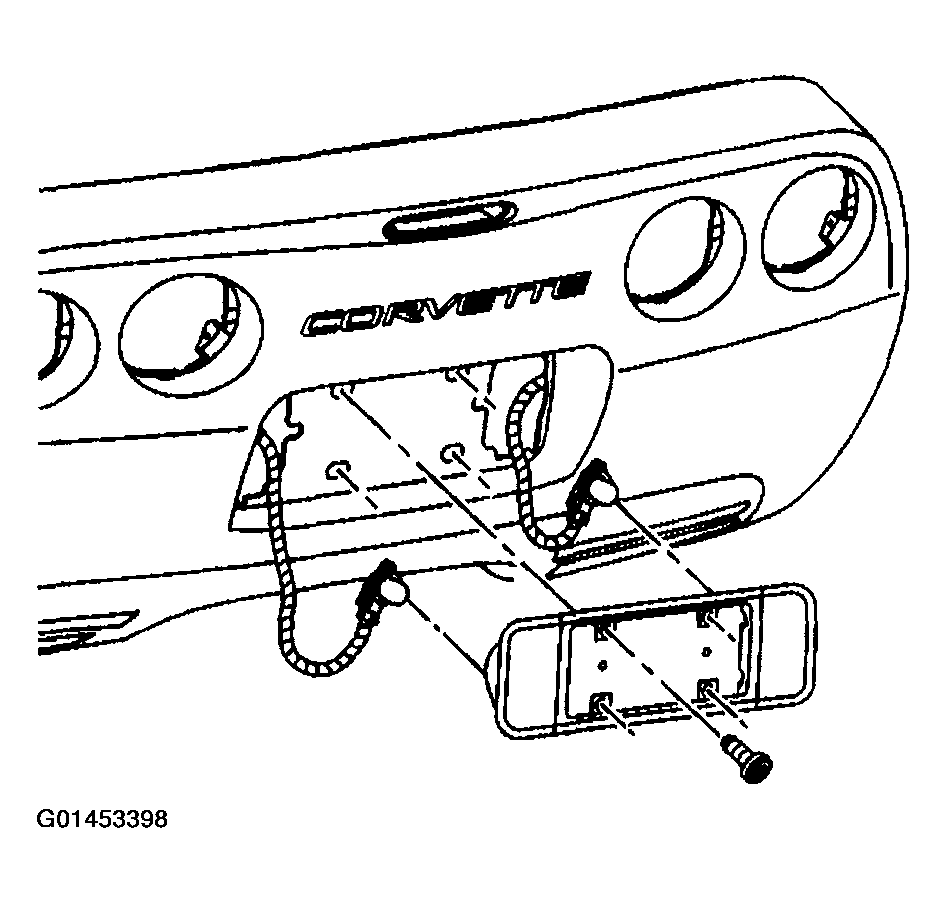

    Fig 1: Removing Backup Lamp Assembly From Vehicle
    G01453398Courtesy of GENERAL MOTORS CORP.
