Installation Procedure

  1. Install the harness to the vehicle.

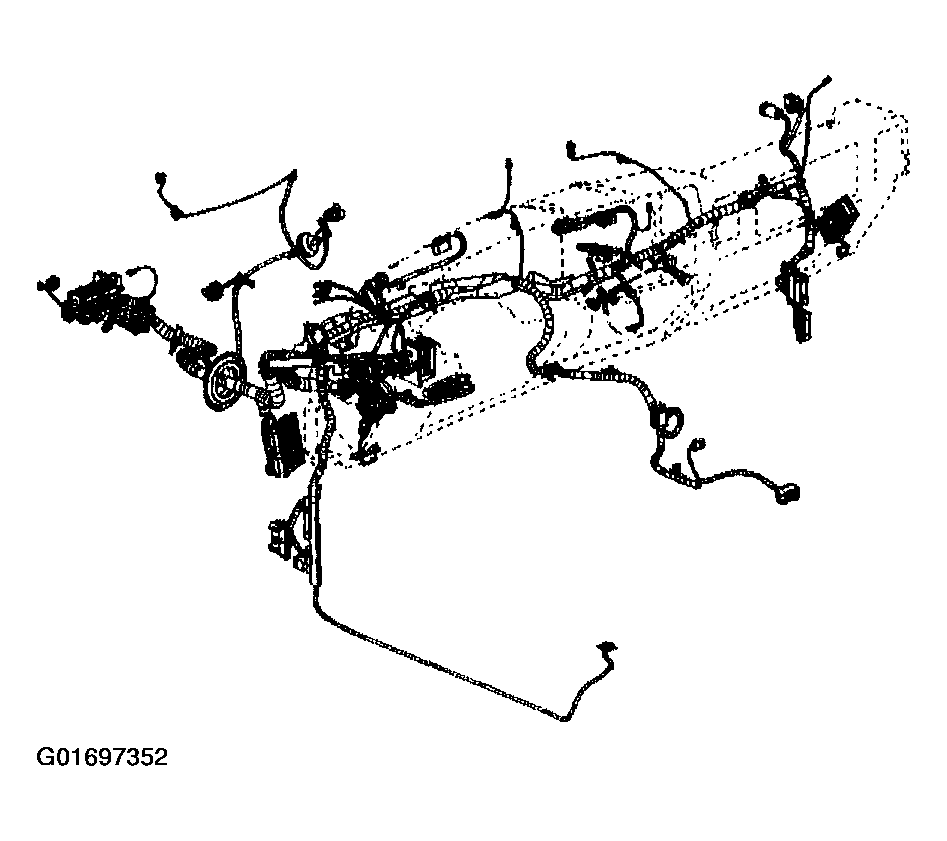

    2. Fig 1: Installing IP Harness/Electrical Connectors
    G01697352Courtesy of GENERAL MOTORS CORP.
  2. Engage the harness mounting clips.
  3. Connect the electrical connectors.
  4. Install the HVAC duct. Refer to Air Distributor Duct Replacement .
  5. Install the instrument panel. Refer to IP Carrier Replacement .
  6. Install the door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT or DOOR SILL PLATE REPLACEMENT - REAR .
  7. Connect the SDM module. Refer to AIR BAG MODULES .
