Installation Procedure

  1. Install the instrument panel assist handle by pushing till it locks into place.

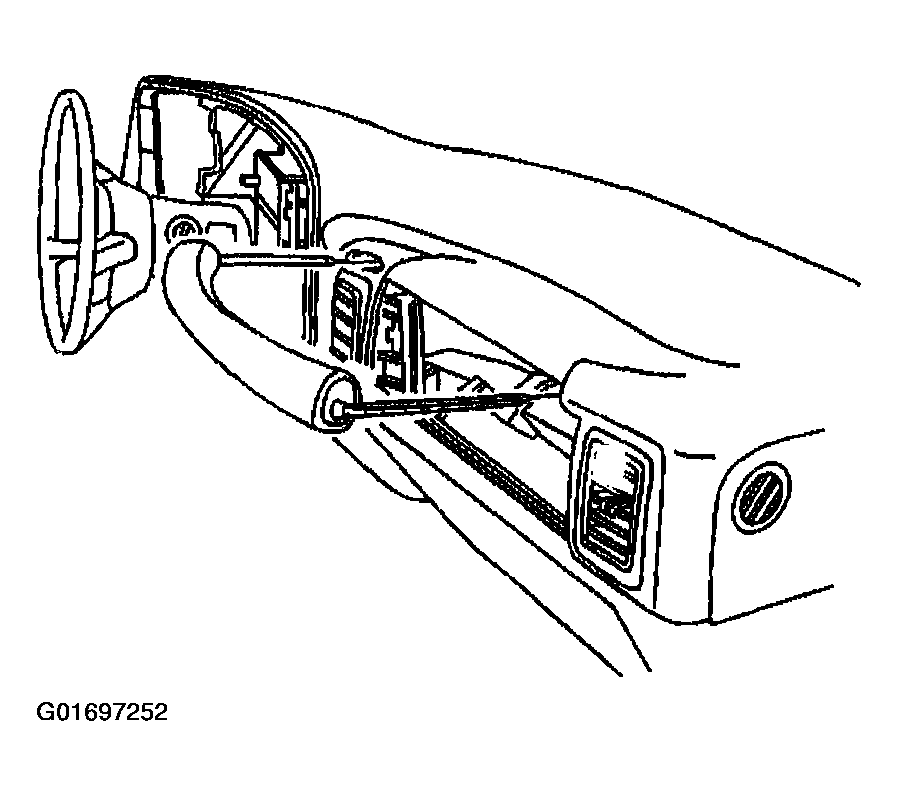

    2. Fig 1: Installing Assist Handle To The Instrument Panel
    G01697252Courtesy of GENERAL MOTORS CORP.
  2. Install both the passenger side air deflector louvers. Refer to Deflector Replacement - Instrument Panel Air - Right Vent .
