Installation Procedure

  1. Connect the electrical connector to the DIC.
  2. Install the DIC in the opening until the unit clicks into place.

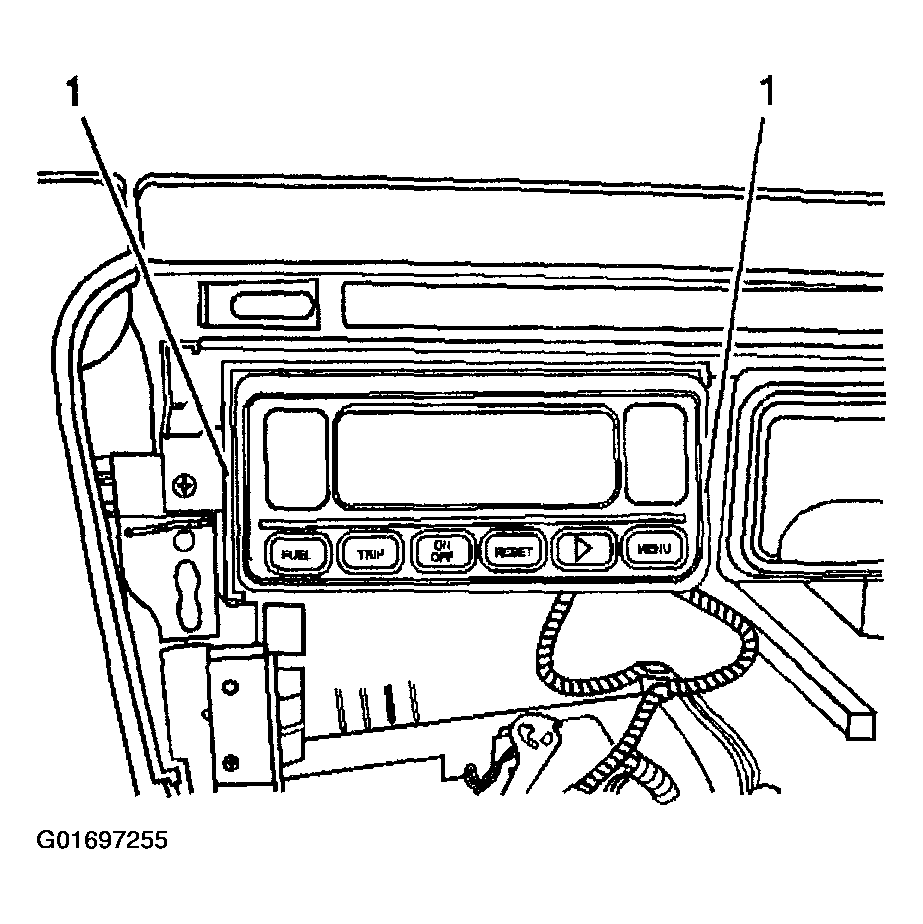

    3. Fig 1: Installing DIC To The Console
    G01697255Courtesy of GENERAL MOTORS CORP.
  3. Align the locating pins (1).
  4. Install the upper bezel by pushing on the bezel until the unit is fully seated.

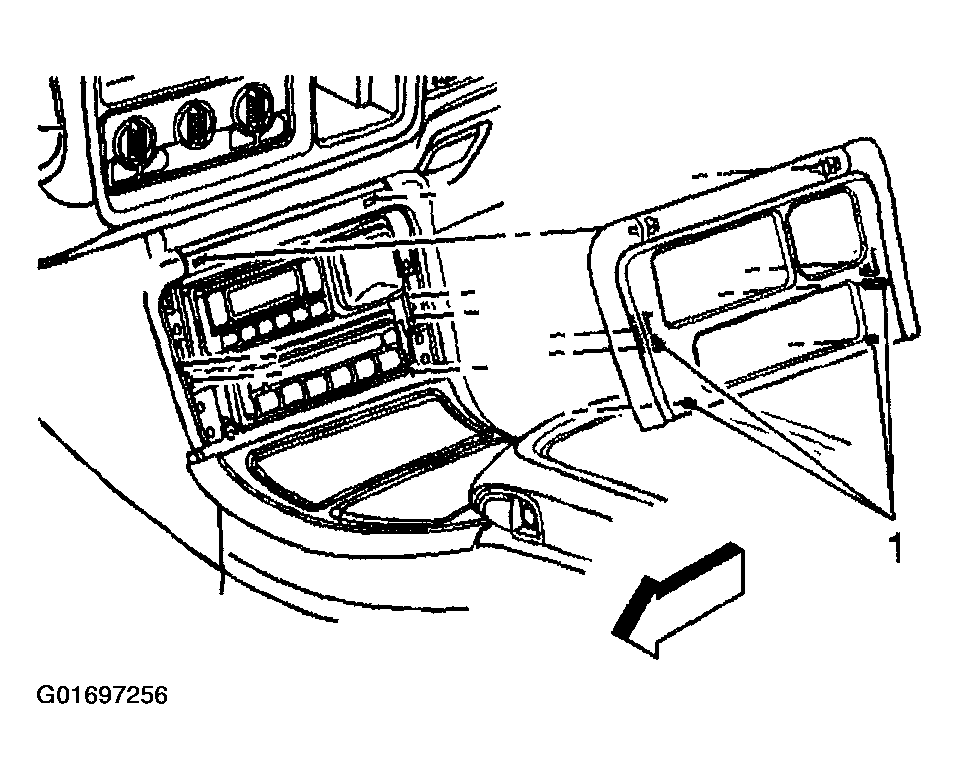

    5. Fig 2: Installing Upper Bezel
    G01697256Courtesy of GENERAL MOTORS CORP.
