Removal Procedure

  1. Open the center console door.
  2. Remove the 4 bolts attaching the center console to the console bracket.
  3. Remove by lifting the center console from the bracket.

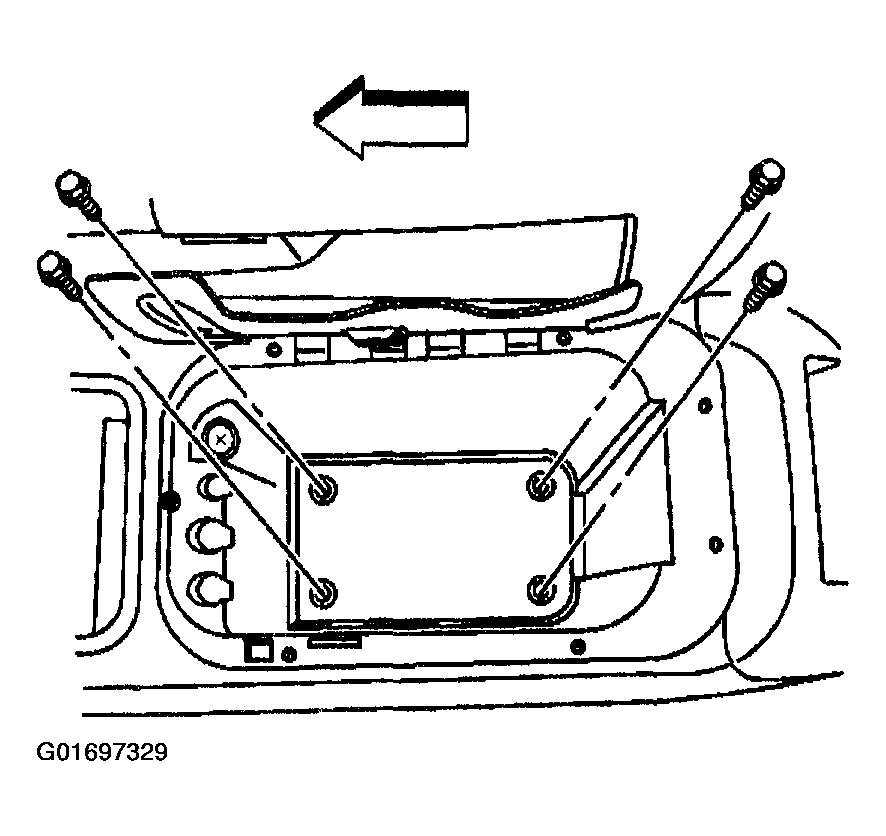

    4. Fig 1: Locating 4 Center Console Retaining Bolts
    G01697329Courtesy of GENERAL MOTORS CORP.
