Installation Procedure

  1. Install the IP compartment door.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the IP compartment retaining screws (1) to the instrument panel. Tighten the screws to 1.9 N.m (17 lbs in).

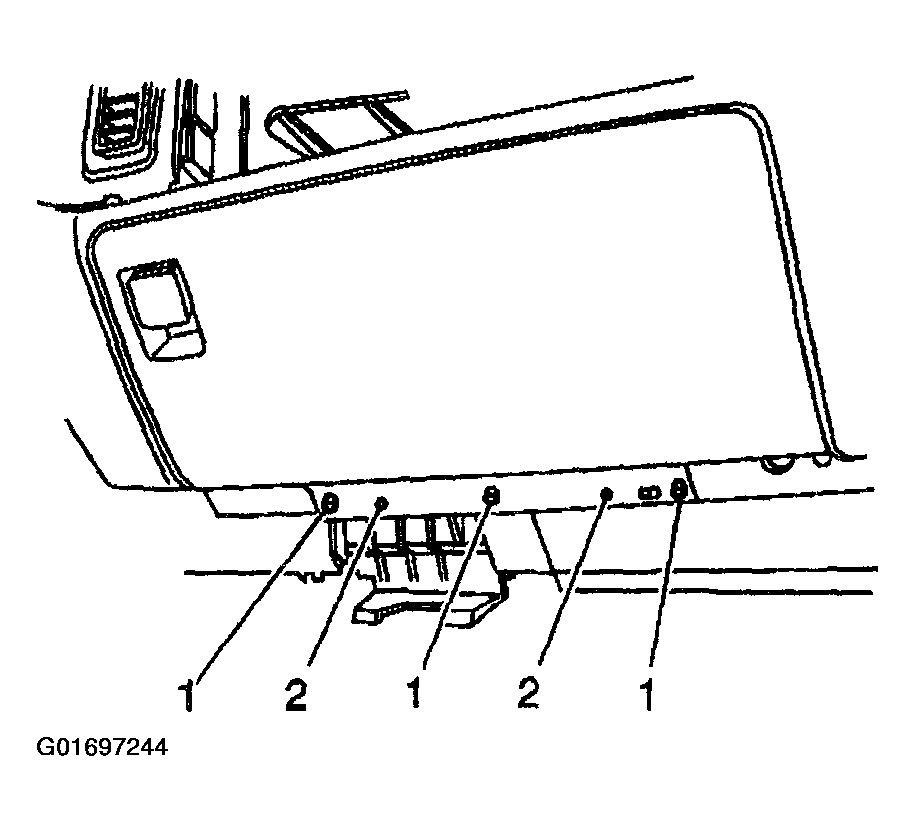

    3. Fig 1: Installation Of IP Storage Compartment Retaining Screws
    G01697244Courtesy of GENERAL MOTORS CORP.
