Installation Procedure

    Fig 1: View of Battery Hold Down Retainer & Bolt
    GM662956Courtesy of GENERAL MOTORS CORP.
  1. Install the battery insulator, if necessary.
  2. Install the auxiliary battery.
    NOTE: Refer to FASTENER NOTICE .
  3. Install battery hold down retainer and bolt.

    Tighten:  Tighten the battery hold down retainer bolt to 25 N.m (18 lb ft).

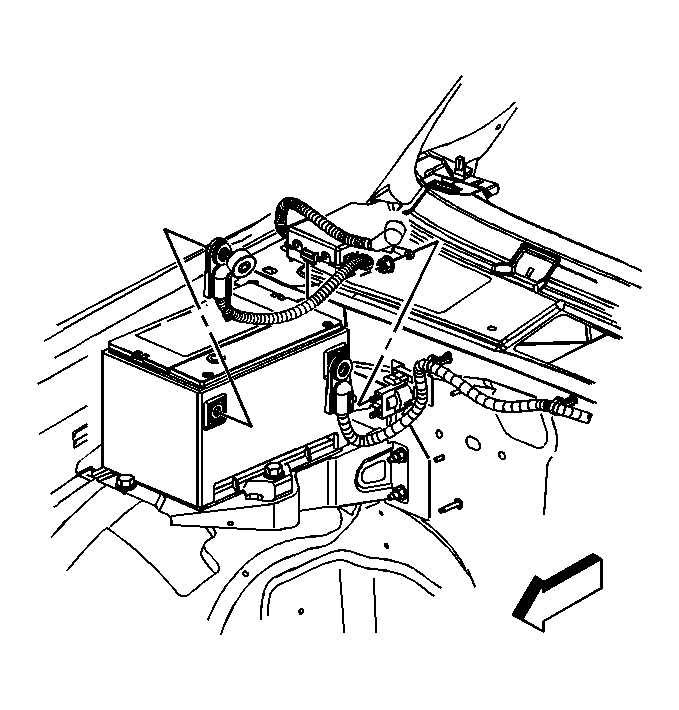

    4. Fig 2: Auxiliary Battery
    GM662692Courtesy of GENERAL MOTORS CORP.
  4. Connect the auxiliary positive battery cable.

    Tighten:  Tighten the auxiliary positive battery cable bolt to 17 N.m (13 lb ft).

  5. Snap the auxiliary positive battery cable cap closed.
    6. Fig 3: View of Battery Ground Negative Cable
    GM662415Courtesy of GENERAL MOTORS CORP.
  6. Connect the auxiliary negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
