Installation Procedure

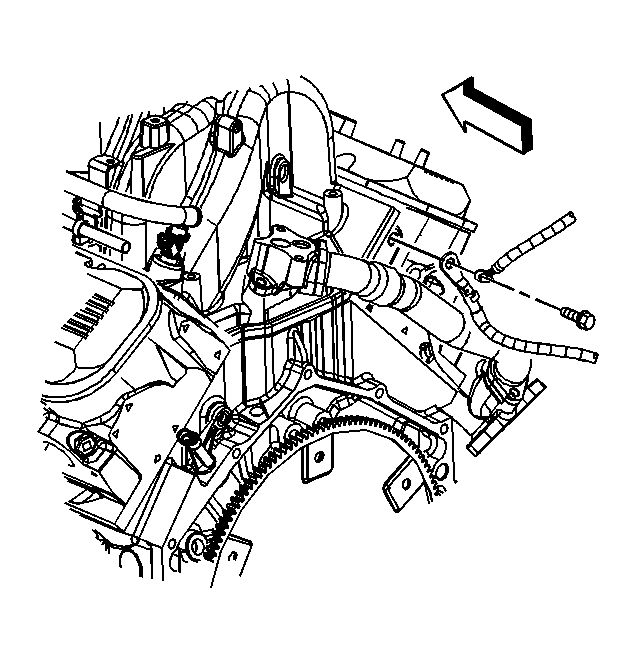

    Fig 1: View of Engine Wiring Harness/Auxiliary Negative Battery Cable Bolt (8.1L Engine)
    GM759633Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install the auxiliary negative battery cable terminal behind the engine wiring harness ground terminal.
    NOTE: Refer to FASTENER NOTICE .
  1. If equipped with a 8.1L engine, install the auxiliary negative battery cable.
  2. Install the engine wiring harness/auxiliary negative battery cable bolt.

    Tighten:  Tighten the engine wiring harness/auxiliary negative battery cable bolt to 16 N.m (12 lb ft).

    3. Fig 2: View of Engine Wiring Harness/Auxiliary Negative Battery Cable Bolt (4.8L, 5.2L, or 6.0L Engine)
    GM662418Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install the engine wiring harness ground terminal on top of and inboard of the auxiliary negative battery cable ground crimp.
  3. If equipped with a 4.8L, 5.3L, or 6.0L engine, install the auxiliary negative battery cable.
  4. Install the engine wiring harness/auxiliary negative battery cable bolt.

    Tighten:  Tighten the engine wiring harness/auxiliary negative battery cable bolt to 16 N.m (12 lb ft).

  5. Install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (LQ9)) .
    6. Fig 3: View of Battery Ground Negative Cable
    GM662415Courtesy of GENERAL MOTORS CORP.
  6. Install the auxiliary battery cable clips to the studs at the front of dash.
  7. Connect the auxiliary negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
