Scan Tool Output Controls

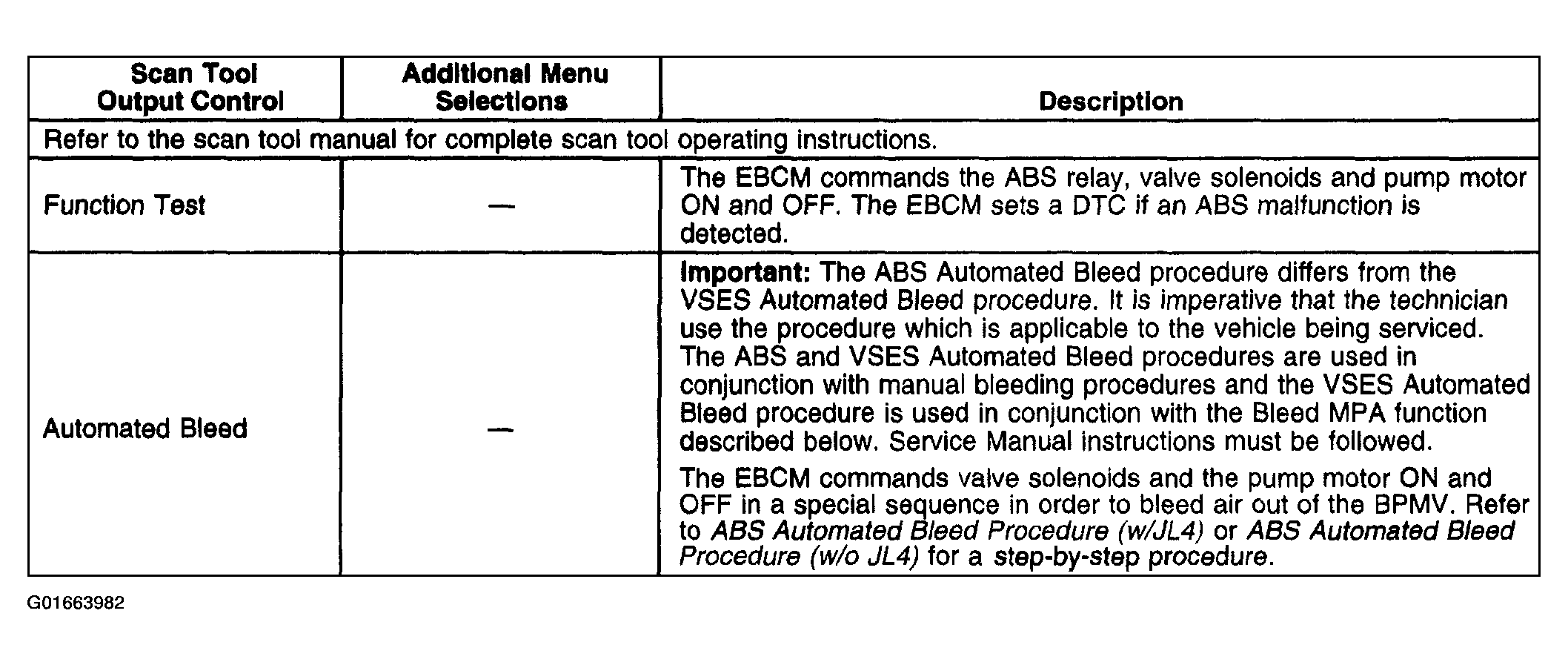

Fig 1: Scan Tool Output Controls (1 Of 2)

G01663982

Courtesy of GENERAL MOTORS CORP.

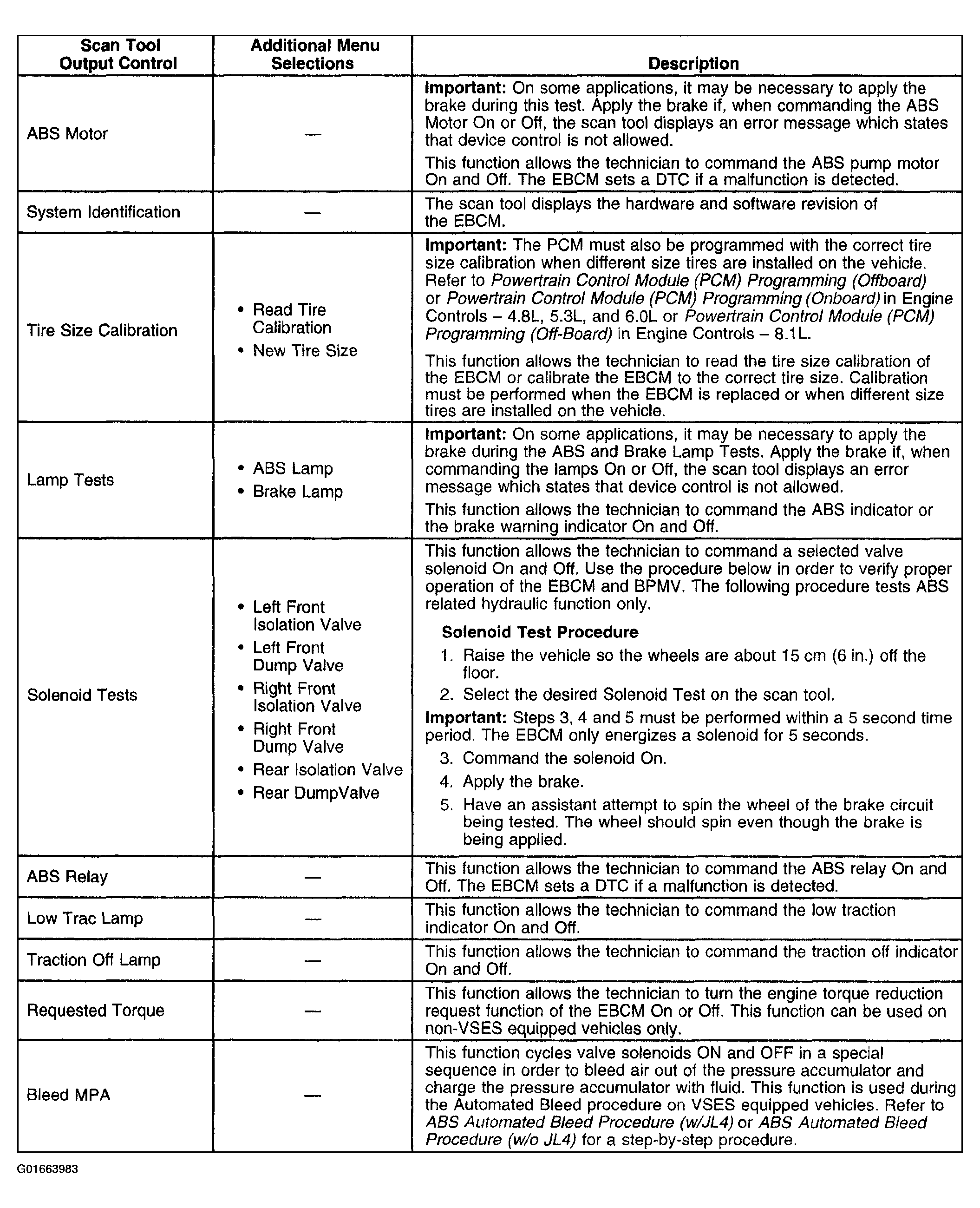

Fig 2: Scan Tool Output Controls (2 Of 2)

G01663983

Courtesy of GENERAL MOTORS CORP.
