Door Lock/Indicator Schematics

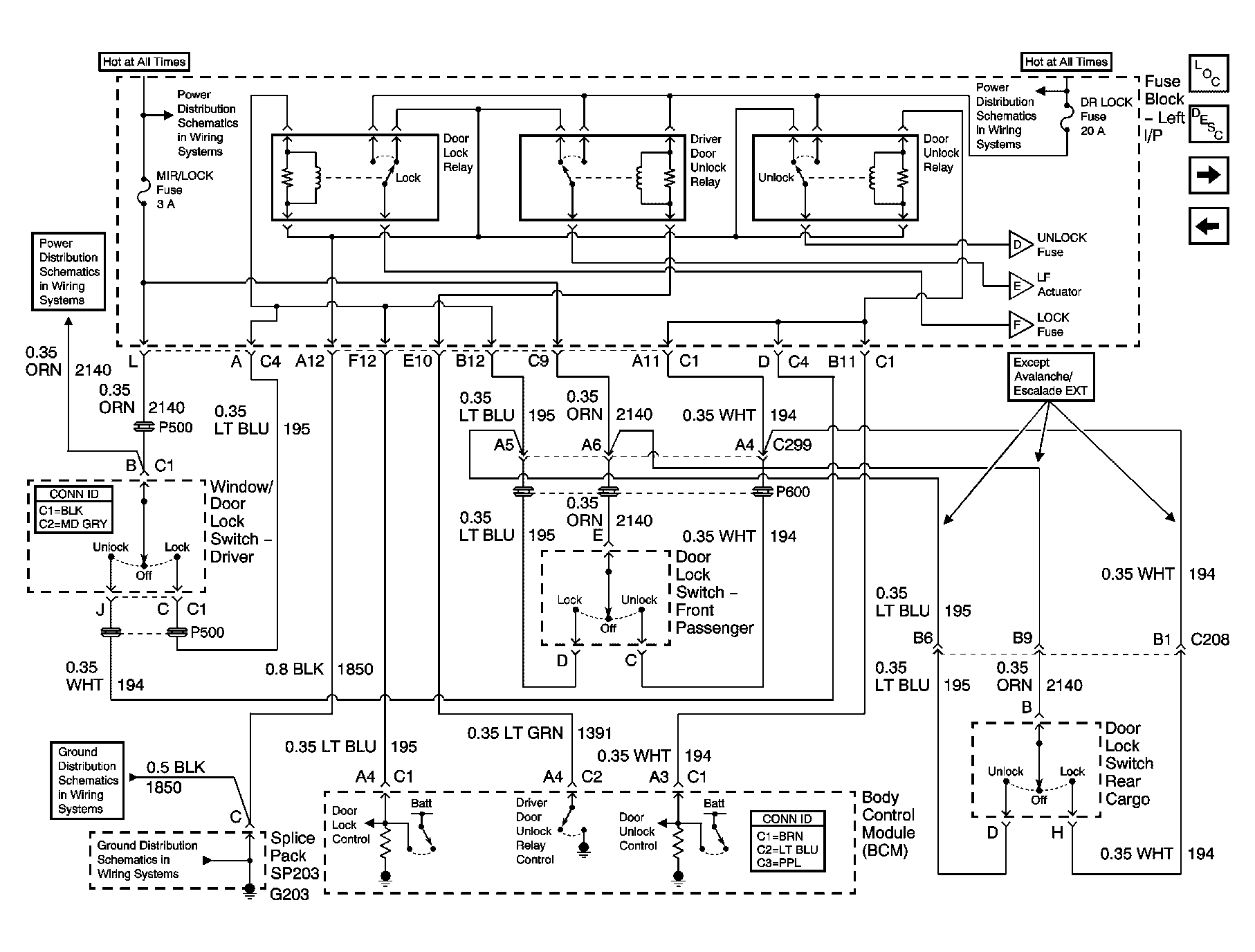

Fig 1: Power, Ground, and Switches - Base Schematic

Courtesy of GENERAL MOTORS CORP.

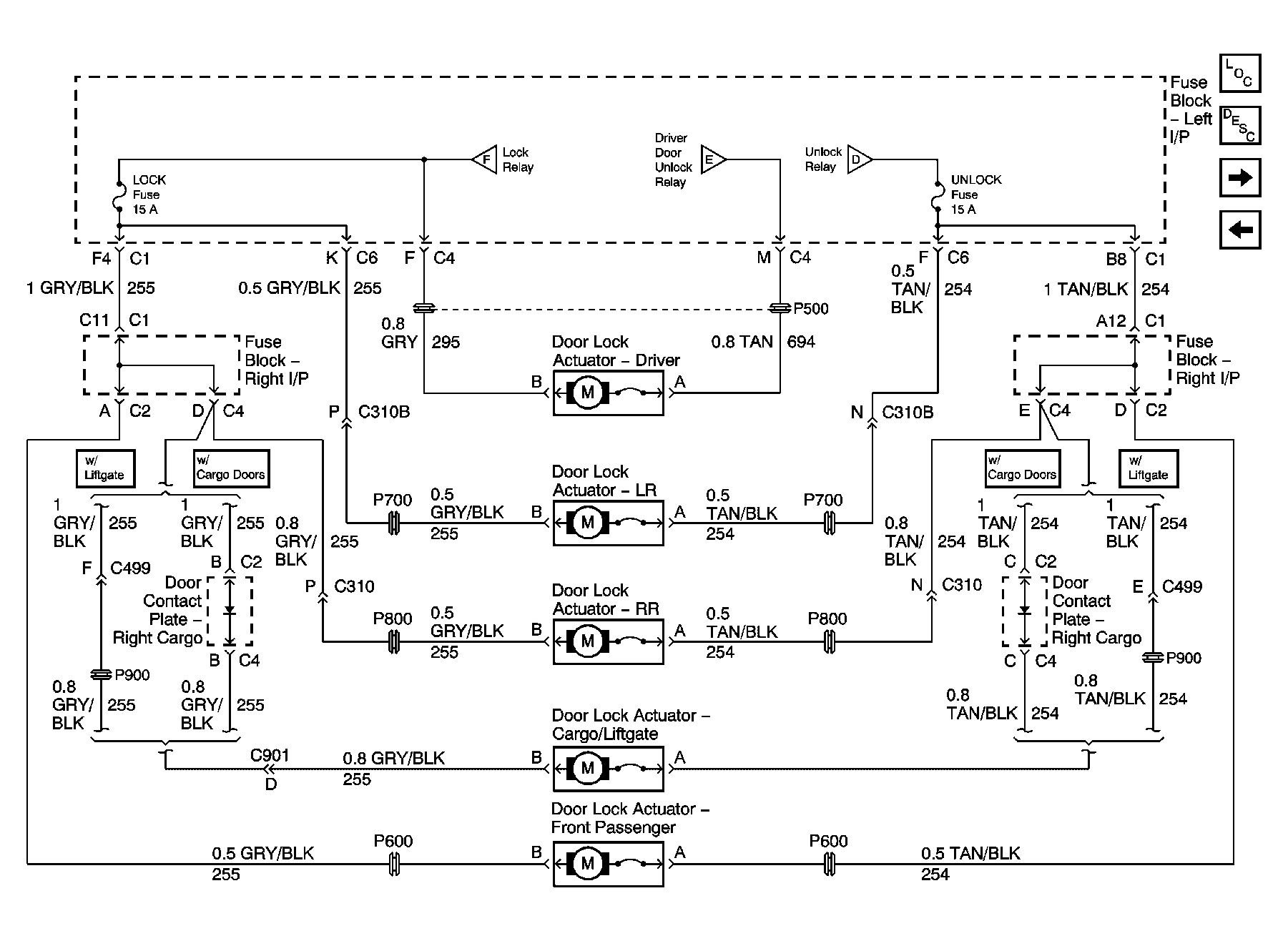

Fig 2: Actuators - Base Schematic

Courtesy of GENERAL MOTORS CORP.

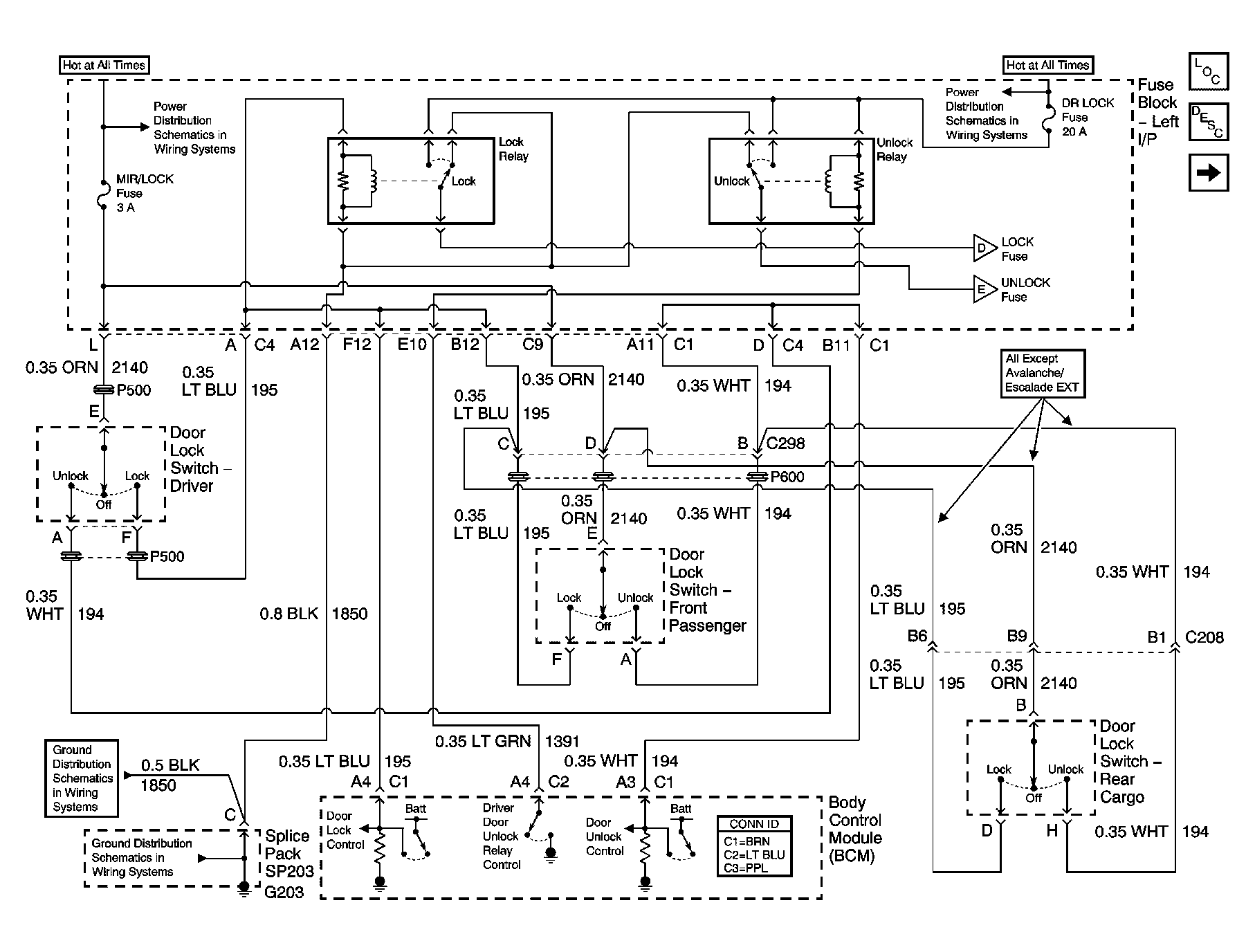

Fig 3: Power, Ground, and Switches - YE9 and Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

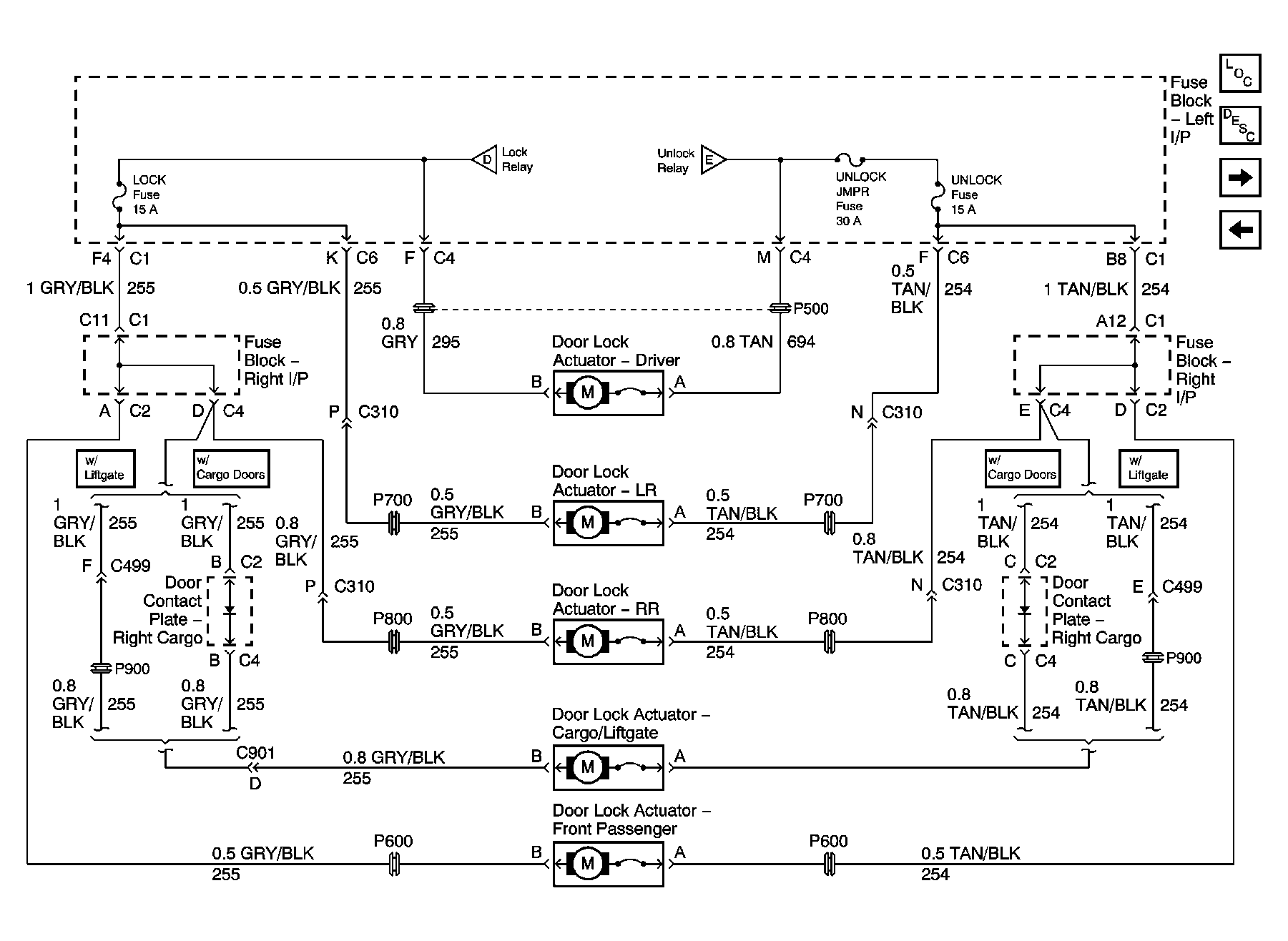

Fig 4: Actuators - YE9 and Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: BCM Controls Schematic

Courtesy of GENERAL MOTORS CORP.
