Installation Procedure

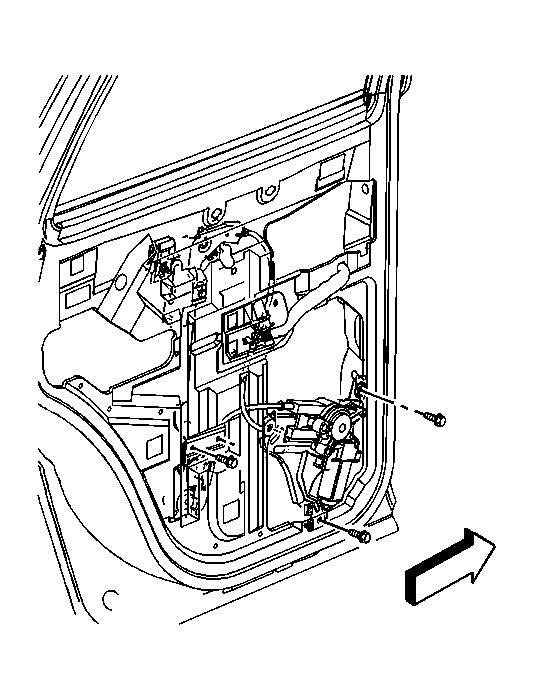

    Fig 1: Rear Power Window Module (Tahoe/Yukon/Escalade)
    GM581720Courtesy of GENERAL MOTORS CORP.
  1. Install the module to the door.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts retaining the regulator to the door.

    Tighten:  Tighten the bolts to 9 N.m (7 lb ft).

  3. Align the window to the regulator, and tighten the clamp bolts.

    Tighten:  Tighten the clamp bolts to 9 N.m (7 lb ft).

  4. Connect the window motor electrical connector.
  5. Install the water deflector. Refer to Water Deflector Replacement - Rear Door (Tahoe/Yukon/Escalade)  or Water Deflector Replacement - Rear Door (Suburban/Yukon XL/Avalanche/Escld EXT) .
  6. Install the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Tahoe/Yukon/Escalade)  or Trim Panel Replacement - Side Rear Door (Suburban/Yukon XL/Avalanche/Escld EXT) .
