Traction Control Switch Connector End View

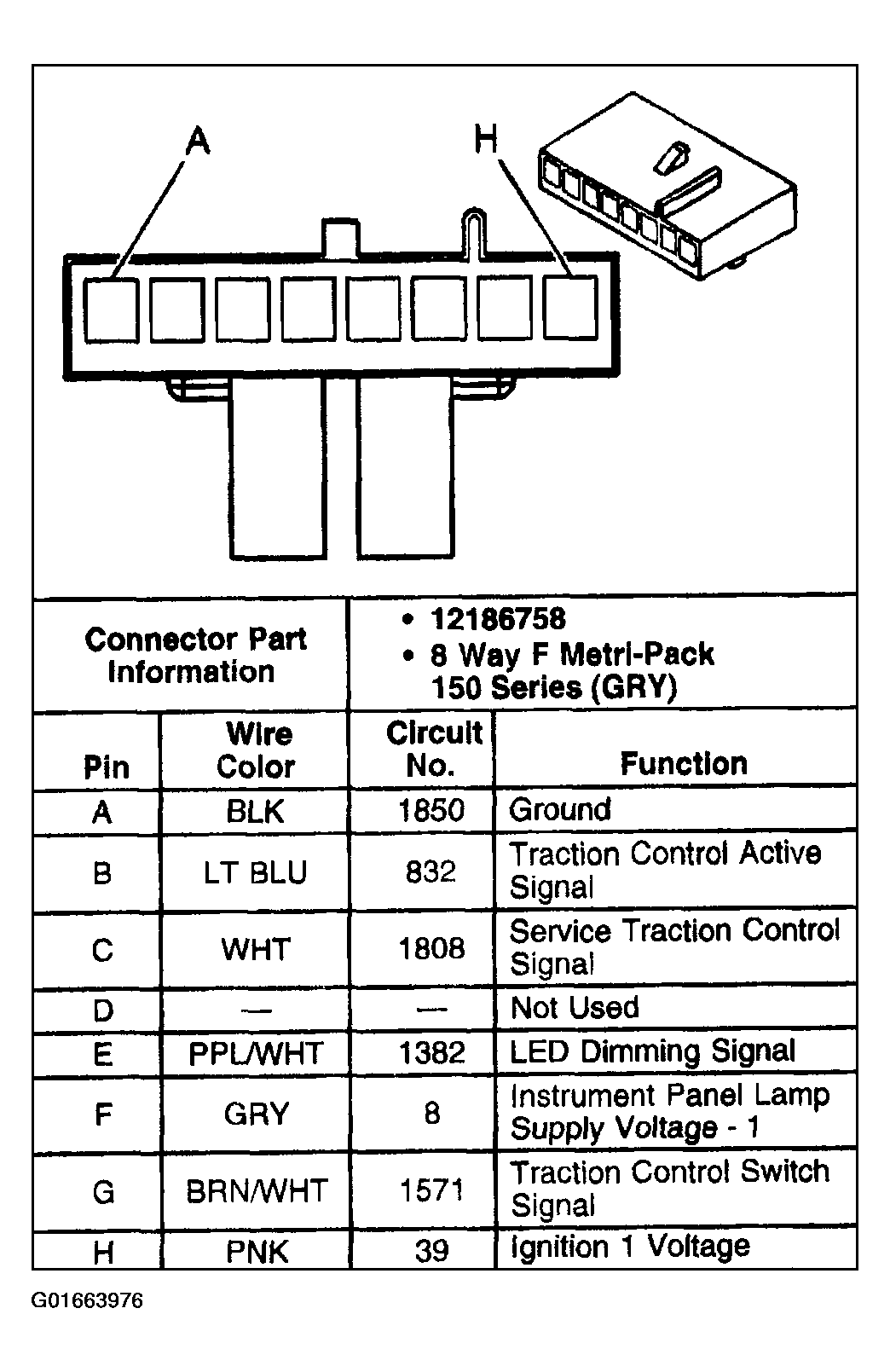

Fig 1: Traction Control Switch Connector End View

G01663976

Courtesy of GENERAL MOTORS CORP.
