Identifying Transfer Case Shift Control Module Connector End View C1 (2 Of 2)

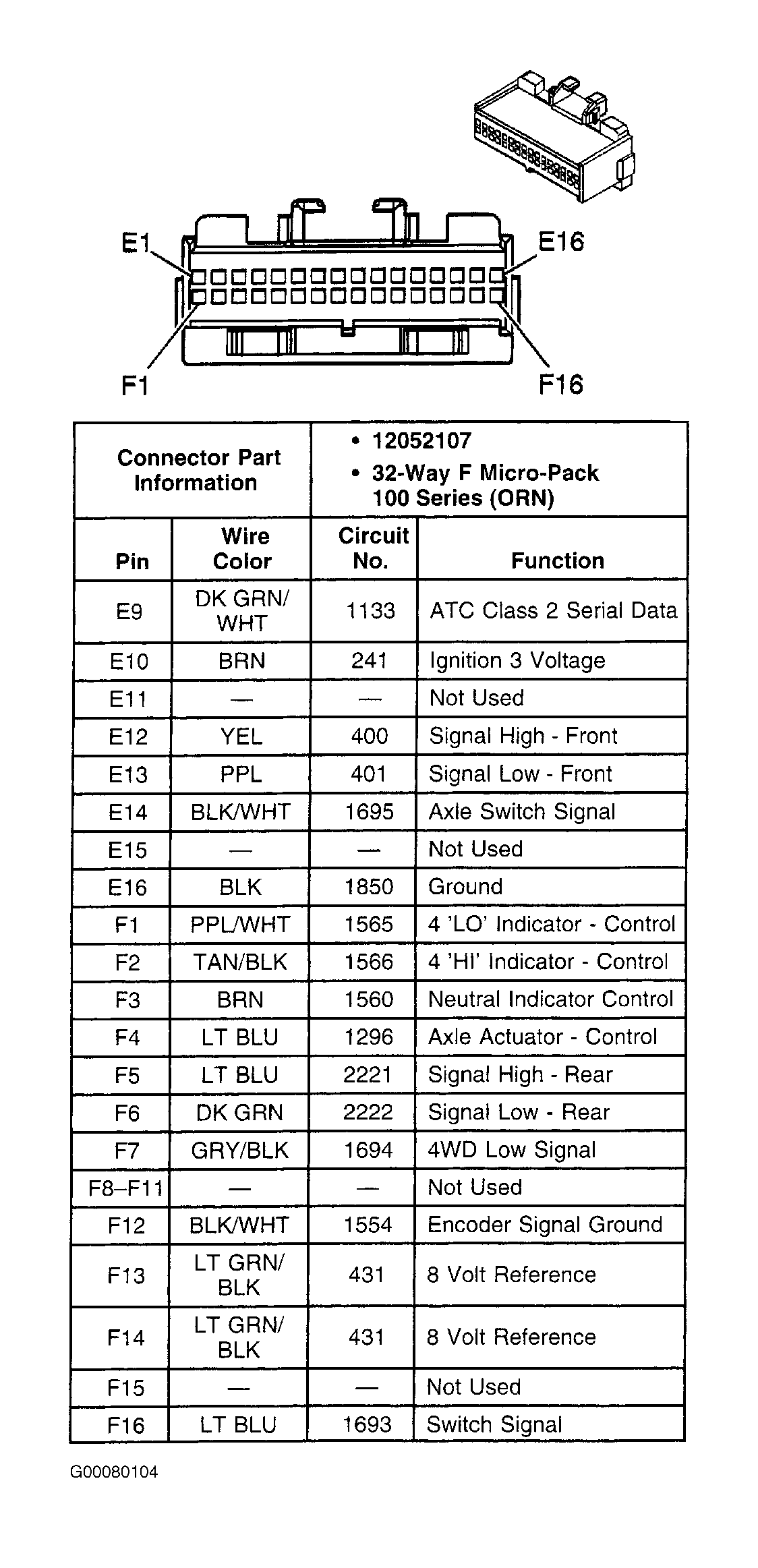

Fig 1: Identifying Transfer Case Shift Control Module Connector End View C1 (2 Of 2)
G00080104Courtesy of GENERAL MOTORS CORP.
