Identifying TAC Module Connector End View C1 ("G" Series)

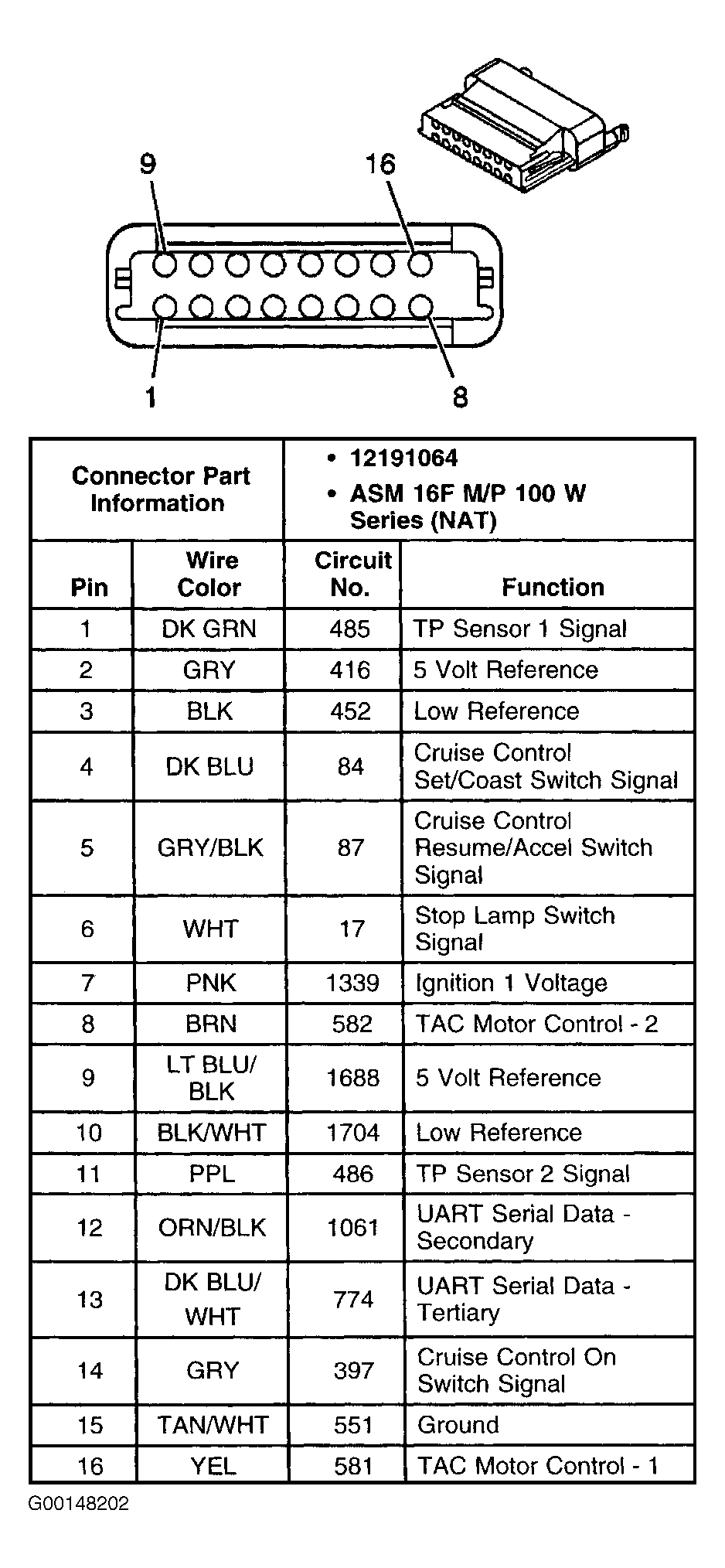

Fig 1: Identifying TAC Module Connector End View C1 ("G" Series)

G00148202

Courtesy of GENERAL MOTORS CORP.
