Identifying Front Auxiliary HVAC Control Assembly (A/C Only) Harness Connector End View

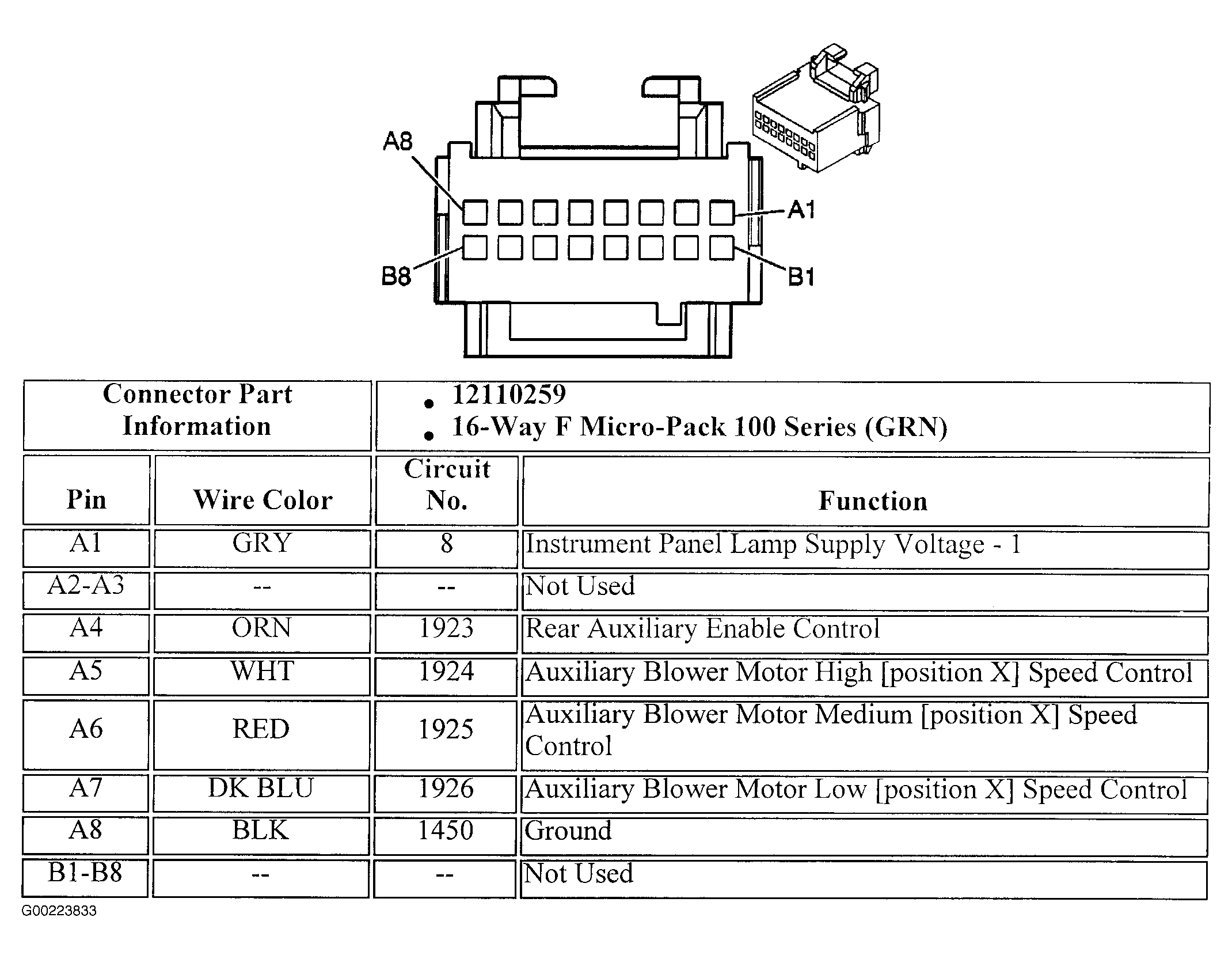

Fig 1: Identifying Front Auxiliary HVAC Control Assembly (A/C Only) Harness Connector End View
G00223833Courtesy of GENERAL MOTORS CORP.
