Identifying ECT Sensor Connector End View

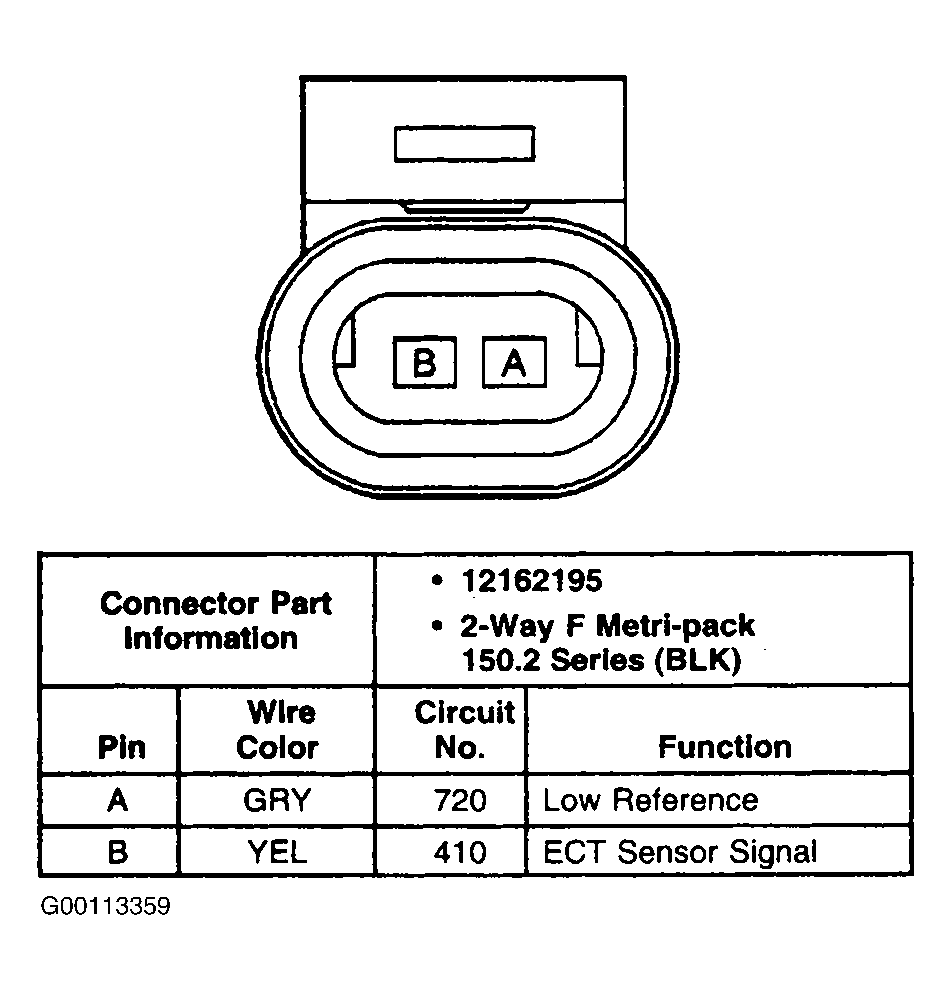

Fig 1: Identifying ECT Sensor Connector End View

G00113359

Courtesy of GENERAL MOTORS CORP.
