Electronic Brake Control Module (EBCM) Connector End View - C1 - W/VSES

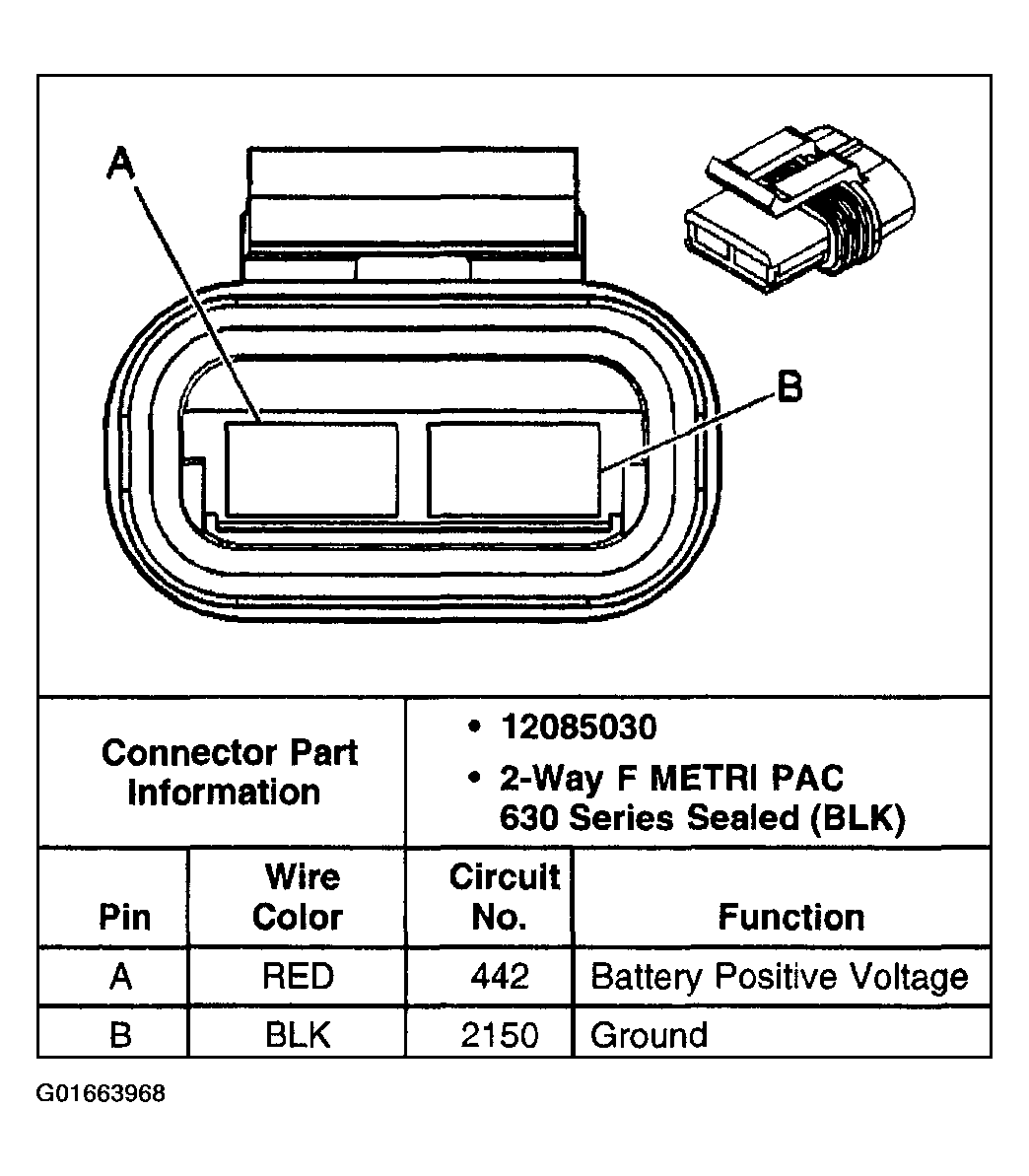

Fig 1: Electronic Brake Control Module (EBCM) Connector End View - C1 - W/VSES

G01663968

Courtesy of GENERAL MOTORS CORP.
