Courtesy Lamp Module Connector End View - Luxury

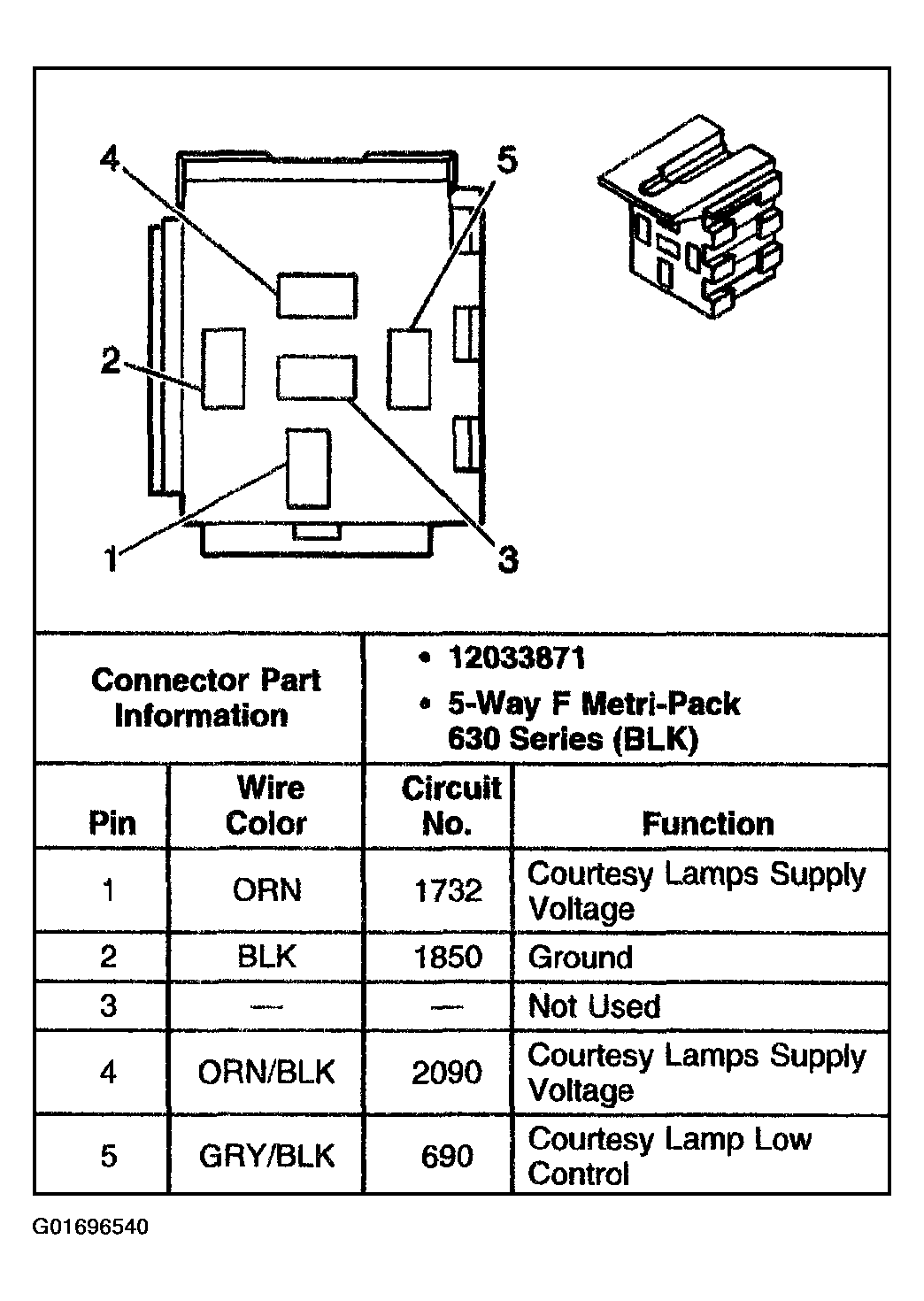

Fig 1: Courtesy Lamp Module Connector End View - Luxury

G01696540

Courtesy of GENERAL MOTORS CORP.
