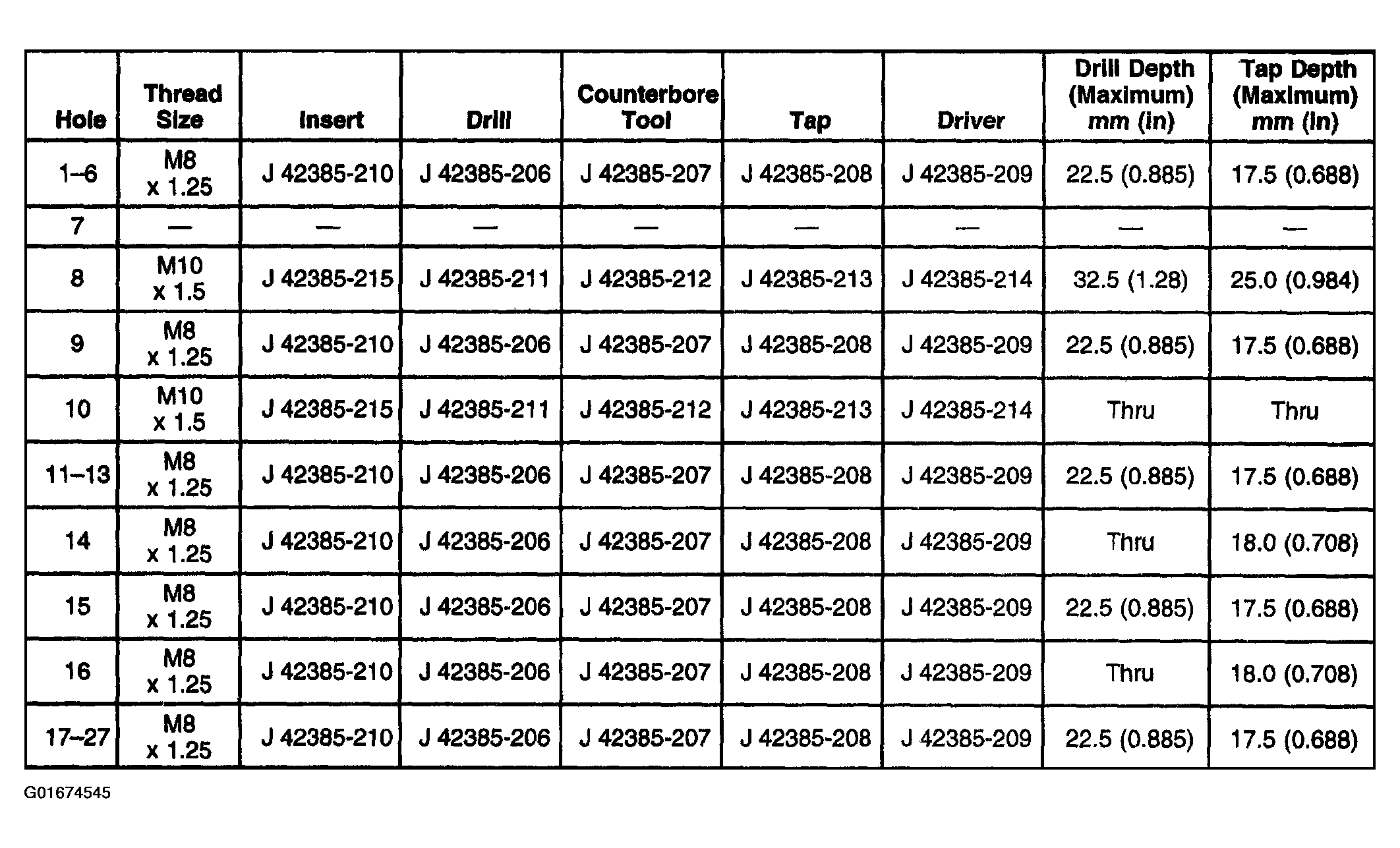

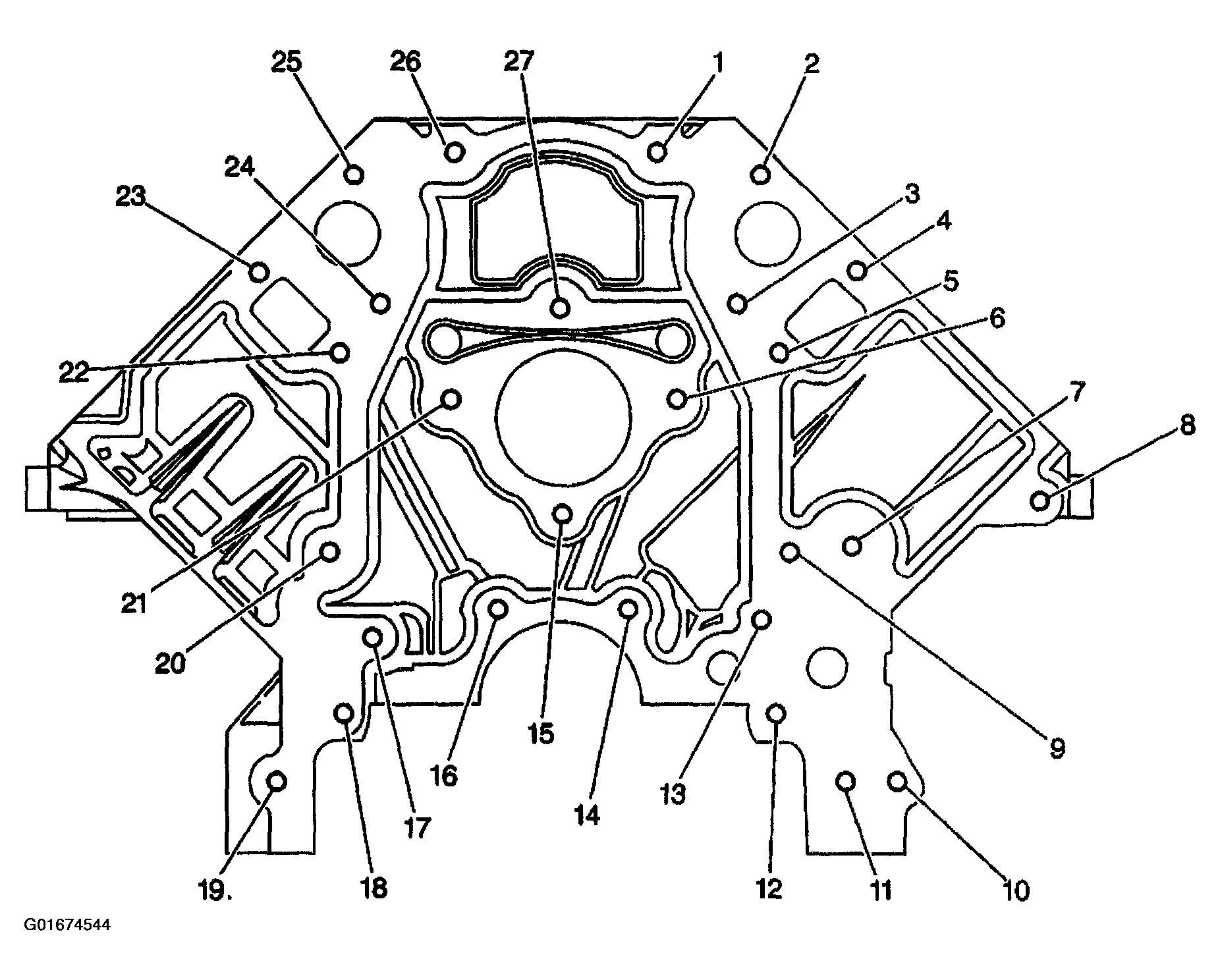

Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Engine Mechanical - 4.8L, 5.3L, & 6.0L (Unit Repair) >> Specifications >> Thread Repair Specifications >> Engine Block-Front View
