Identifying APP Sensor Connector End View

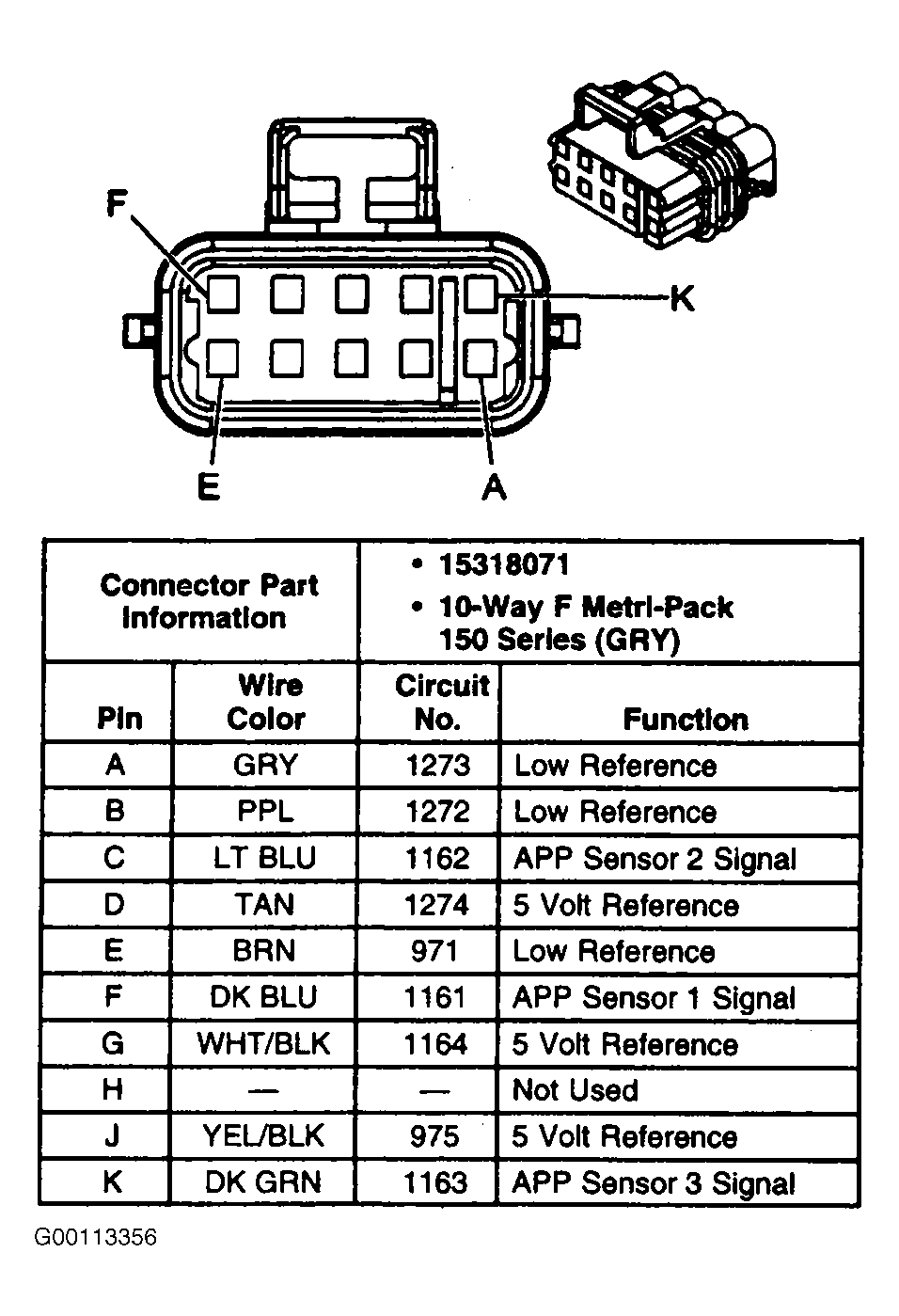

Fig 1: Identifying APP Sensor Connector End View

G00113356

Courtesy of GENERAL MOTORS CORP.
