Installation Procedure

  1. Partially install the driver information display switch.
  2. Connect the electrical connector (1).
  3. Install the driver information display switch (2) to the console opening.

    Push the driver information display switch in until you hear a click.

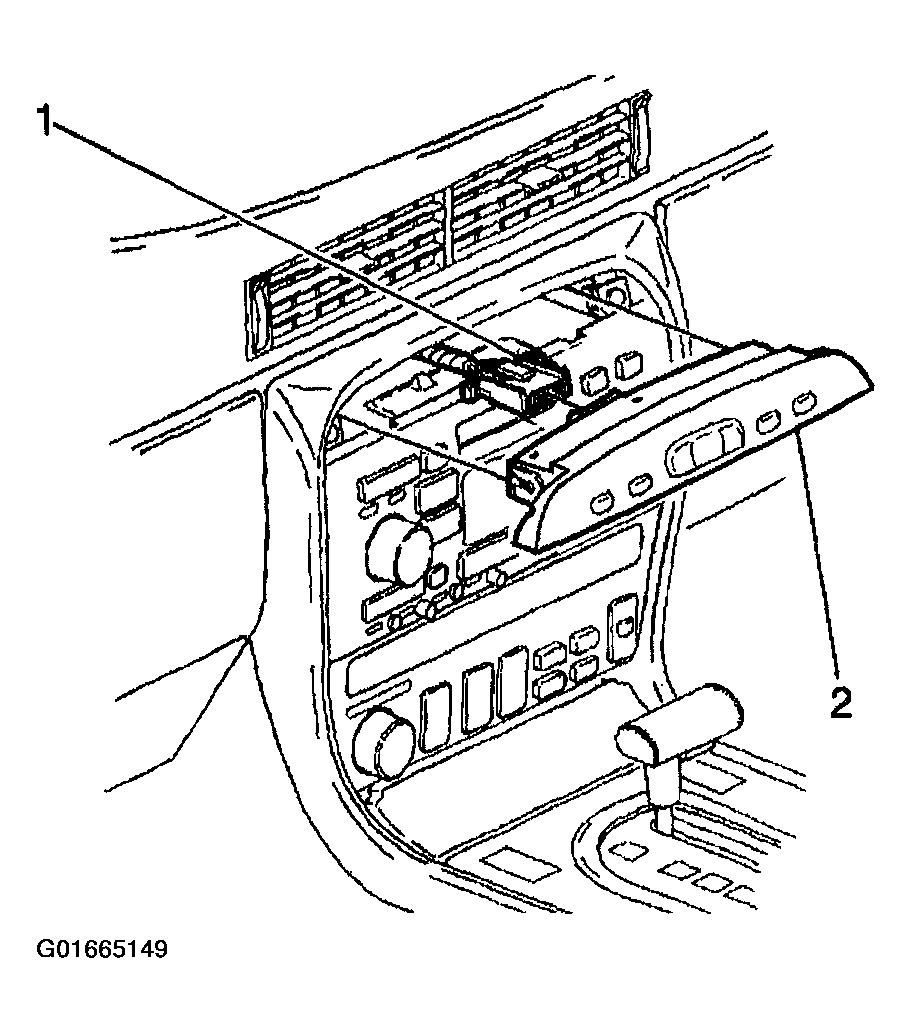

    Fig 1: Identifying Driver Information Display Switch & Electrical Connector
    G01665149Courtesy of GENERAL MOTORS CORP.
