Installation Procedure

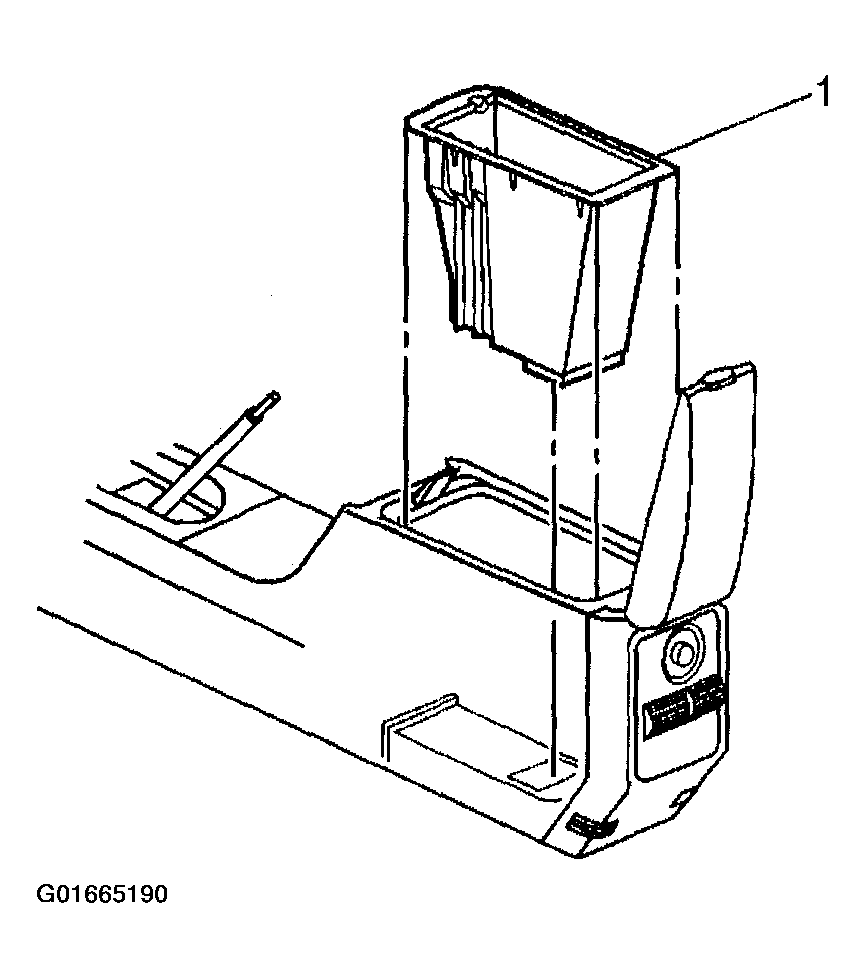

- Position the compartment (1) over the console.
Important: The storage compartment must be fully seated into position by hand pressure. Dropping the console armrest onto a unseated compartment can cause damage to the armrest. Make certain air outlet block out cover on the bottom of the compartment is positioned in hole in air duct.
- Slide the compartment (1) into place.
When a audible click is heard the compartment is fully seated.
- Reposition the armrest to the downward position.
