Retained Accessory Power (RAP) Connector End Views

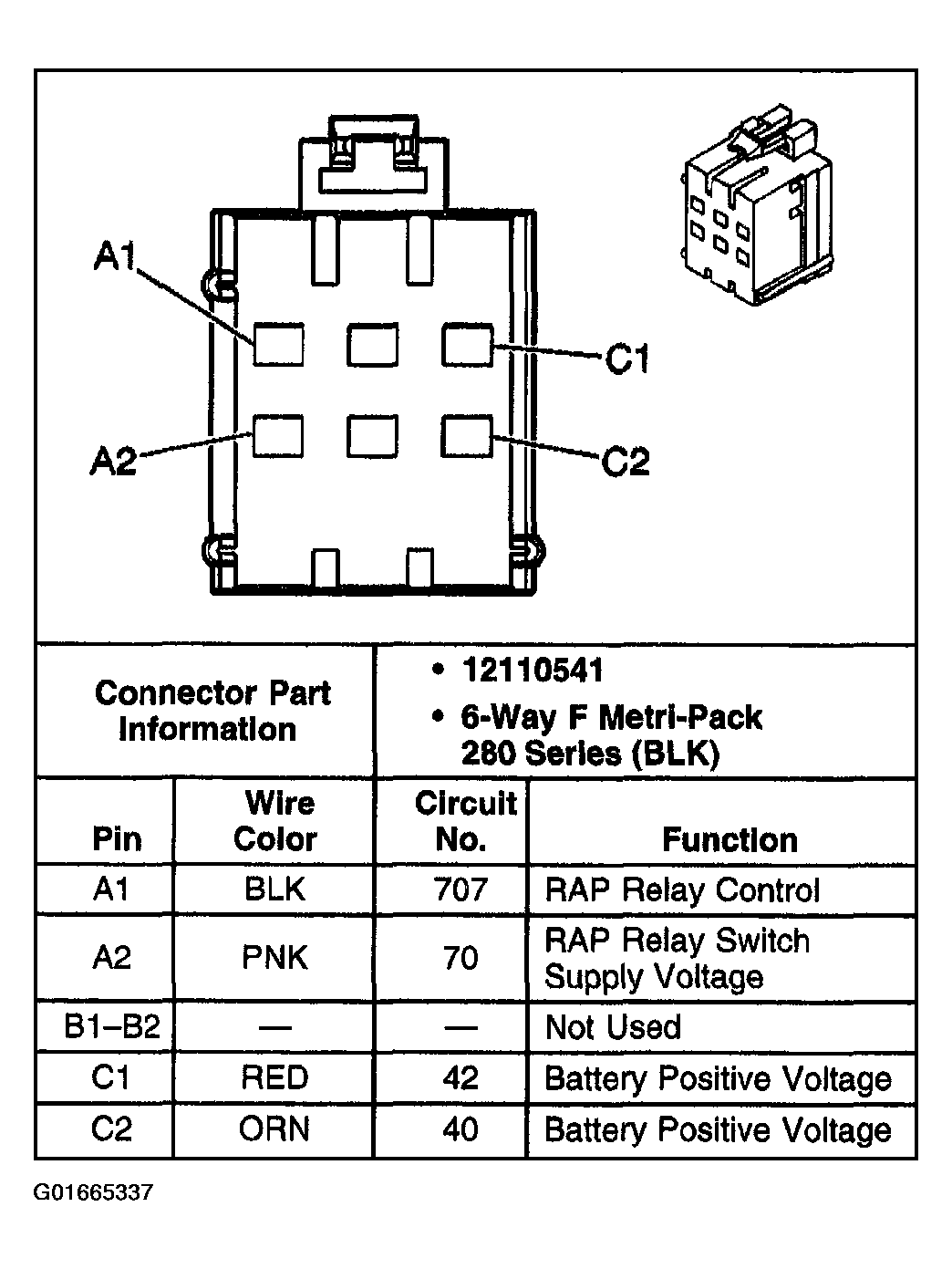

Fig 1: Retained Accessory Power (RAP) Relay

G01665337

Courtesy of GENERAL MOTORS CORP.
