Stationary Windows Connector End Views

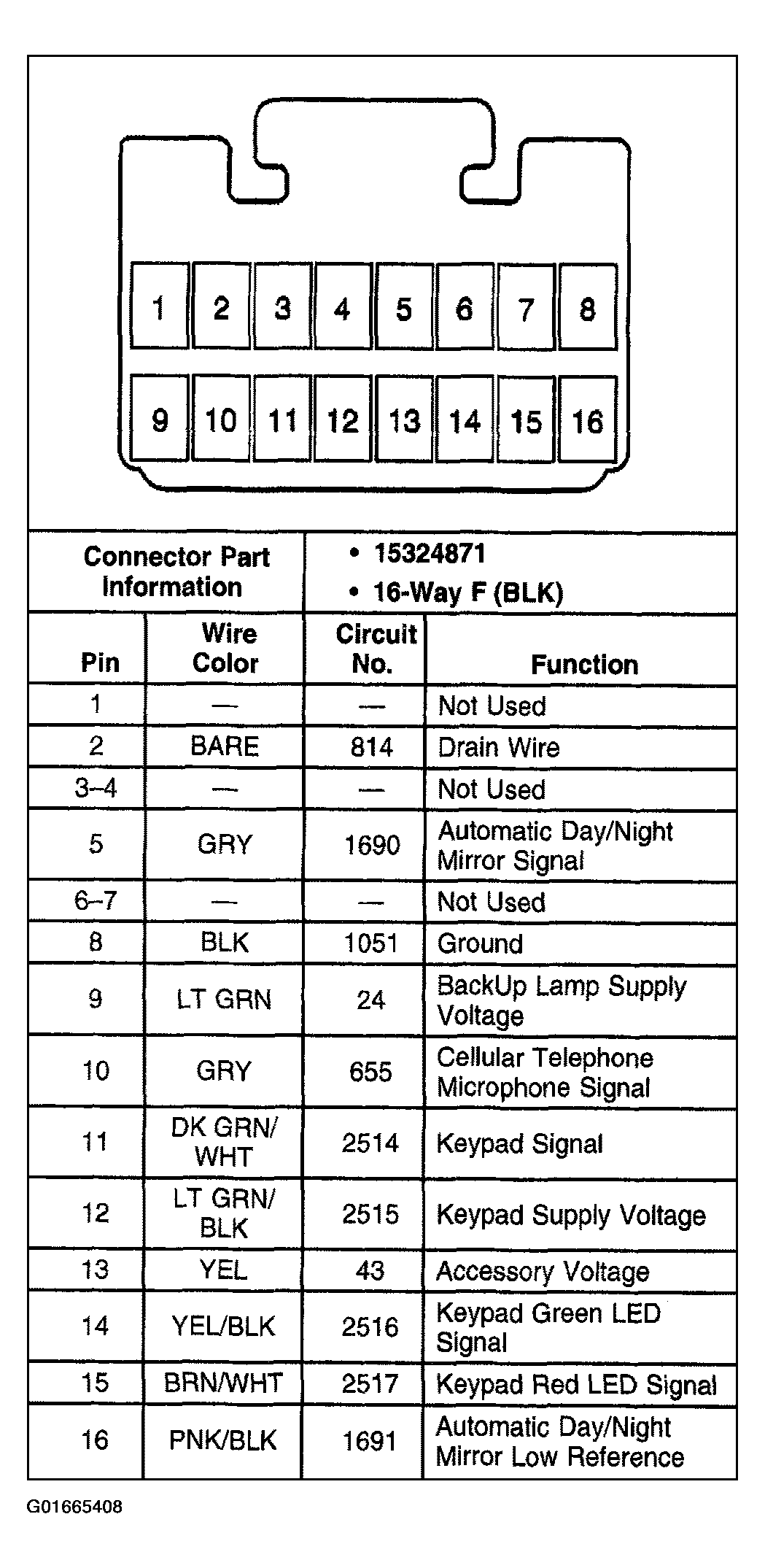

Fig 1: Inside Rearview Mirror Connector End View

G01665408

Courtesy of GENERAL MOTORS CORP.
