Installation Procedure

  1. Feed the coil assembly lead through the slot in the steering wheel.
  2. Install the steering wheel (1) to the upper steering column shaft.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the steering wheel retaining nut.

    Tighten

    Tighten the steering wheel retaining nut to 41 N.m (30 lb ft).

  4. Install the inflatable restraint steering wheel module. Refer to AIR BAG MODULES in SIR.
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

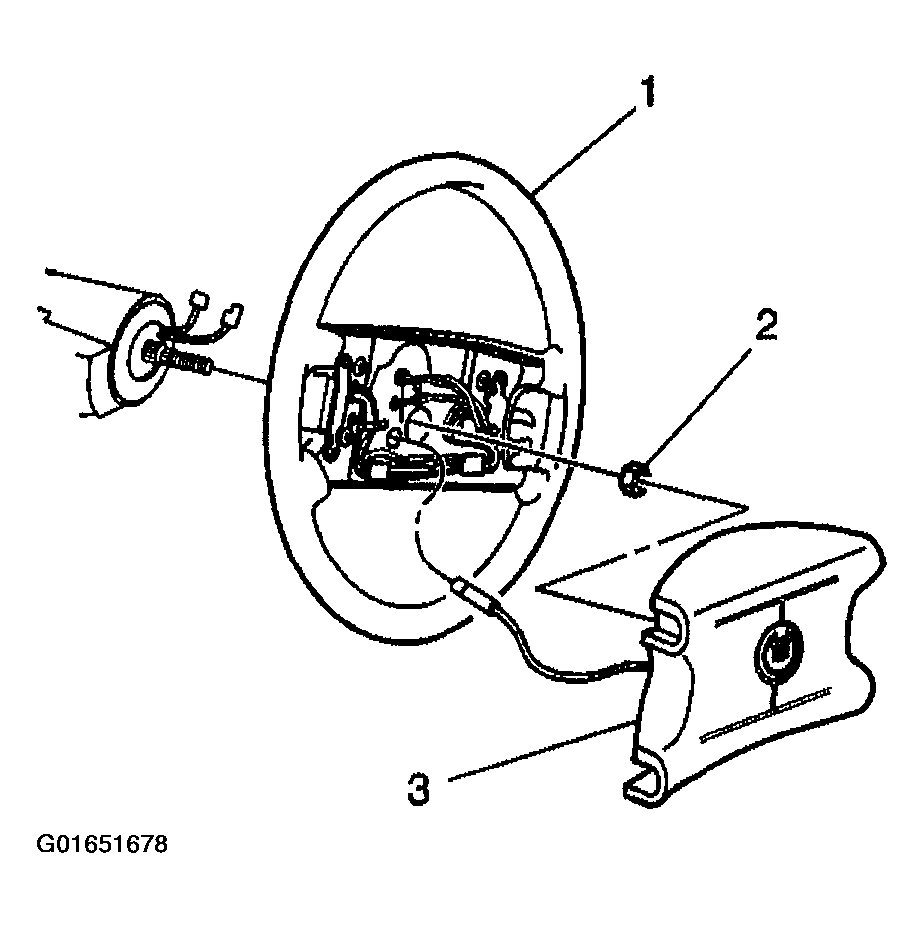

    Fig 1: Installing Steering Wheel to Upper Steering Column Shaft
    G01651678Courtesy of GENERAL MOTORS CORP.
