Park Relay: Installation

  1. Install the park relay into the No. 2 relay center (9). See Fig 2 . Press inward in order to secure the relay.
  2. Install new electrical tape to the relay center. See Fig 1 . Install the rear seat back.

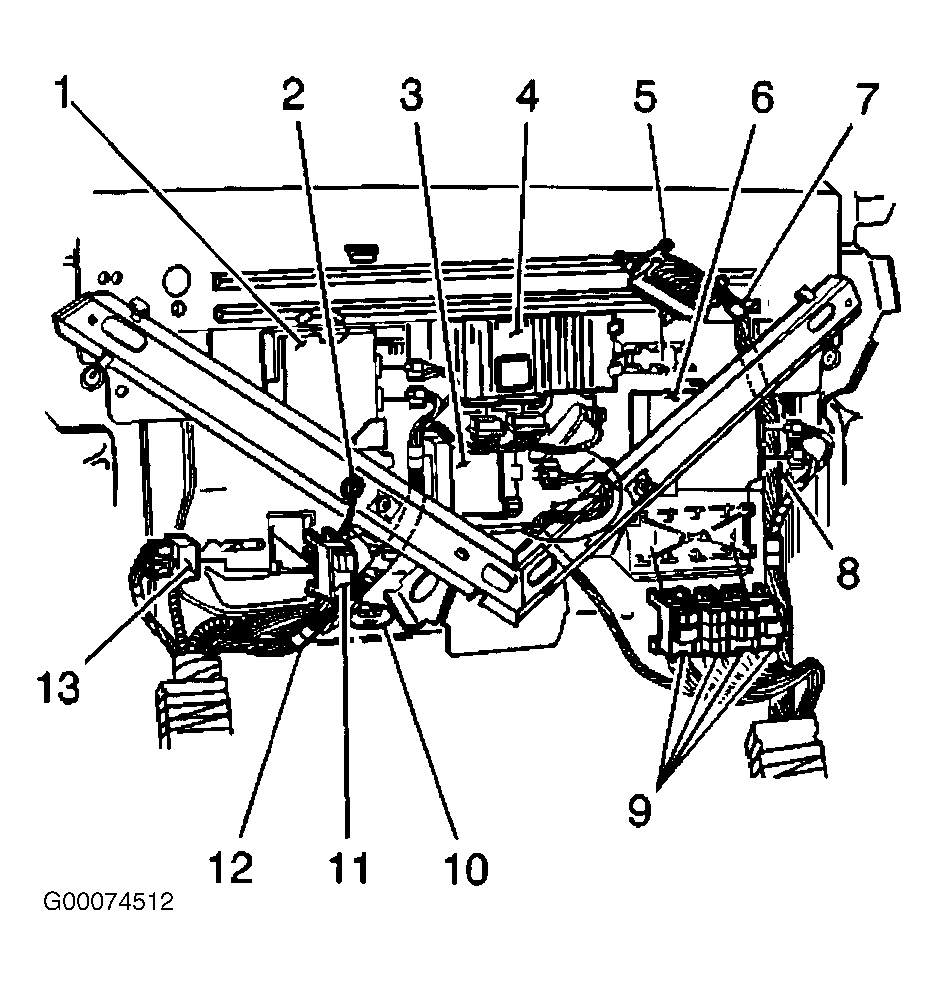

Fig 1: Locating No. 2 Relay Center
G00074512Courtesy of GENERAL MOTORS CORP.

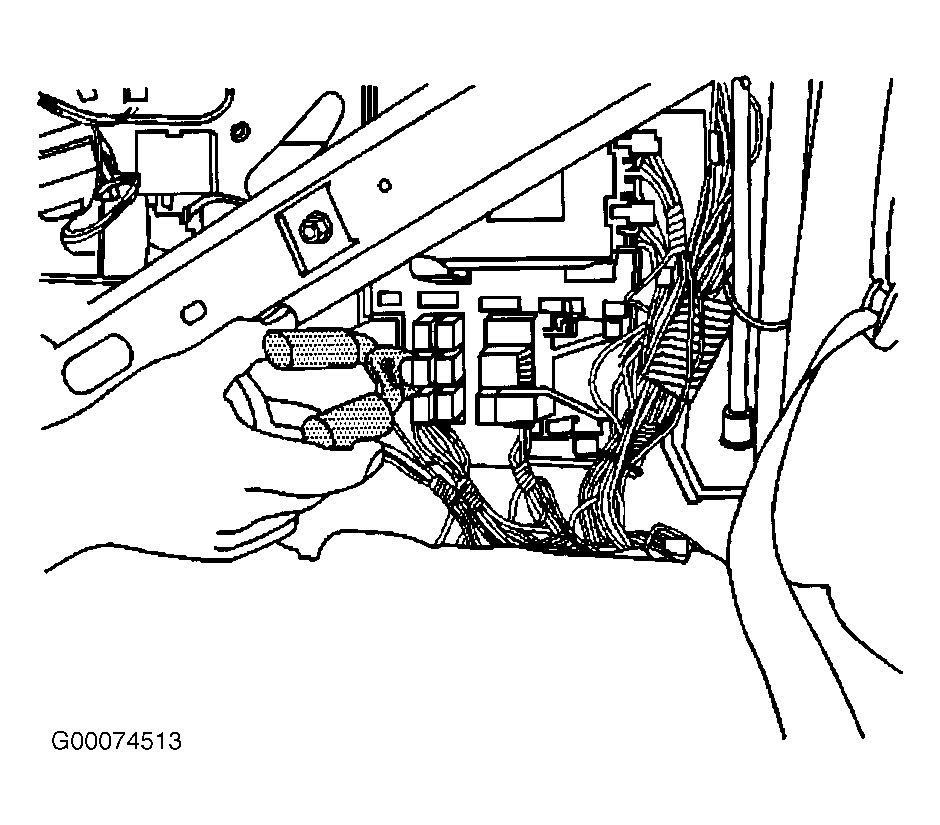

Fig 2: Removing/Installing Park Relay
G00074513Courtesy of GENERAL MOTORS CORP.
