Installation Procedure

  1. Install the retaining clips in order to attach the reservoir (2) to the pump.
  2. Install the power steering pump and reservoir (2) to the power steering bracket (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering pump to bracket bolts (4,5).

    Tighten

    Tighten the power steering pump to bracket bolts to 24 N.m (18 lb ft).

  4. Install the power steering pulley (3) to the power steering pump.
  5. Position the power steering pump assembly to the vehicle.

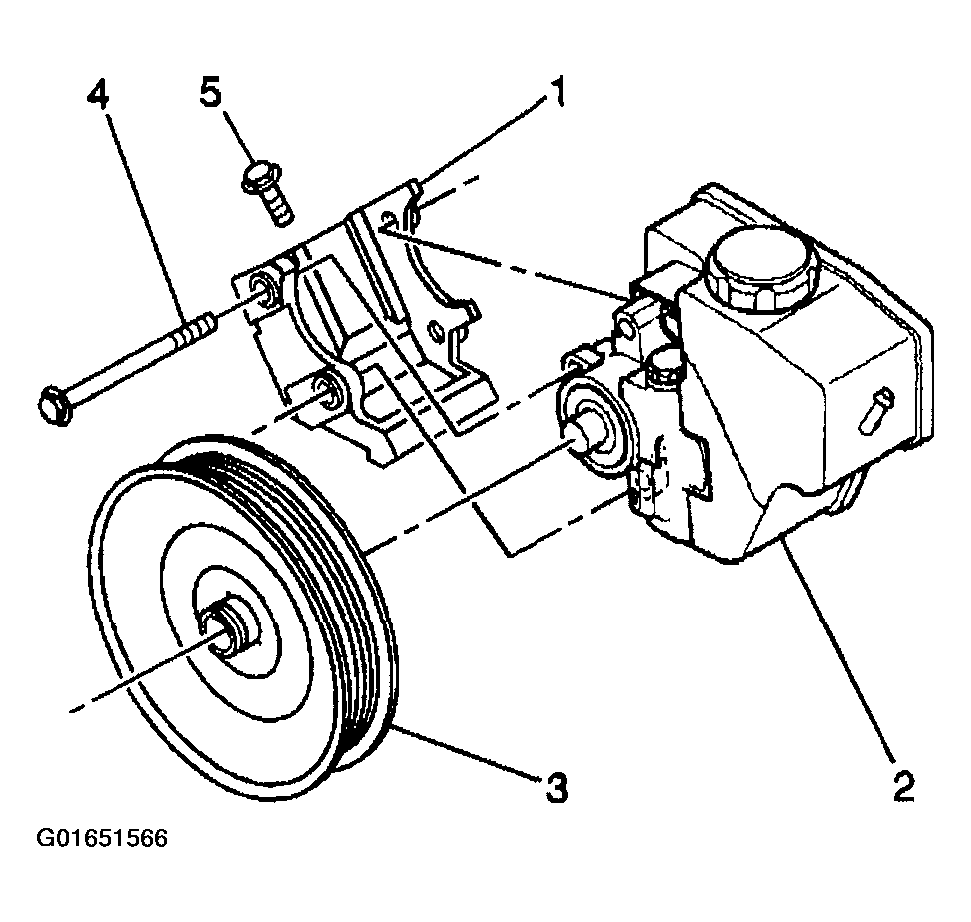

    Fig 1: Positioning Power Steering Pump Assembly To Vehicle
    G01651566Courtesy of GENERAL MOTORS CORP.
  6. Install the power steering pump mounting bolt.

    Tighten

    Tighten the power steering pump mounting bolt to 47 N.m (35 lb ft).

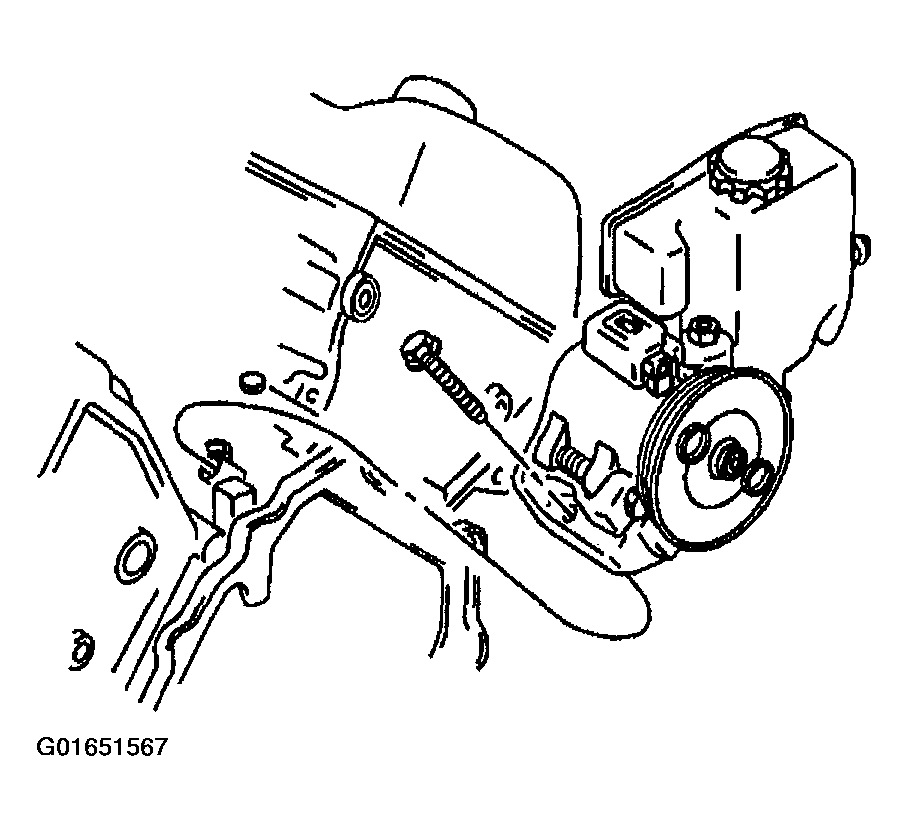

    Fig 2: Tightening Power Steering Pump Mounting Bolt
    G01651567Courtesy of GENERAL MOTORS CORP.
  7. Install the power steering pressure hose to the power steering pump.

    Tighten

    Tighten the power steering pressure hose to 27 N.m (20 lb ft).

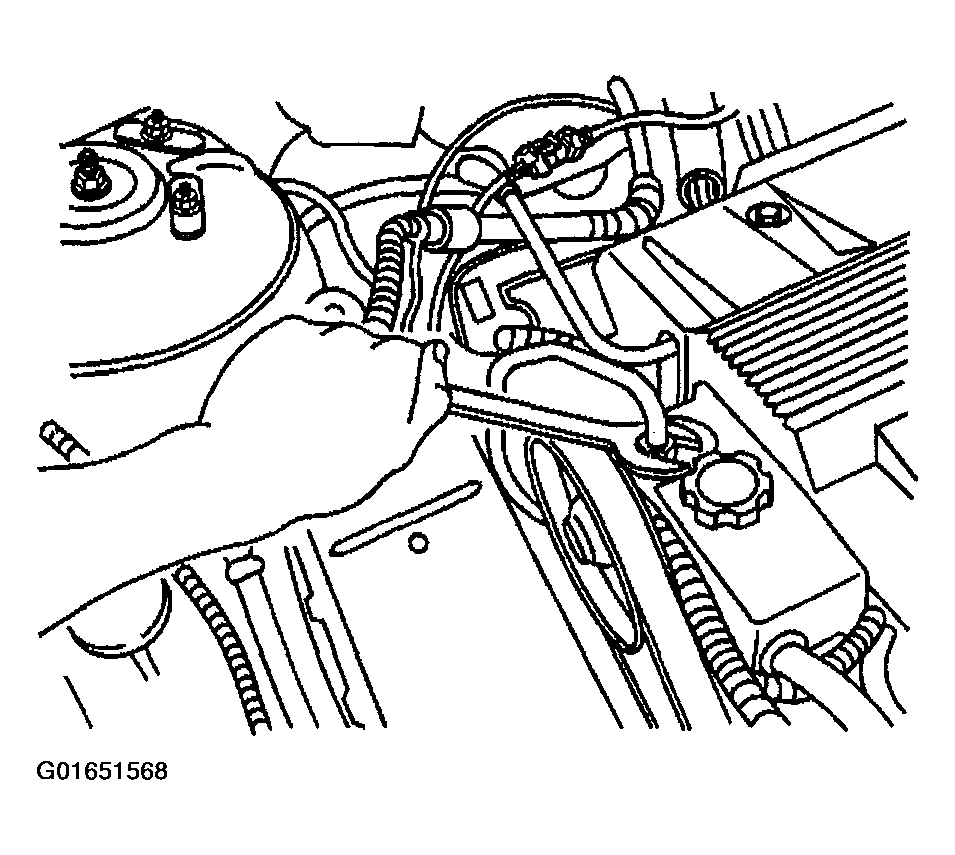

    Fig 3: Installing Power Steering Pressure Hose
    G01651568Courtesy of GENERAL MOTORS CORP.
  8. Install the power steering cooler hose to the power steering pump.
  9. Install the drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  10. Bleed the power steering system. Refer to Bleeding the Power Steering System
  11. Inspect the power steering system for leaks.

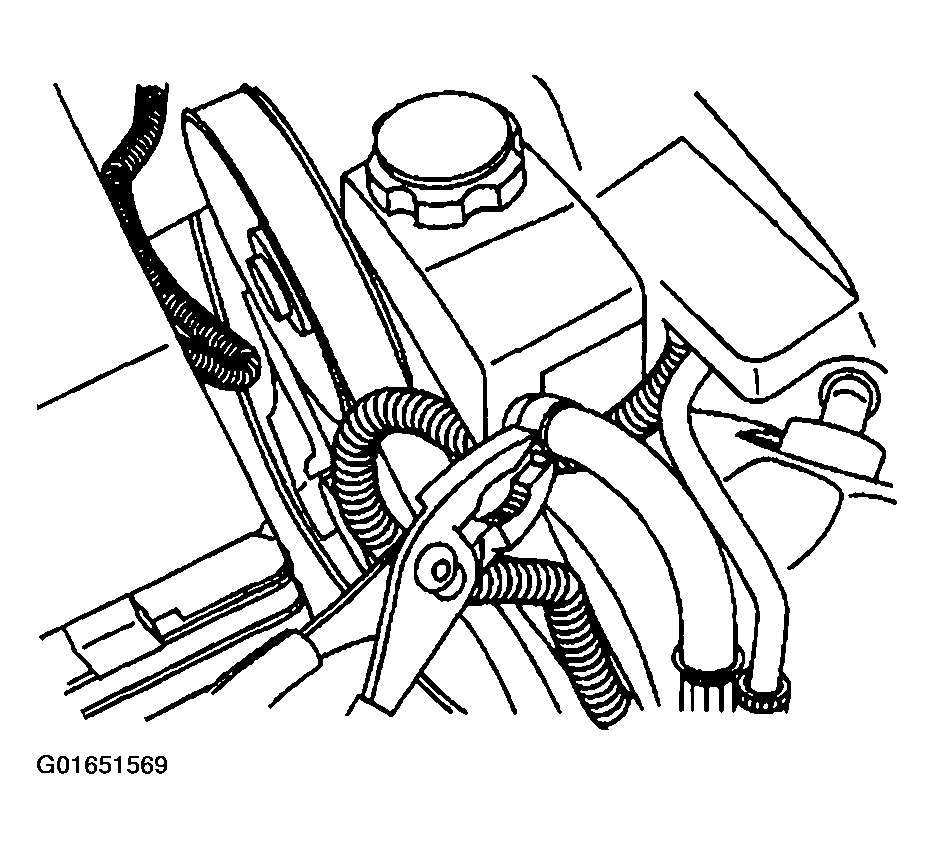

    Fig 4: Installing Power Steering Cooler Hose
    G01651569Courtesy of GENERAL MOTORS CORP.
