Installation Procedure

  1. Install the power steering flow control valve (3) to the power steering pump,
    NOTE: FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering pump fitting (5) to the power steering pump.

    Tighten

    Tighten the power steering pump fitting to 75 N.m (55 lb ft).

    Fig 1: Identifying Power Steering Pump Components
    G01651557Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pressure hose (1) to the power steering pump (2).

    Tighten

    Tighten the power steering pressure hose at the power steering pump to 27 N.m (20 lb ft).

  4. Bleed the power steering system. Refer to Bleeding the Power Steering System
  5. Inspect the power steering system for leaks.

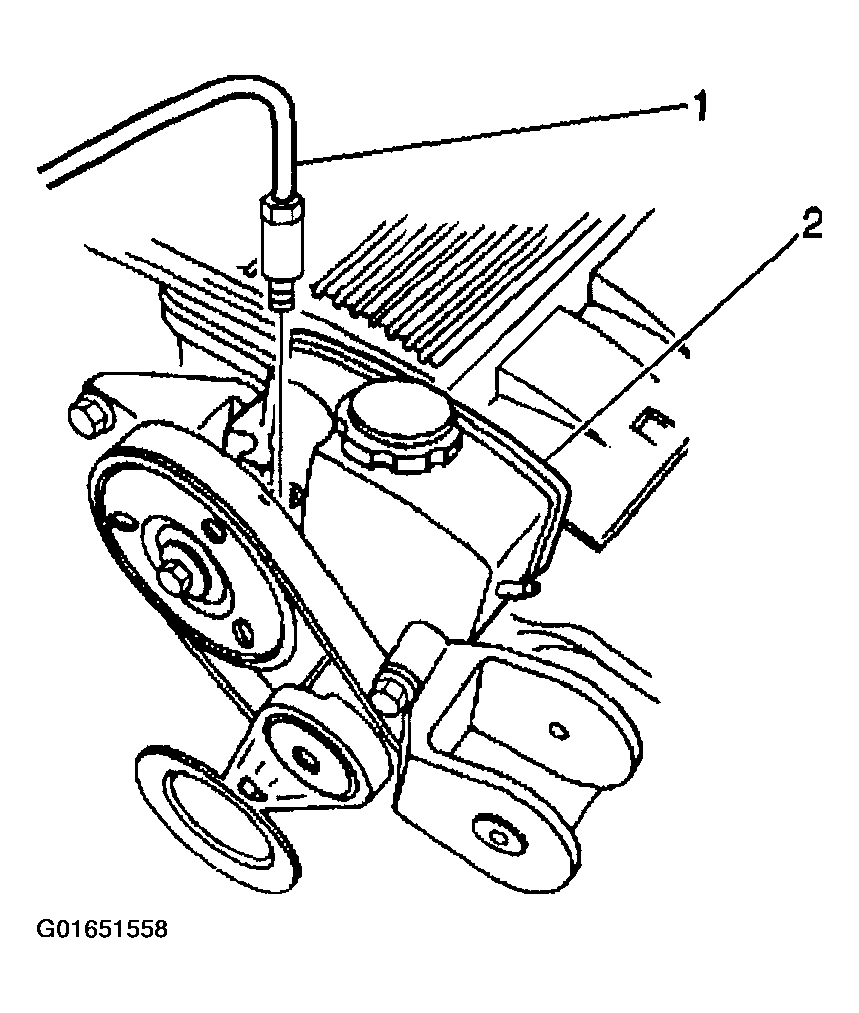

    Fig 2: Installing Power Steering Hose & Pump
    G01651558Courtesy of GENERAL MOTORS CORP.
