Installation Procedure

  1. Install the power steering cooler to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering cooler retaining bolts.

    Tighten

    Tighten the power steering retaining bolts to 6 N.m (53 lb in).

  3. Install the power steering return hose (1) to the power steering cooler.
  4. Install the power steering cooler hose (2) to the power steering cooler.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System
  6. Inspect the power steering system for leaks.

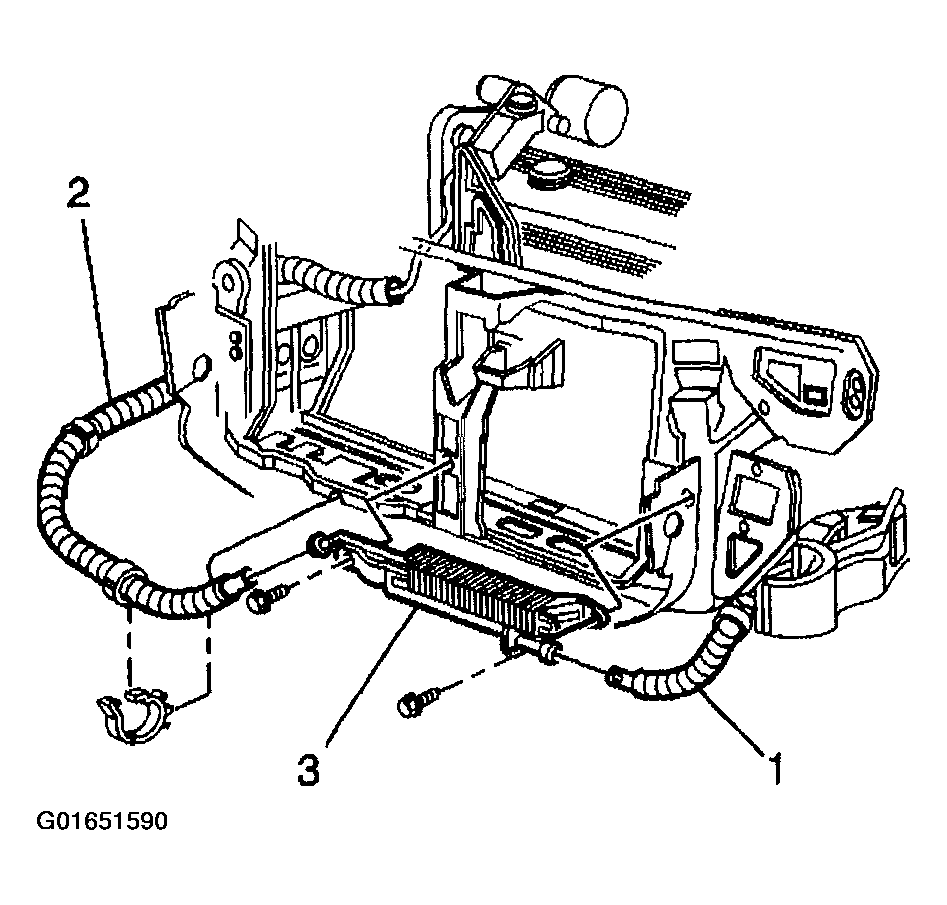

    Fig 1: Installing Power Steering Return & Cooler Hose
    G01651590Courtesy of GENERAL MOTORS CORP.
