Home >> Cadillac >> 2002 >> Eldorado ECS >> Repair and Diagnosis >> Steering >> Power Steering System >> Component Locator >> Power Steering Gear Disassembled View

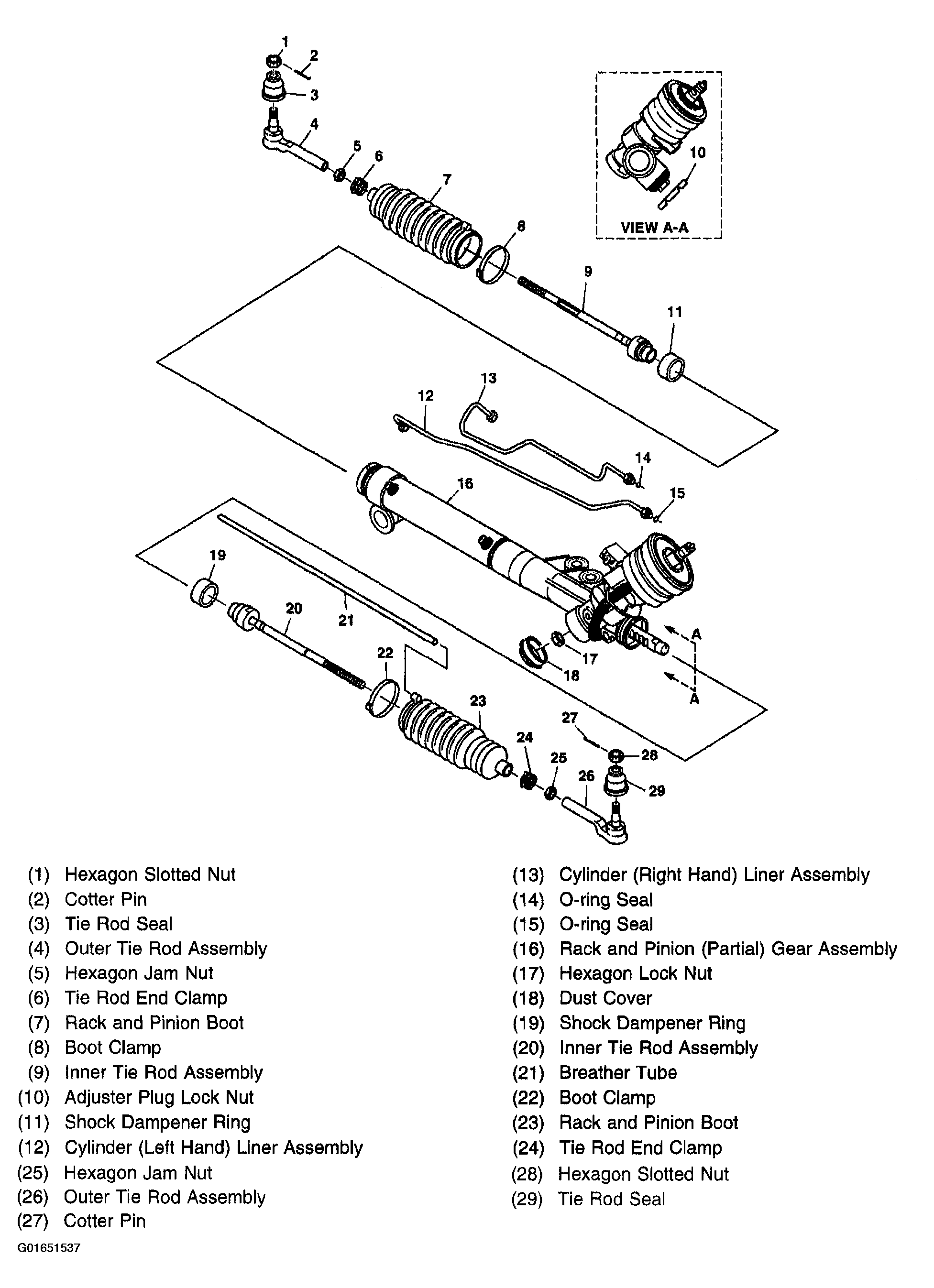

Power Steering Gear Disassembled View

Fig 1: Power Rack & Pinion

G01651537

Courtesy of GENERAL MOTORS CORP.
