Removal Procedure

  1. Remove the right front gusset. Refer to SPLASH SHIELD REPLACEMENT - ENGINE in Body Front End.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  3. Disconnect the positive battery cable from the battery.

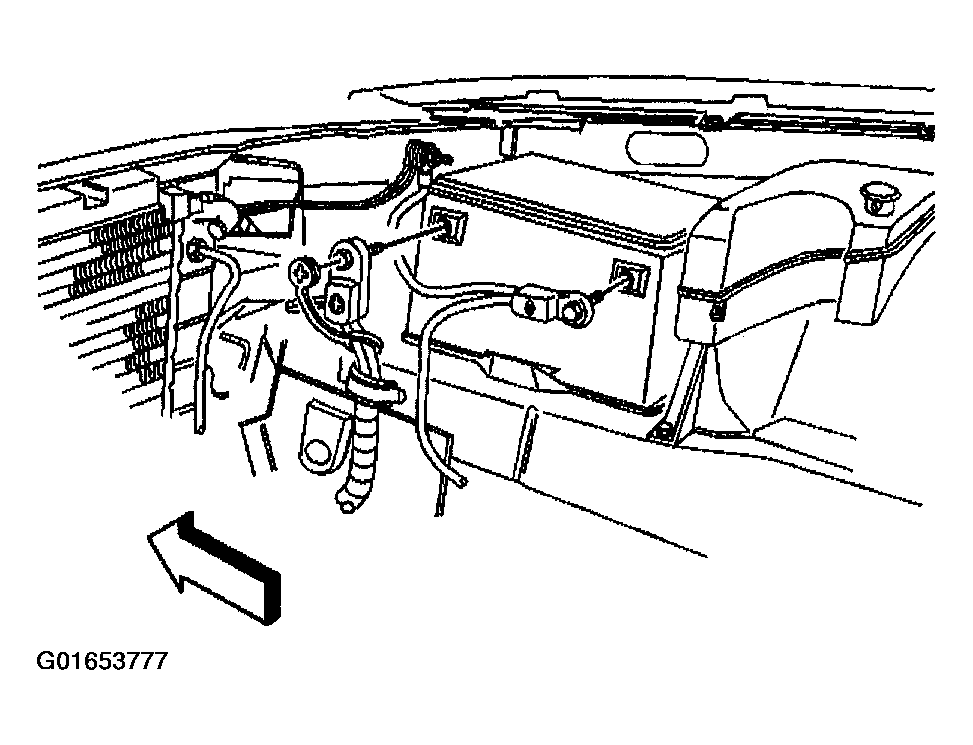

    Fig 1: Positive & Negative Battery Cable
    G01653777Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery from the vehicle.

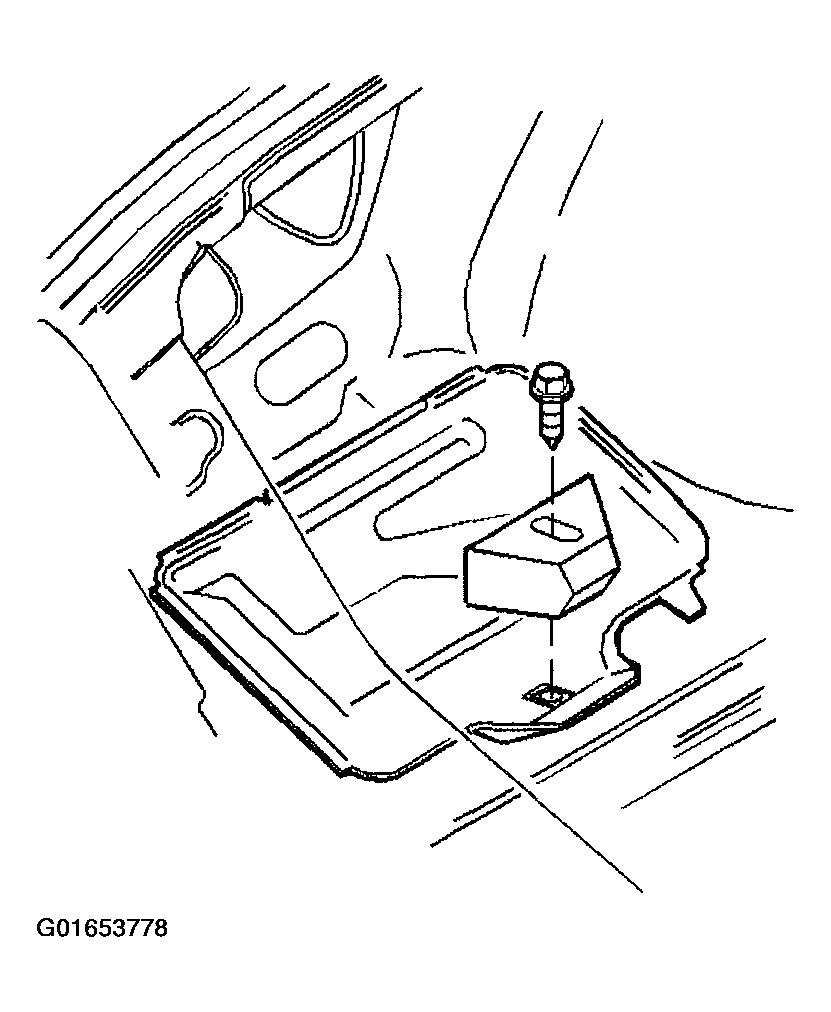

    Fig 2: Removing Battery
    G01653778Courtesy of GENERAL MOTORS CORP.
