Windshield Wiper/Washer Module Connector End View C2

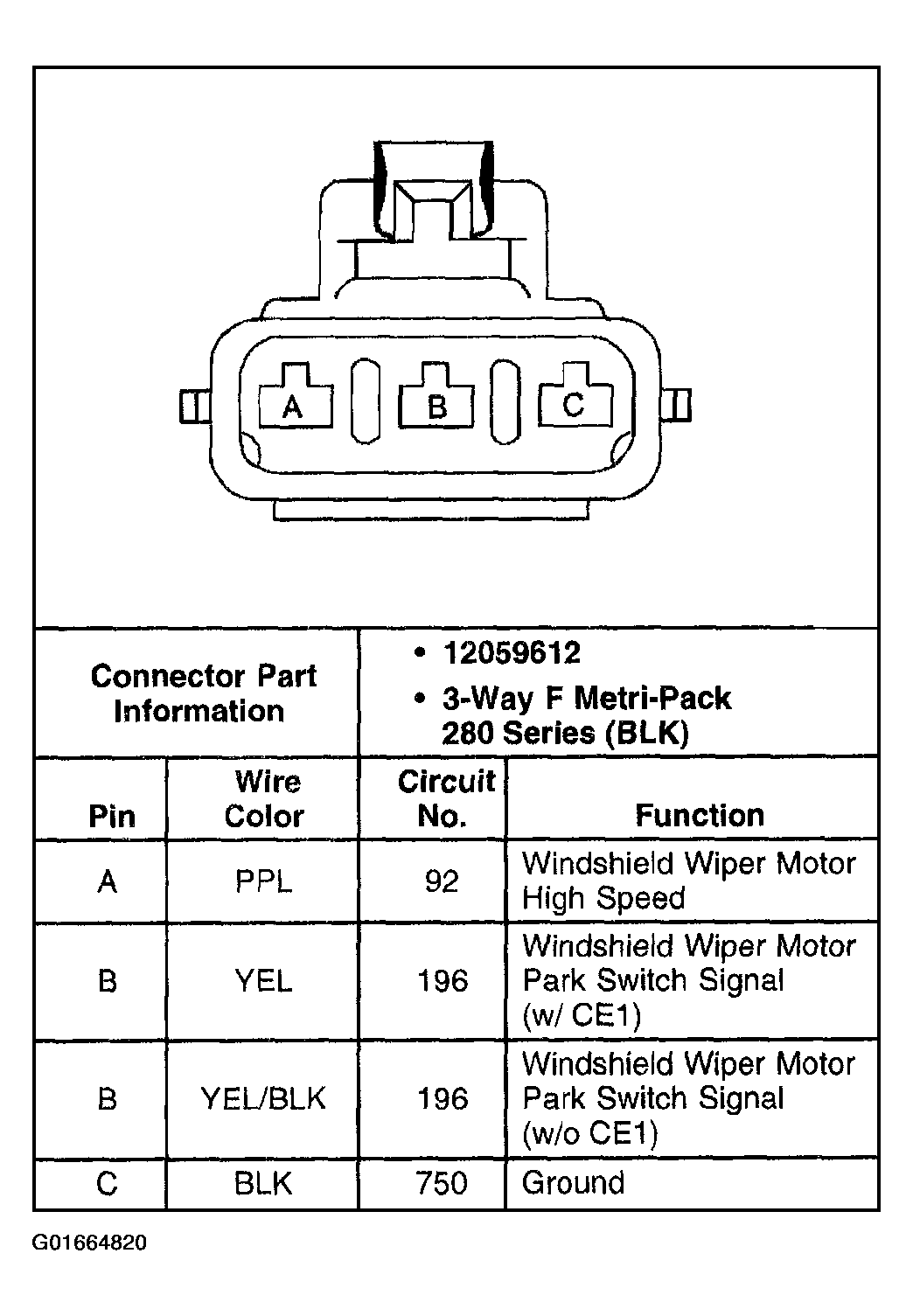

Fig 1: Windshield Wiper/Washer Module C2

G01664820

Courtesy of GENERAL MOTORS CORP.
