Window Switch Connector End View - Driver

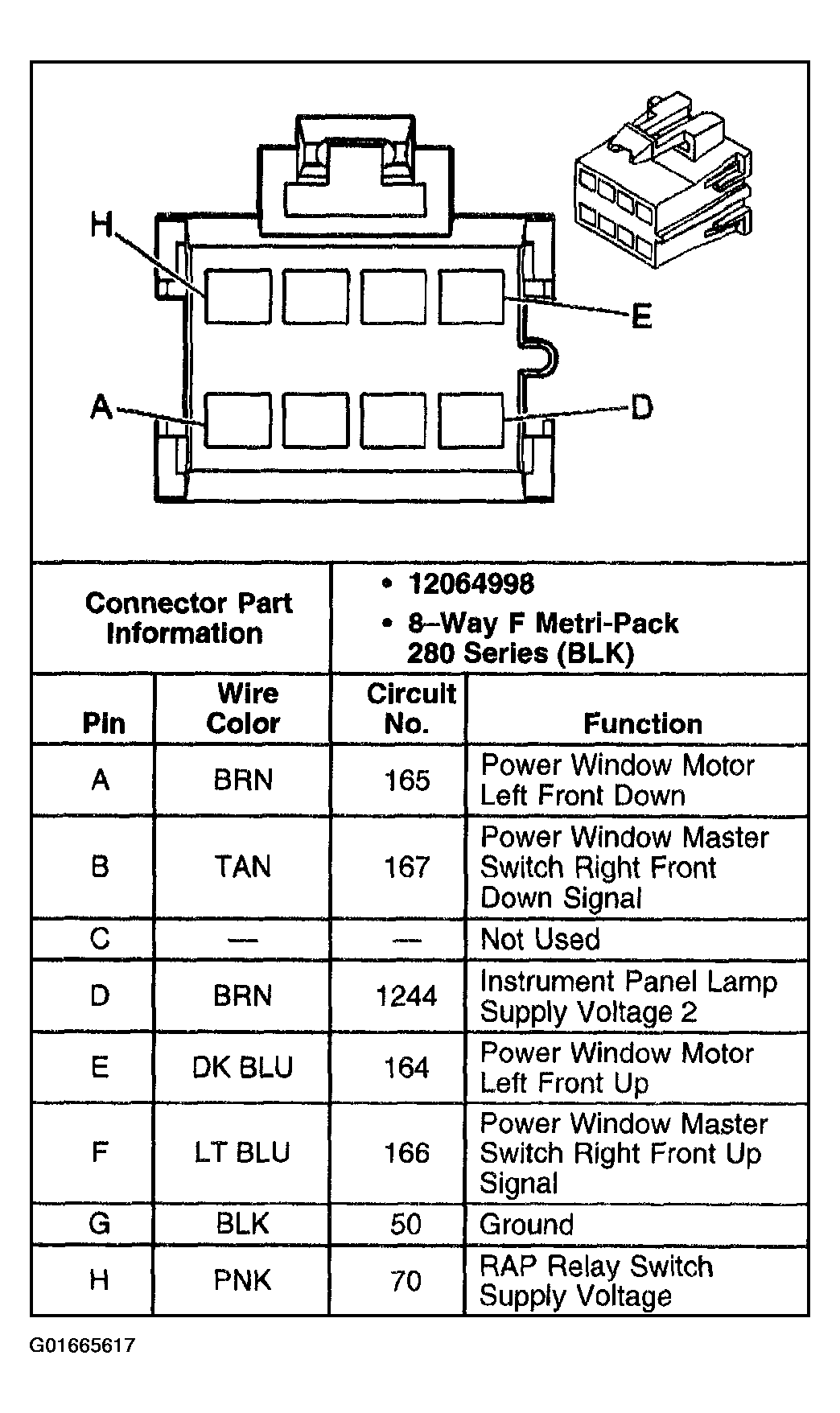

Fig 1: Window Switch - Driver

G01665617

Courtesy of GENERAL MOTORS CORP.
