Home >> Cadillac >> 2002 >> Eldorado ECS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Power Sunroof Express Module Connector End View C2

Power Sunroof Express Module Connector End View C2

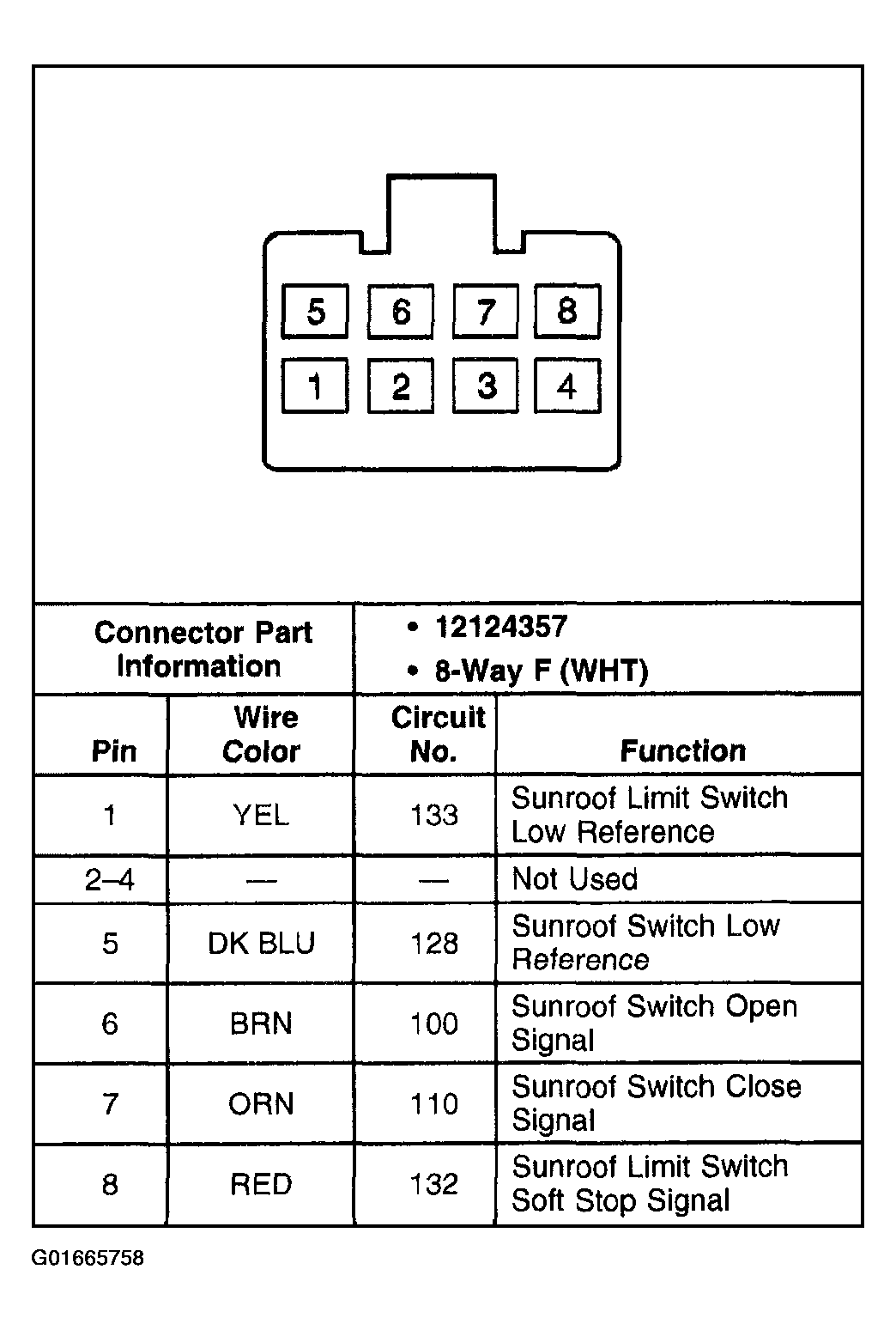

Fig 1: Power Sunroof Express Module C2

G01665758

Courtesy of GENERAL MOTORS CORP.
