Power Sunroof Express Module Connector End View C1

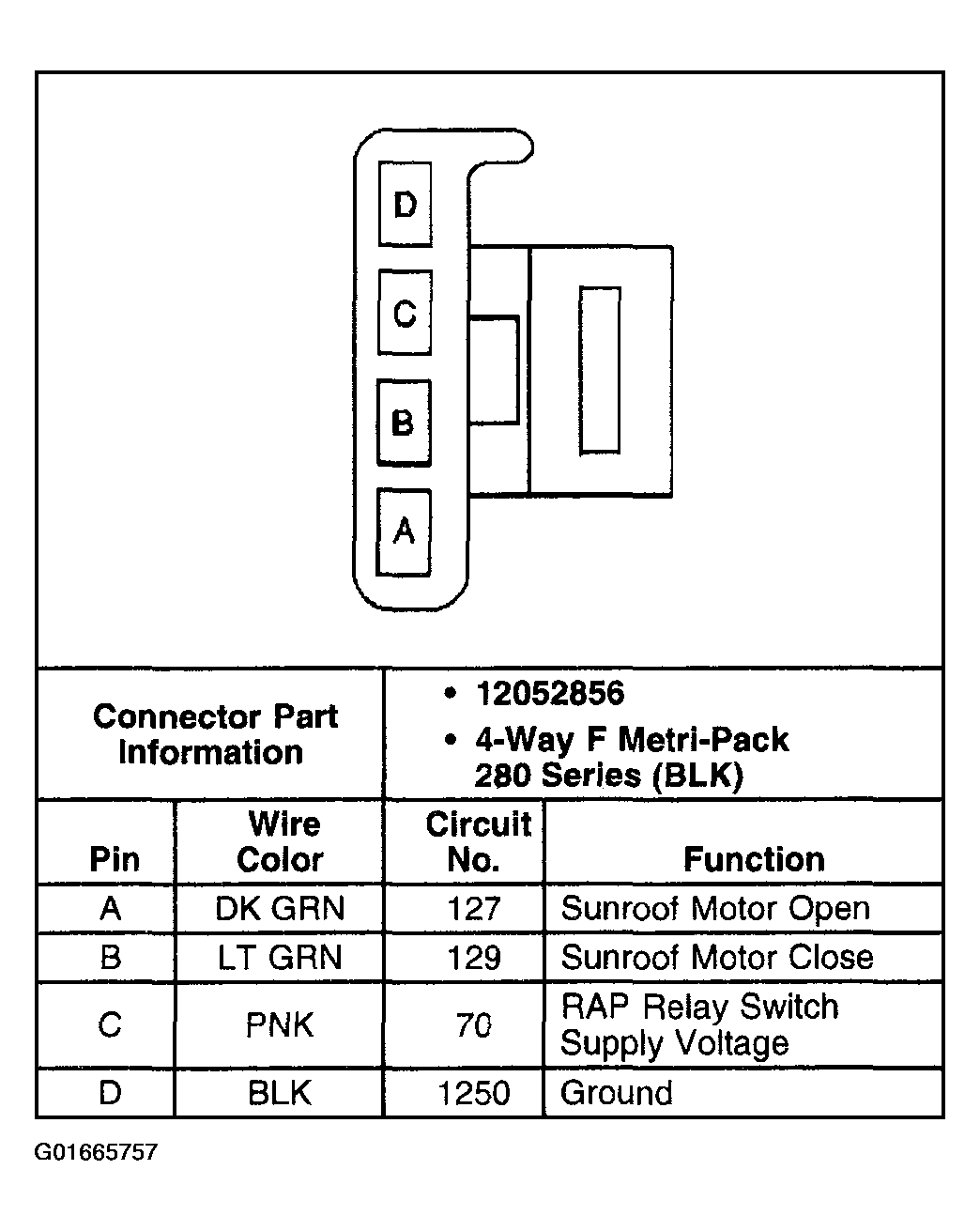

Fig 1: Power Sunroof Express Module C1

G01665757

Courtesy of GENERAL MOTORS CORP.
