Heated Seat Module Connector End View - Driver

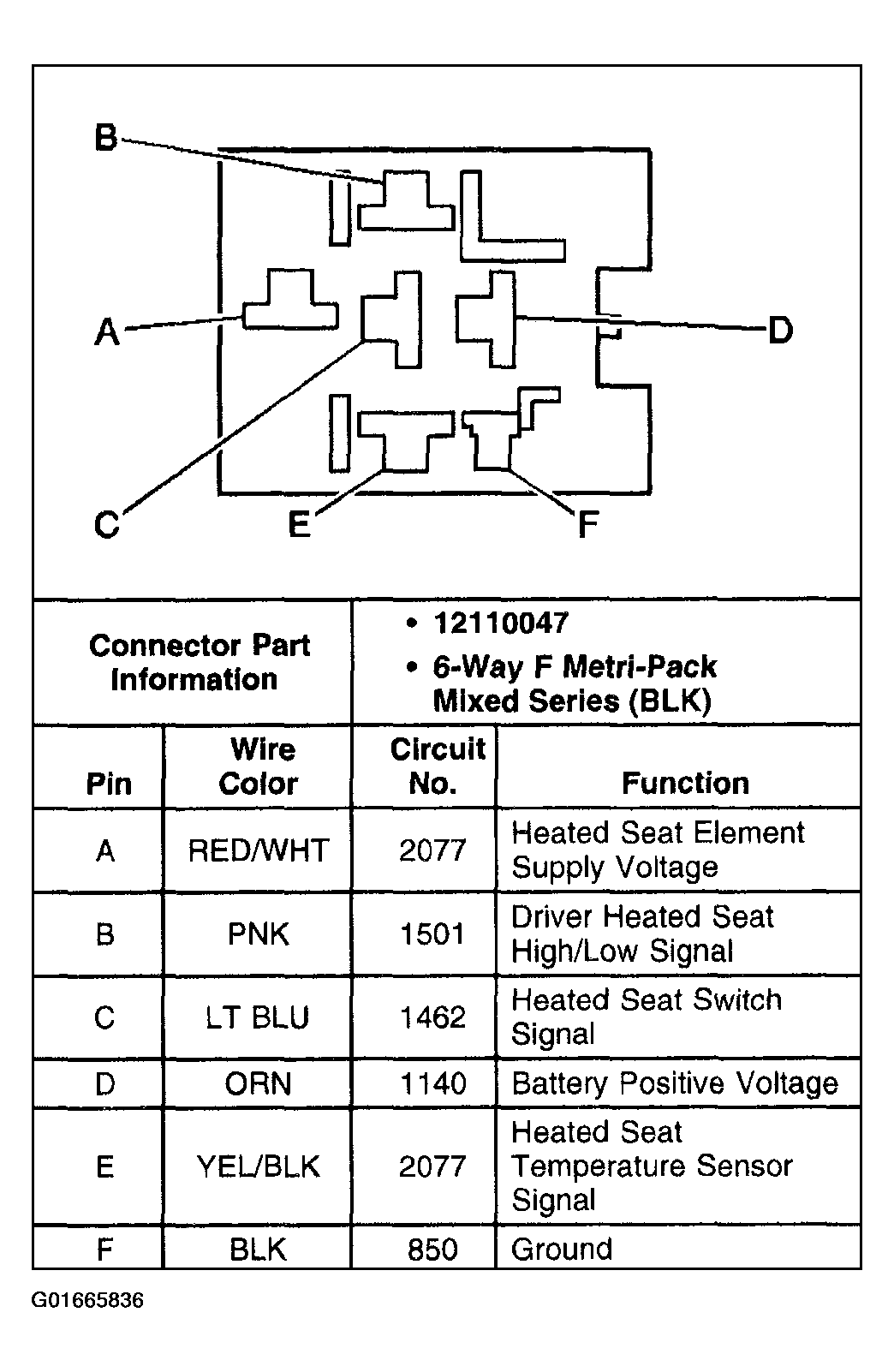

Fig 1: Heated Seat Module - Driver

G01665836

Courtesy of GENERAL MOTORS CORP.
