Front Vertical Position Sensor Connector End View

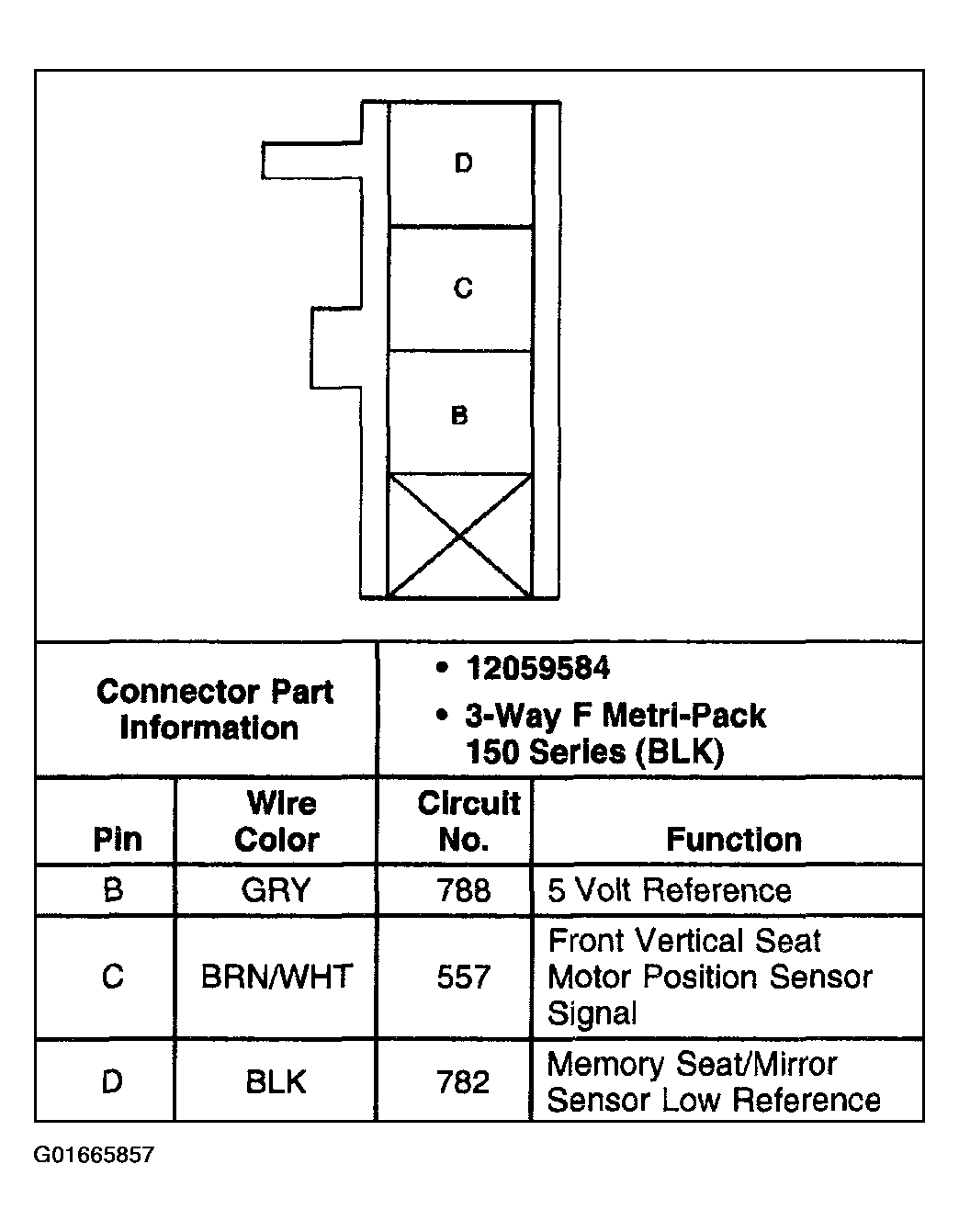

Fig 1: Front Vertical Position Sensor

G01665857

Courtesy of GENERAL MOTORS CORP.
