Automatic Level Control (ALC) Fuse Block Connector End View

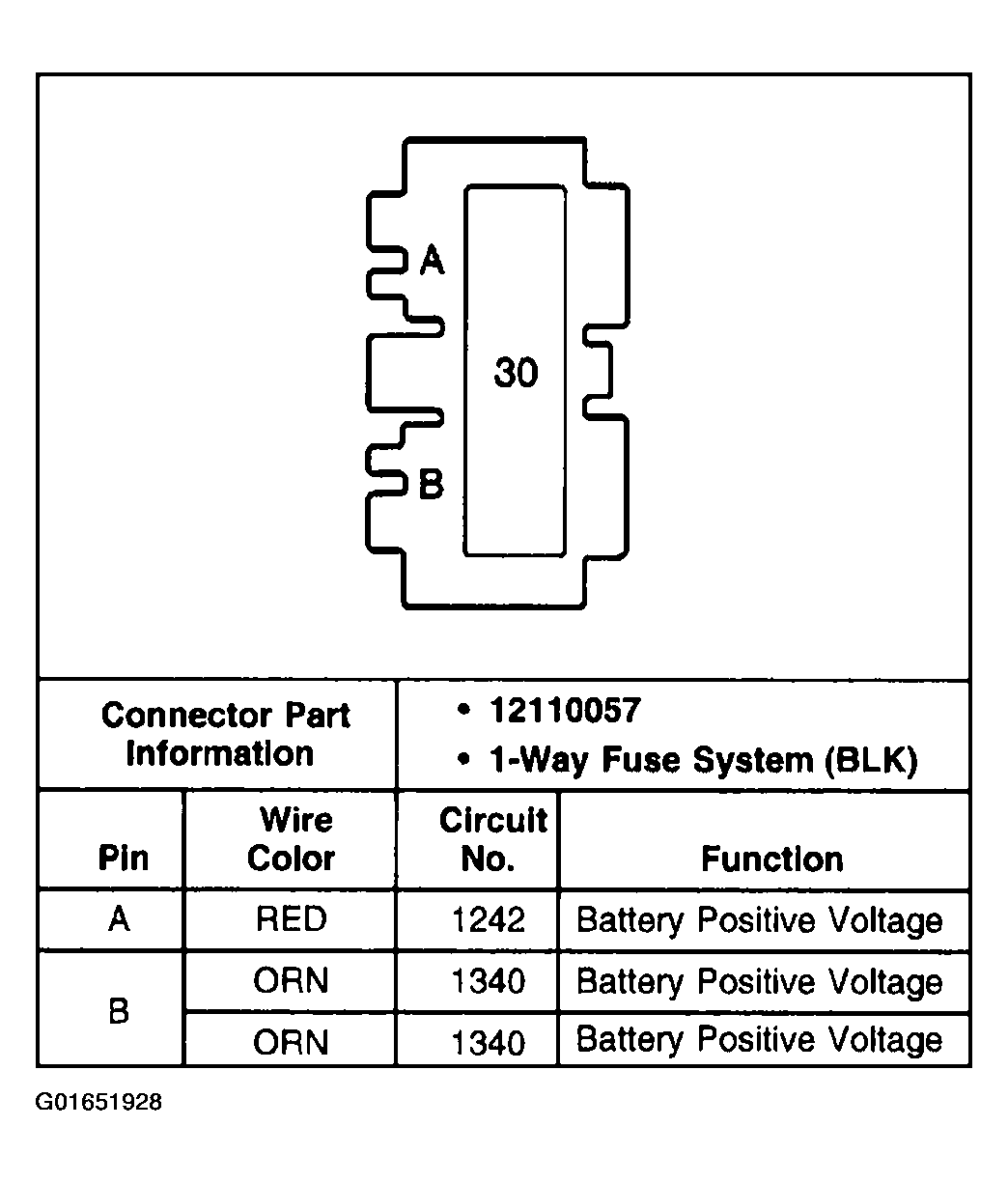

Fig 1: Automatic Level Control (ALC) Fuse Block

G01651928

Courtesy of GENERAL MOTORS CORP.
