Thread Repair Specifications

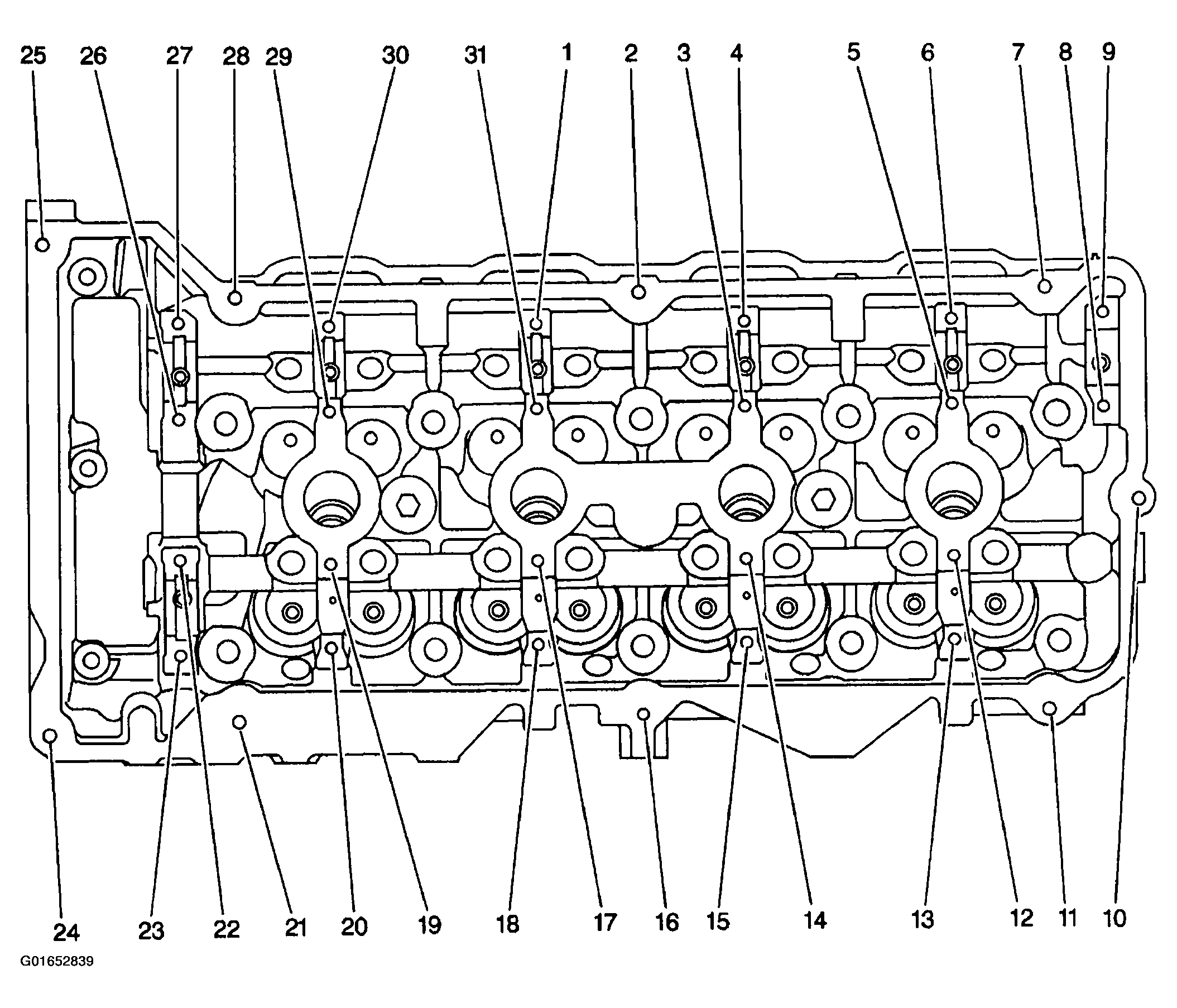

Fig 1: Left Cylinder Head Identification

G01652839

Courtesy of GENERAL MOTORS CORP.

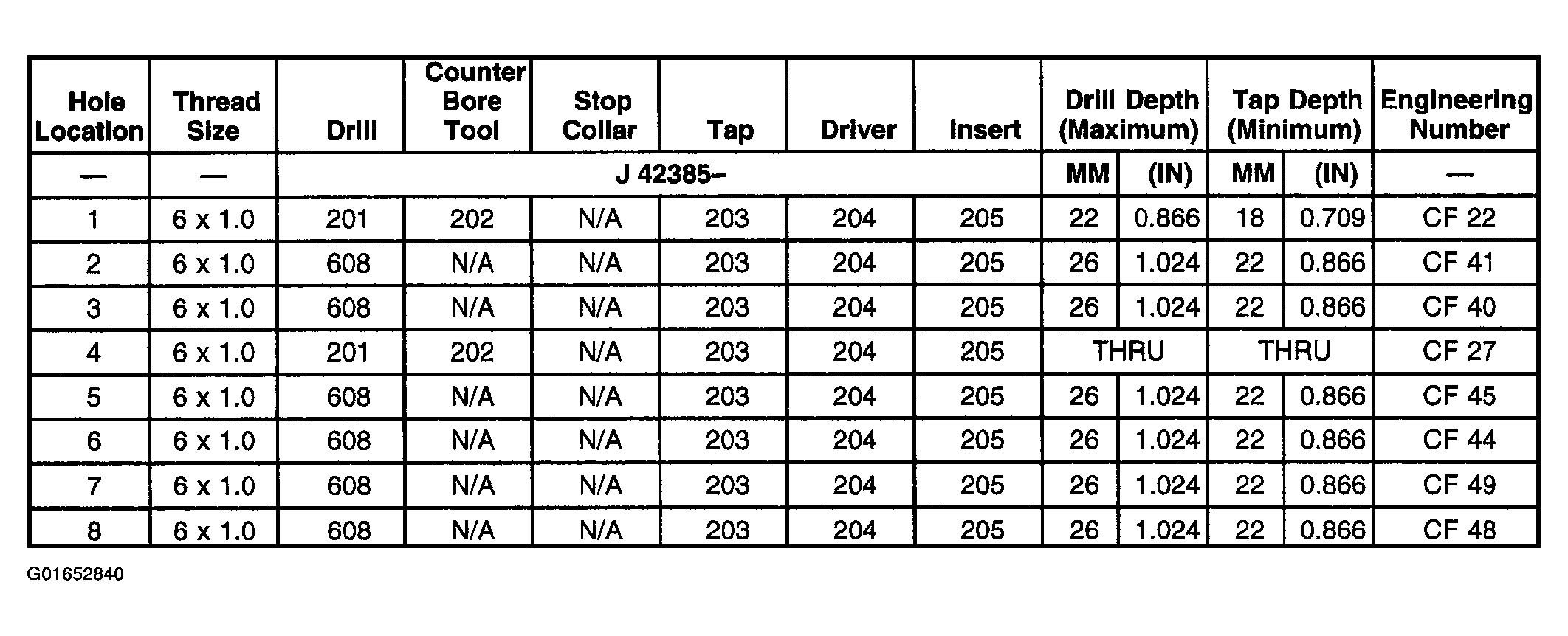

Fig 2: Left Cylinder Head Identification (Legend 1 Of 2)

G01652840

Courtesy of GENERAL MOTORS CORP.

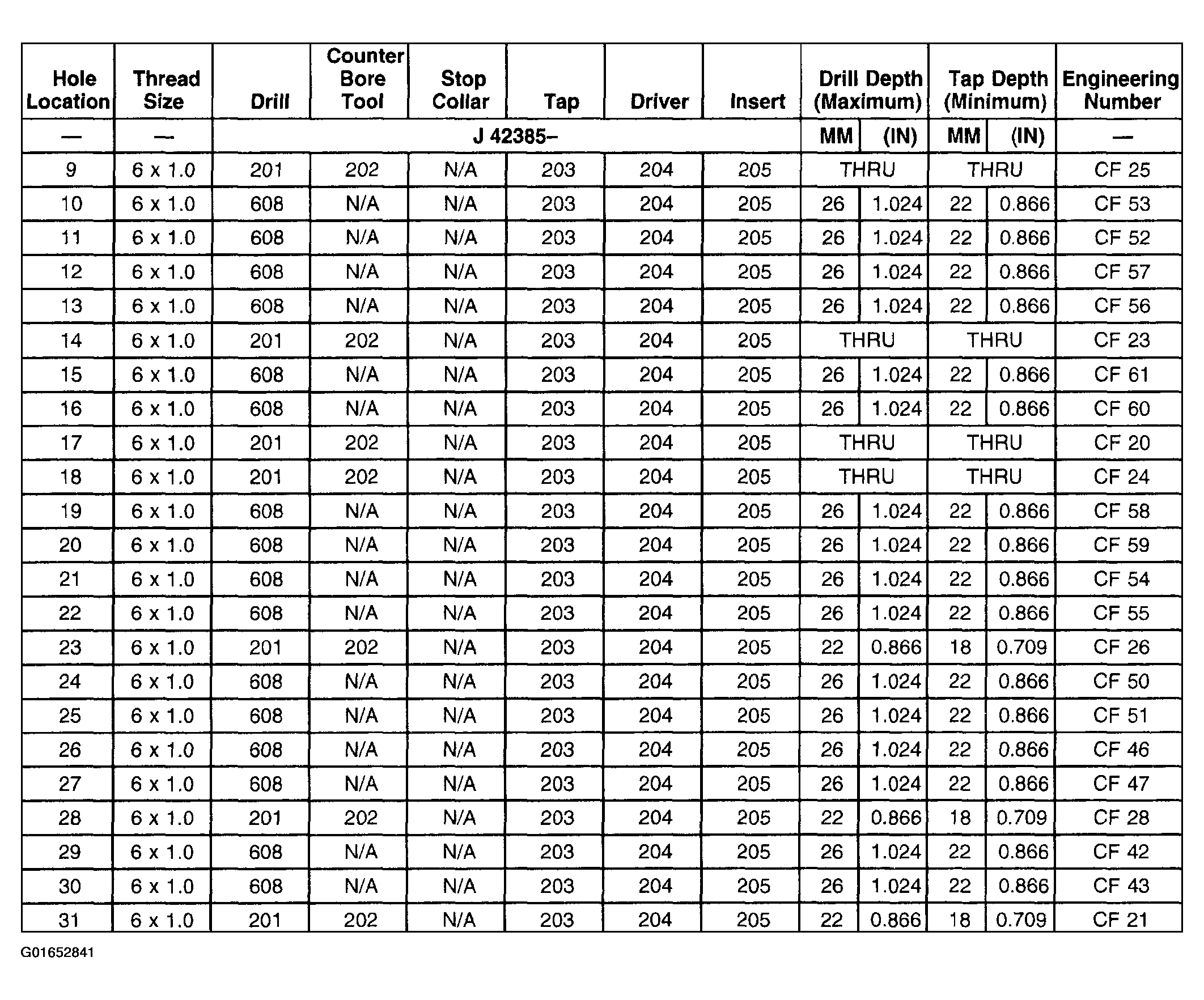

Fig 3: Left Cylinder Head Identification (Legend 2 Of 2)

G01652841

Courtesy of GENERAL MOTORS CORP.

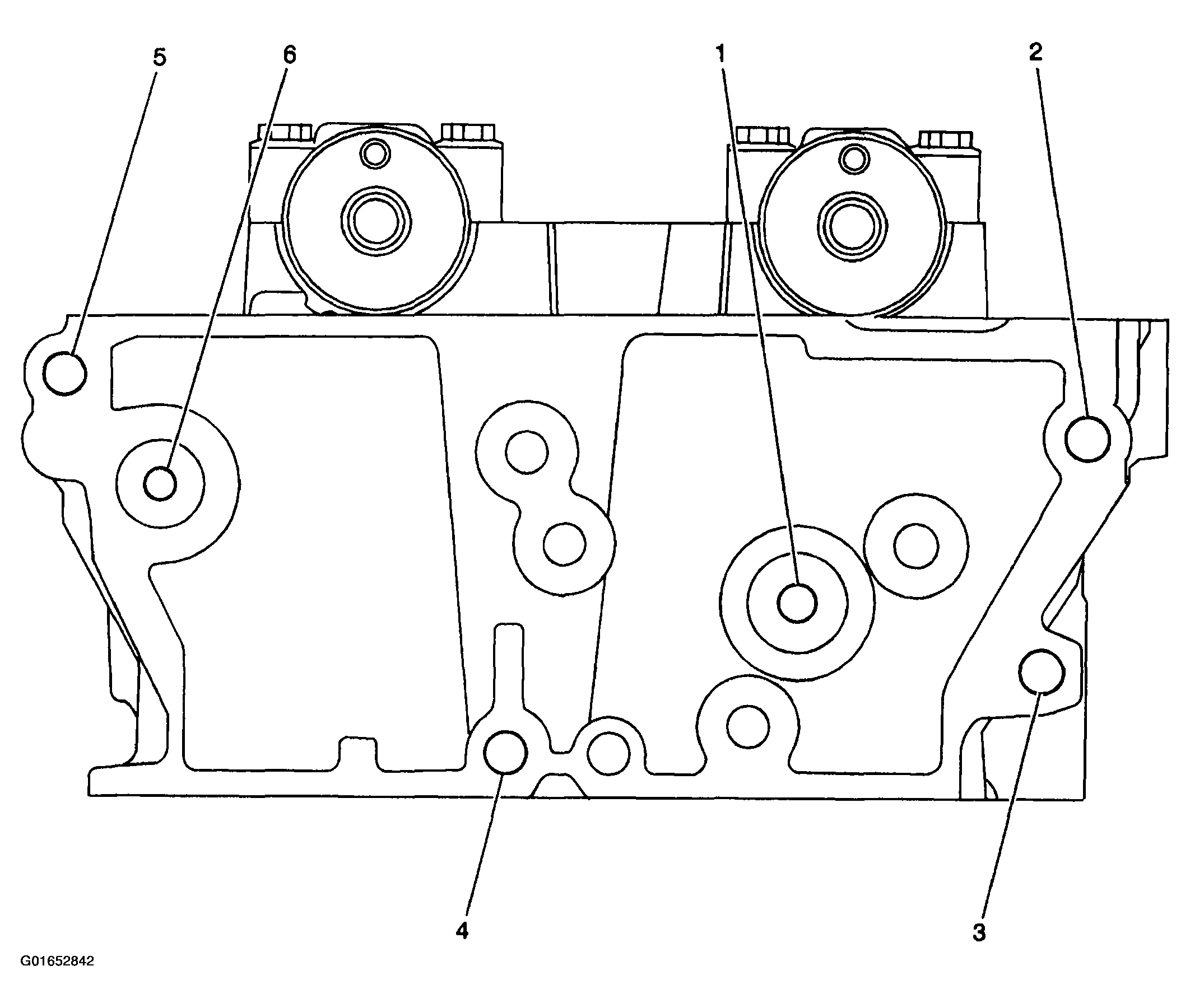

Fig 4: Left Cylinder Head Front Face

G01652842

Courtesy of GENERAL MOTORS CORP.

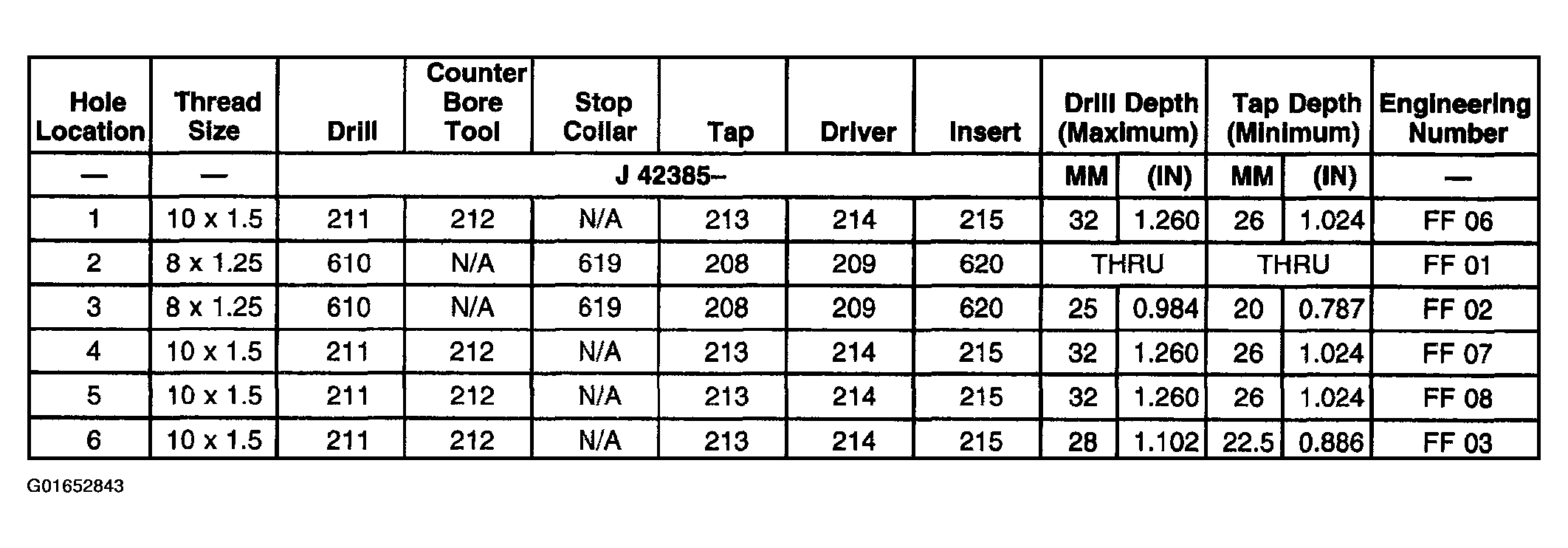

Fig 5: Left Cylinder Head Front Face (Legend)

G01652843

Courtesy of GENERAL MOTORS CORP.

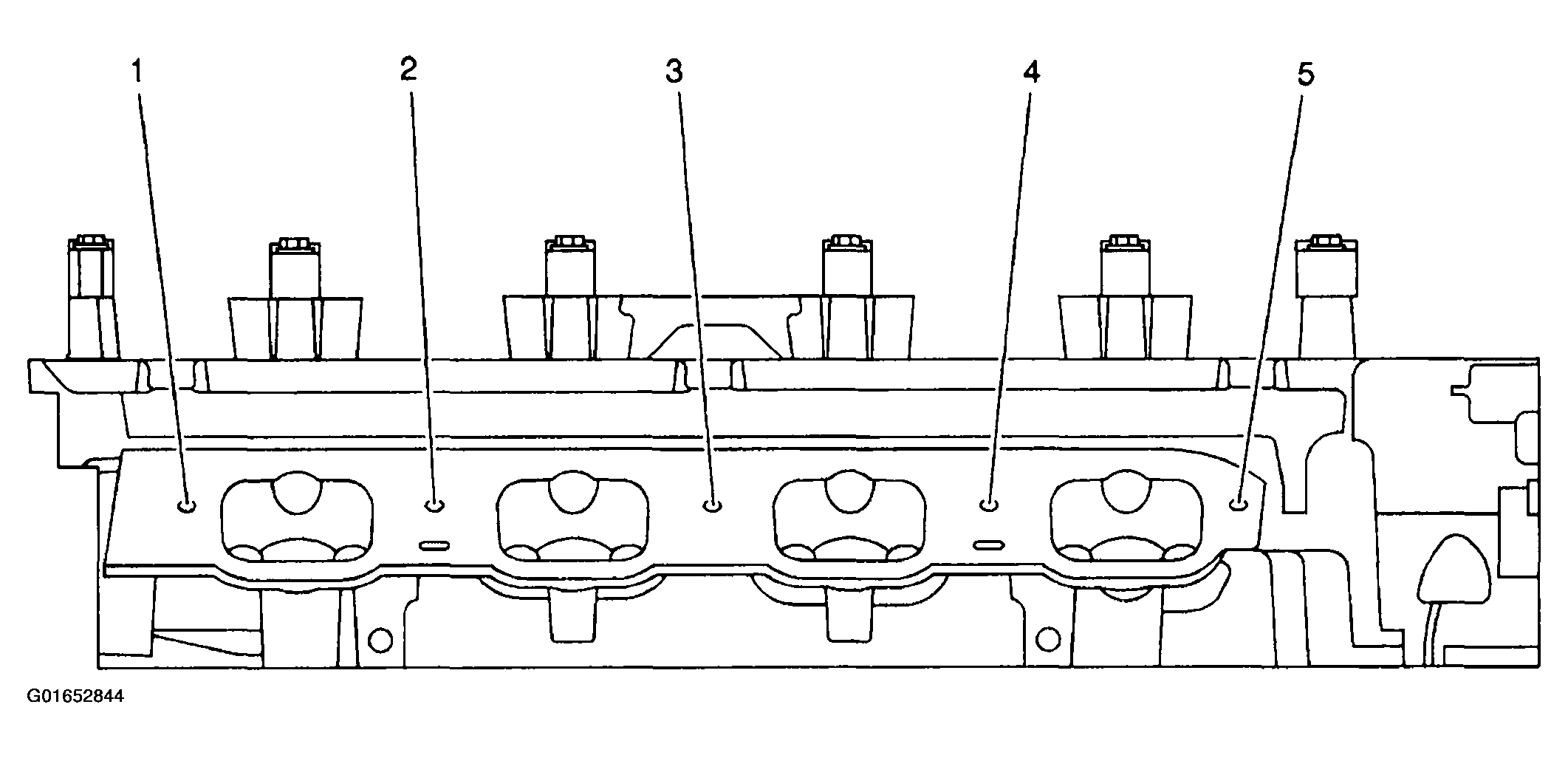

Fig 6: Left Cylinder Head Intake Face

G01652844

Courtesy of GENERAL MOTORS CORP.

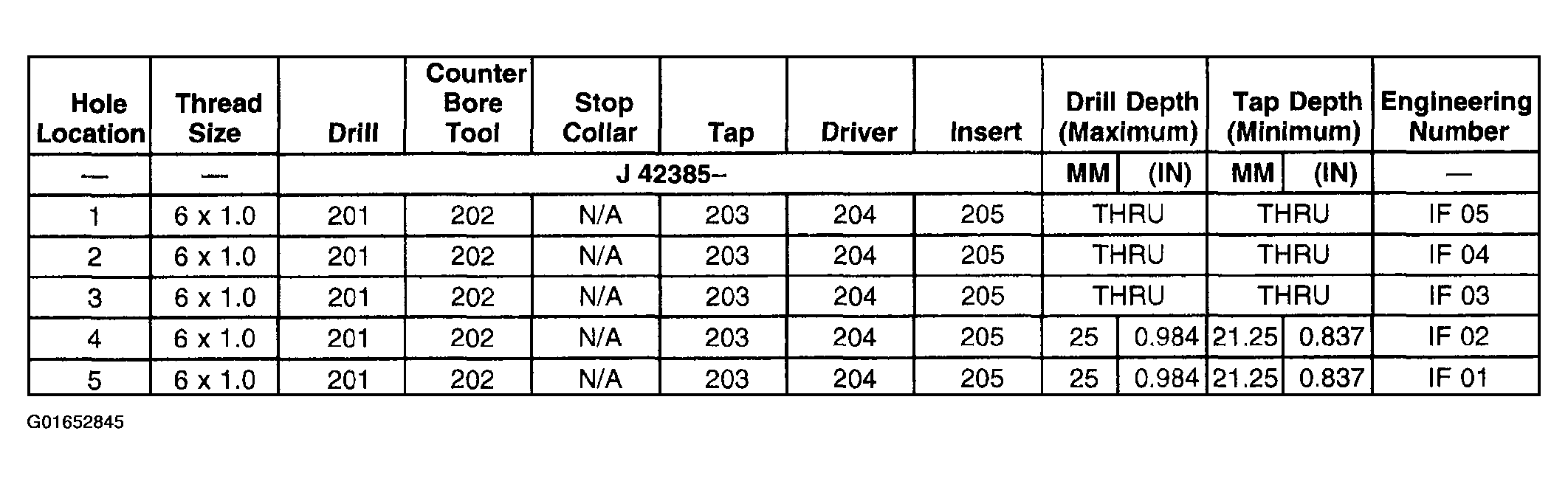

Fig 7: Left Cylinder Head Intake Face (Legend)

G01652845

Courtesy of GENERAL MOTORS CORP.

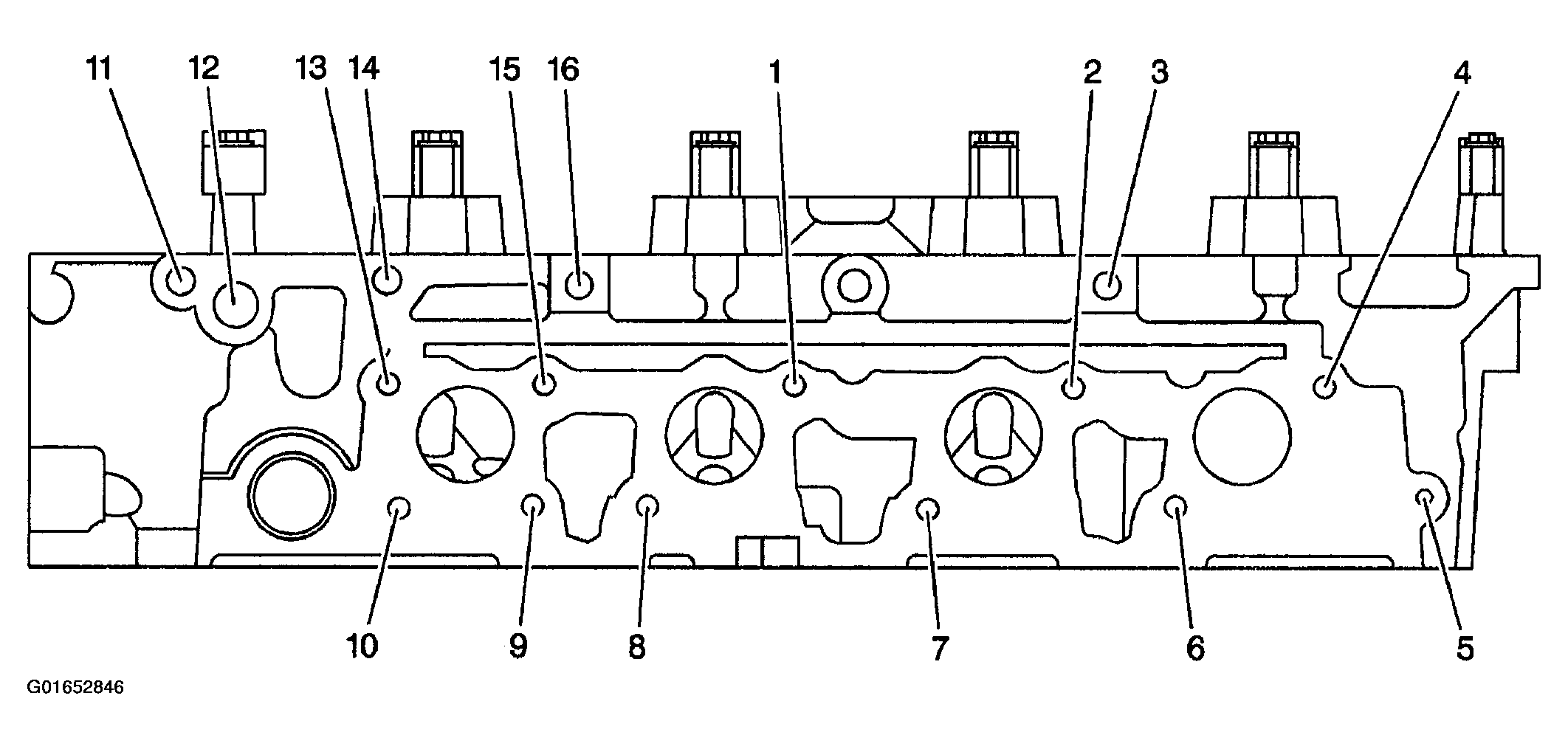

Fig 8: Left Cylinder Head Exhaust Face

G01652846

Courtesy of GENERAL MOTORS CORP.

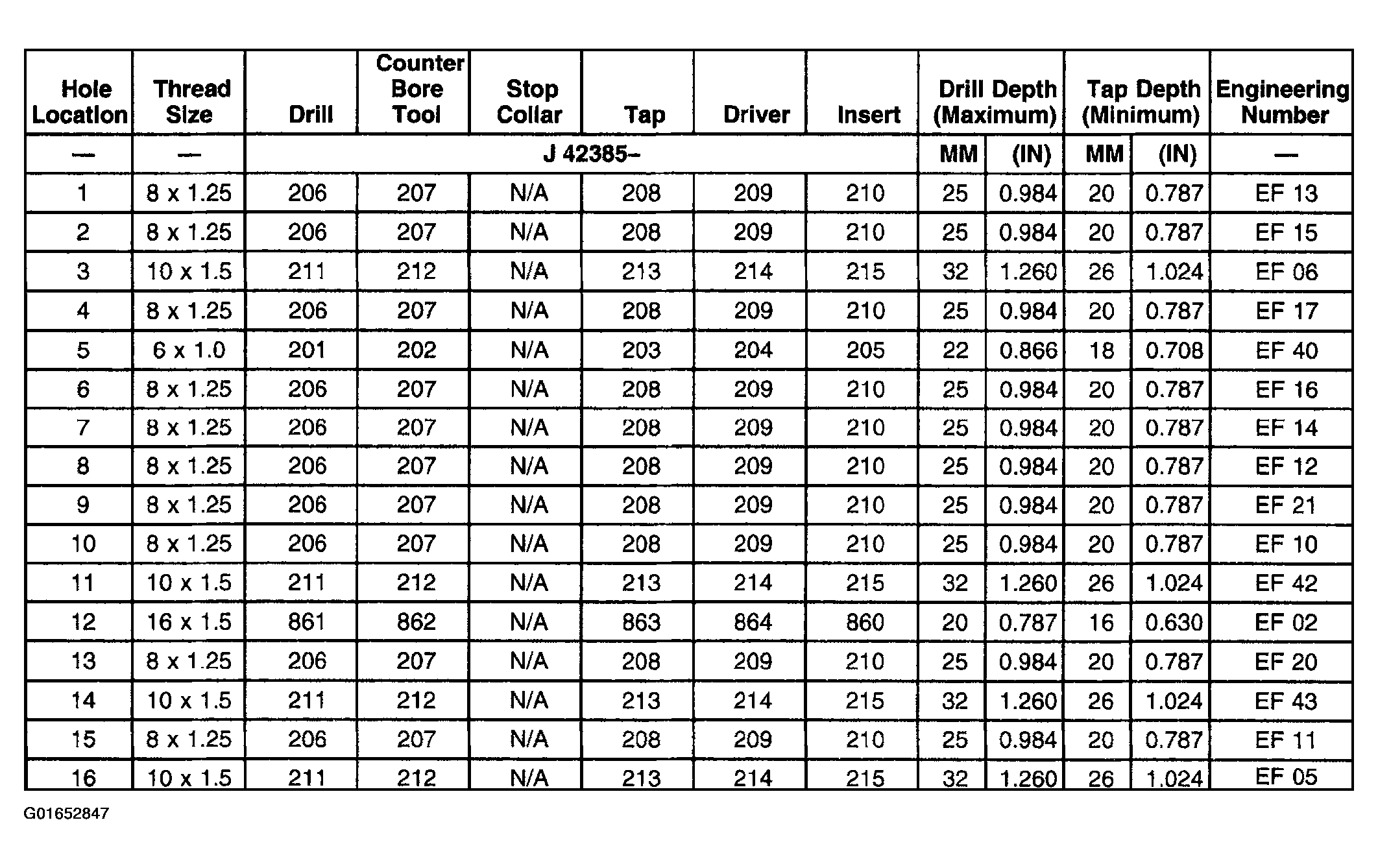

Fig 9: Left Cylinder Head Exhaust Face (Legend)

G01652847

Courtesy of GENERAL MOTORS CORP.

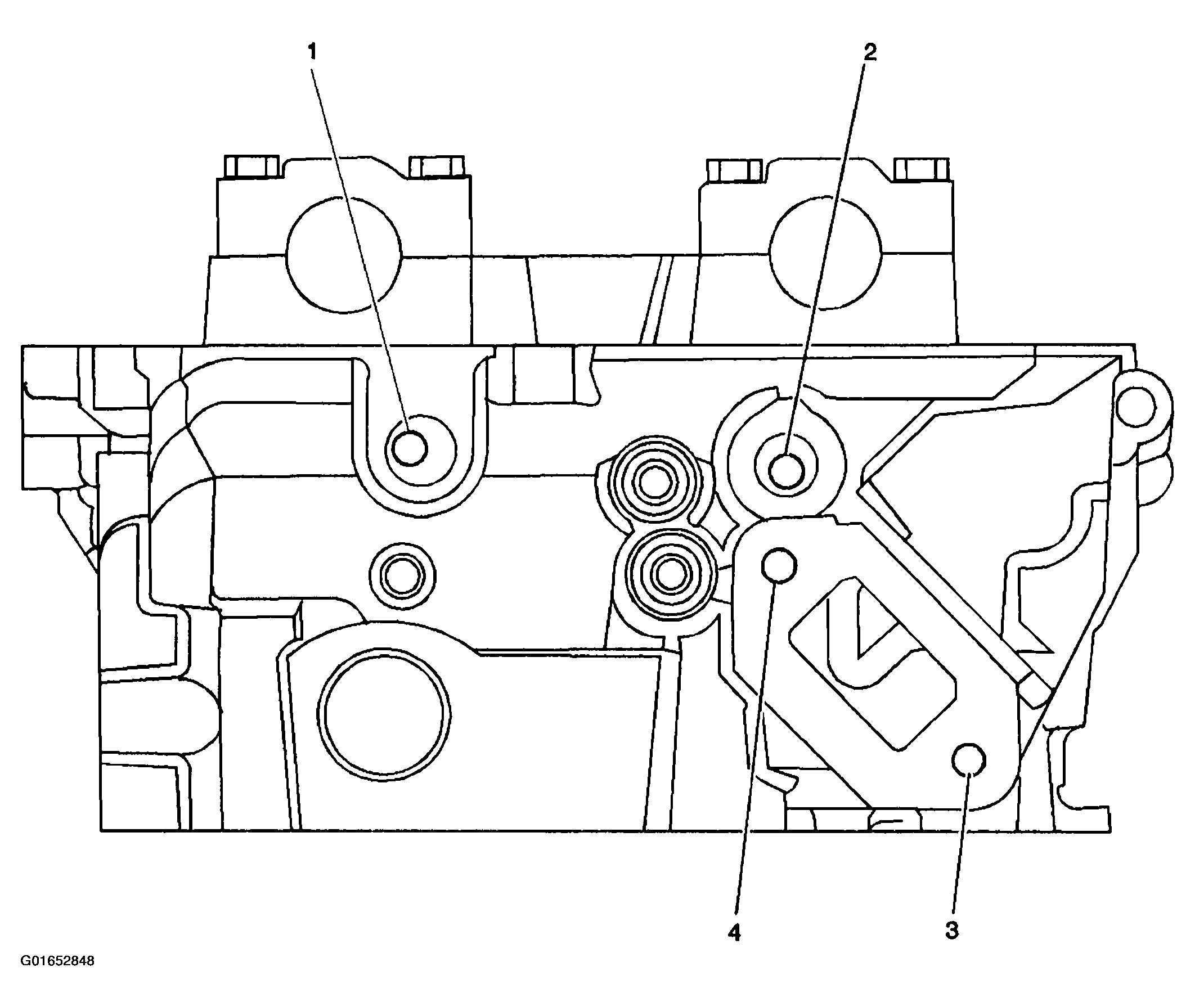

Fig 10: Left Cylinder Head Rear Face

G01652848

Courtesy of GENERAL MOTORS CORP.

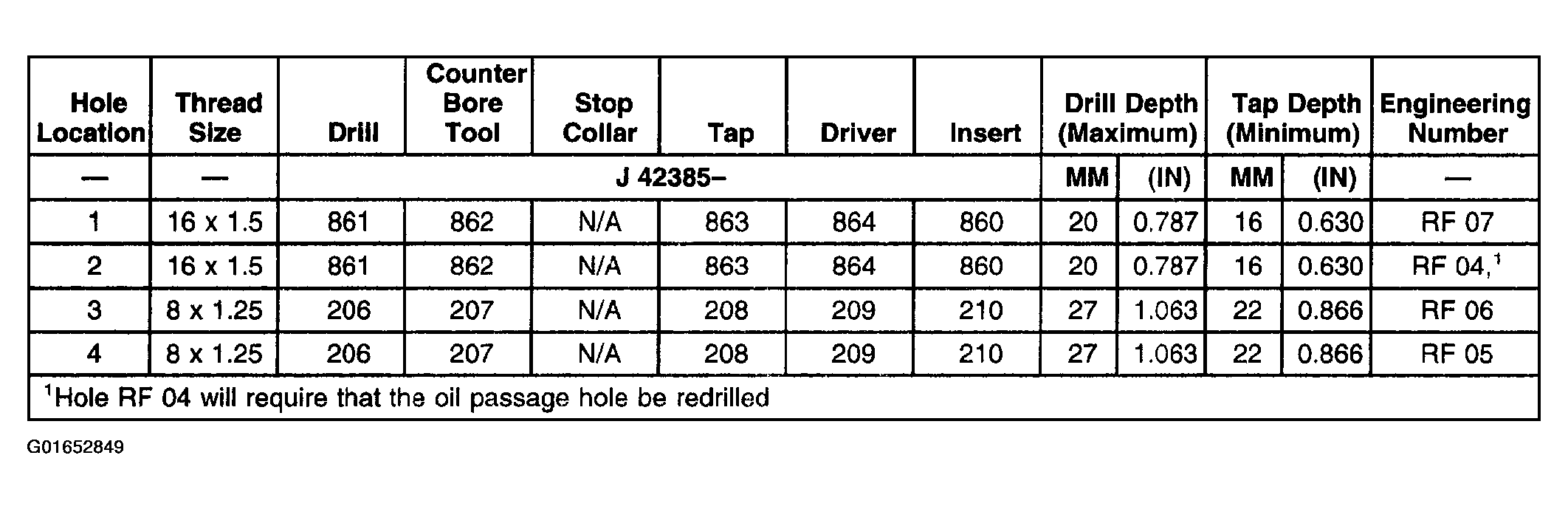

Fig 11: Left Cylinder Head Rear Face (Legend)

G01652849

Courtesy of GENERAL MOTORS CORP.

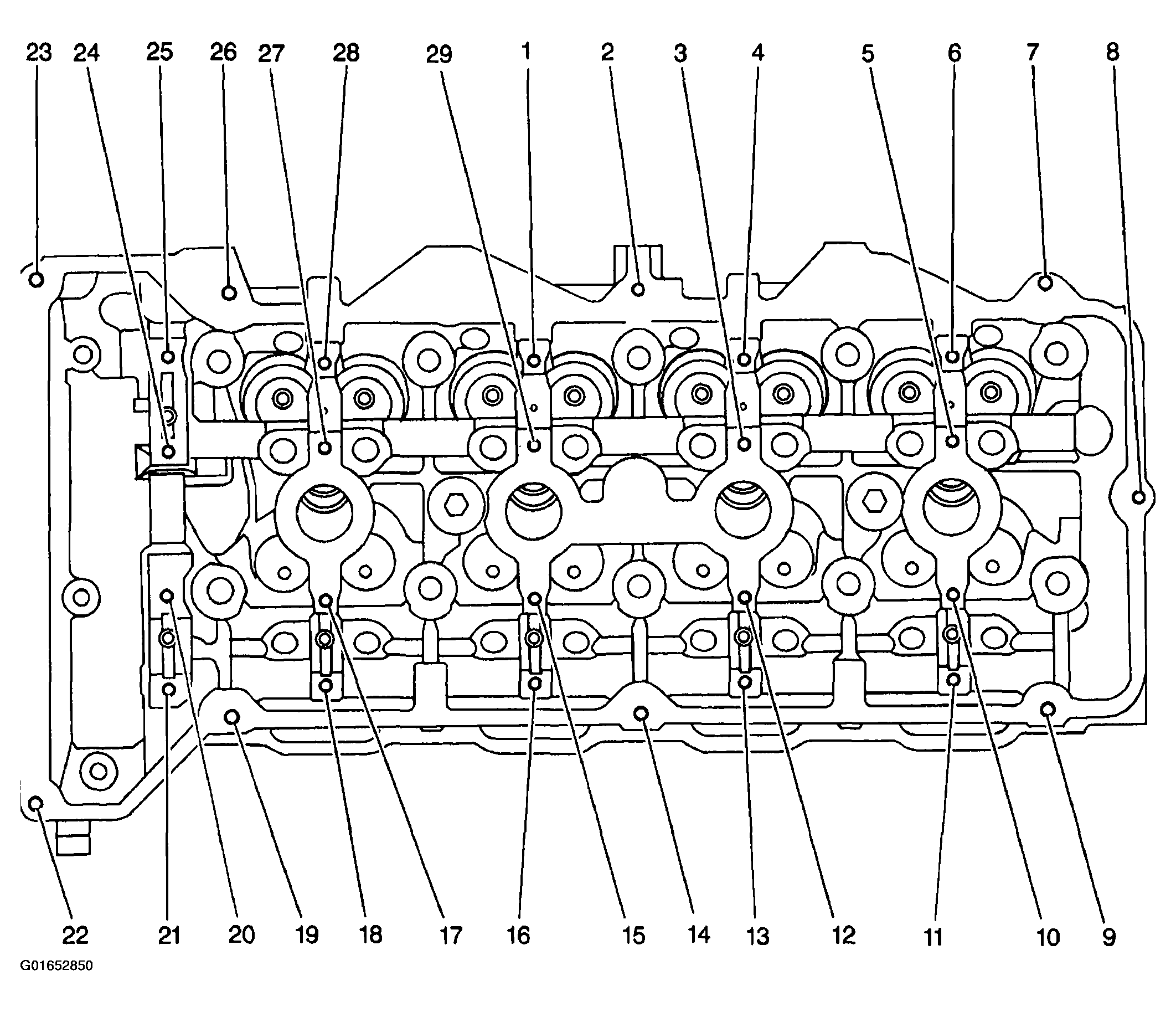

Fig 12: Right Cylinder Head Camshaft Cover Face

G01652850

Courtesy of GENERAL MOTORS CORP.

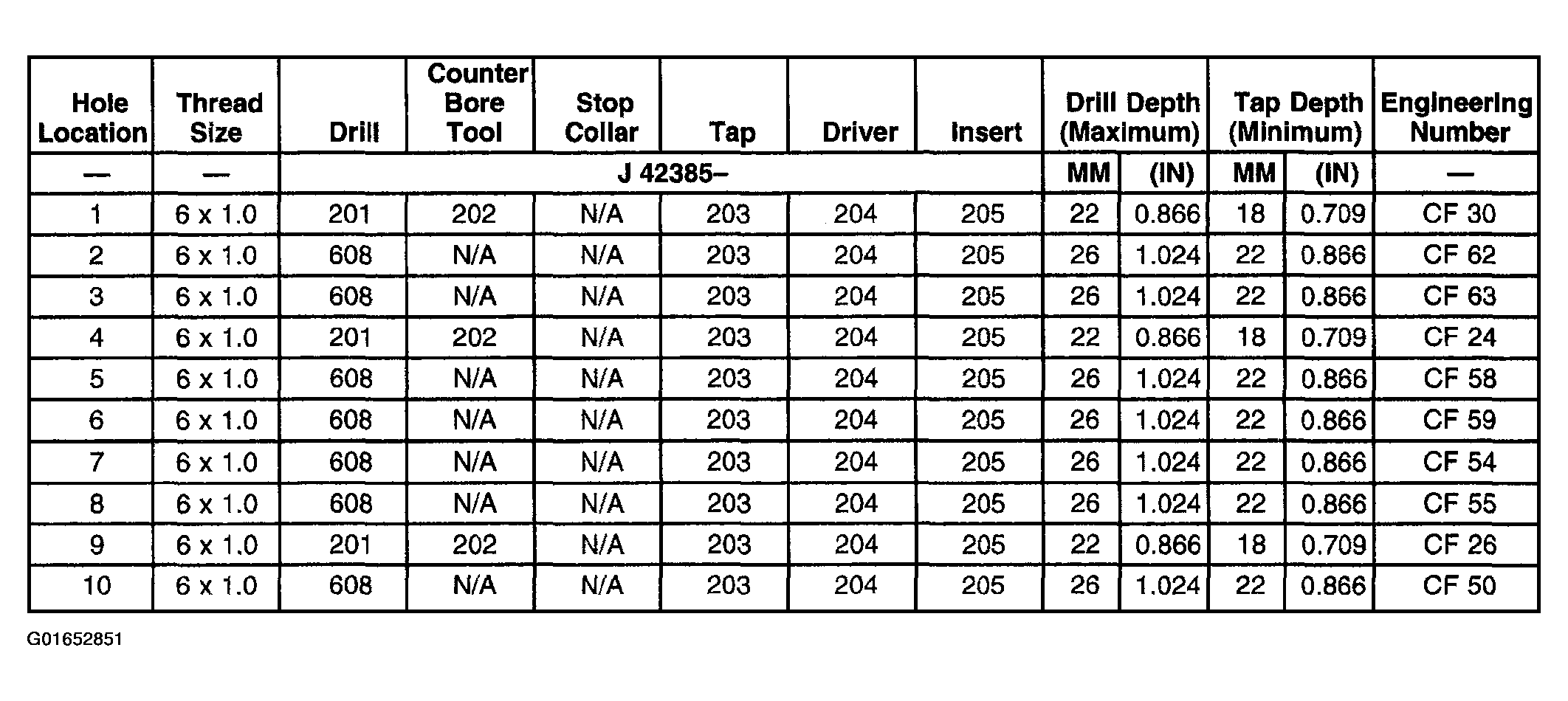

Fig 13: Right Cylinder Head Camshaft Cover Face (Legend 1 Of 2)

G01652851

Courtesy of GENERAL MOTORS CORP.

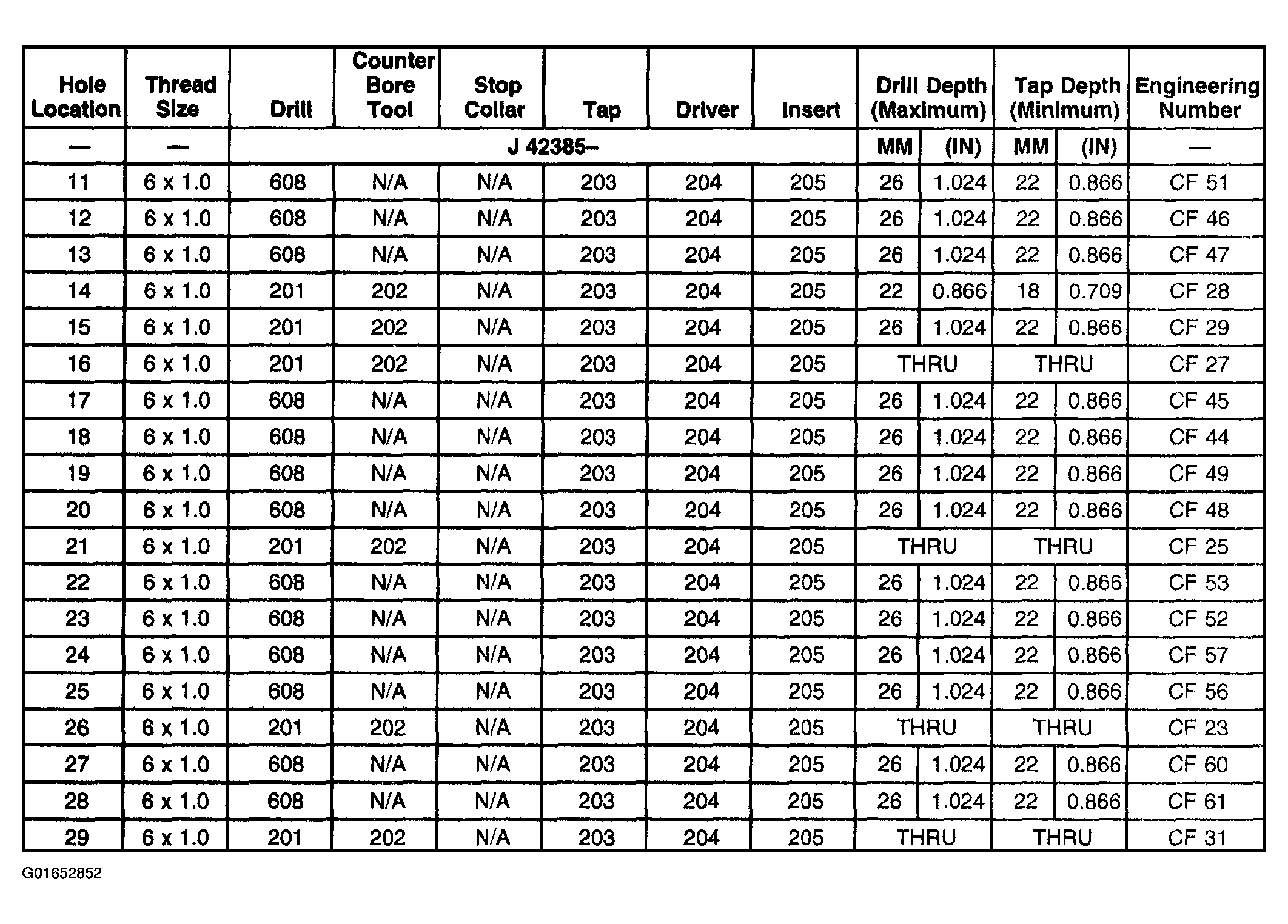

Fig 14: Right Cylinder Head Camshaft Cover Face (2 Of 2Legend)

G01652852

Courtesy of GENERAL MOTORS CORP.

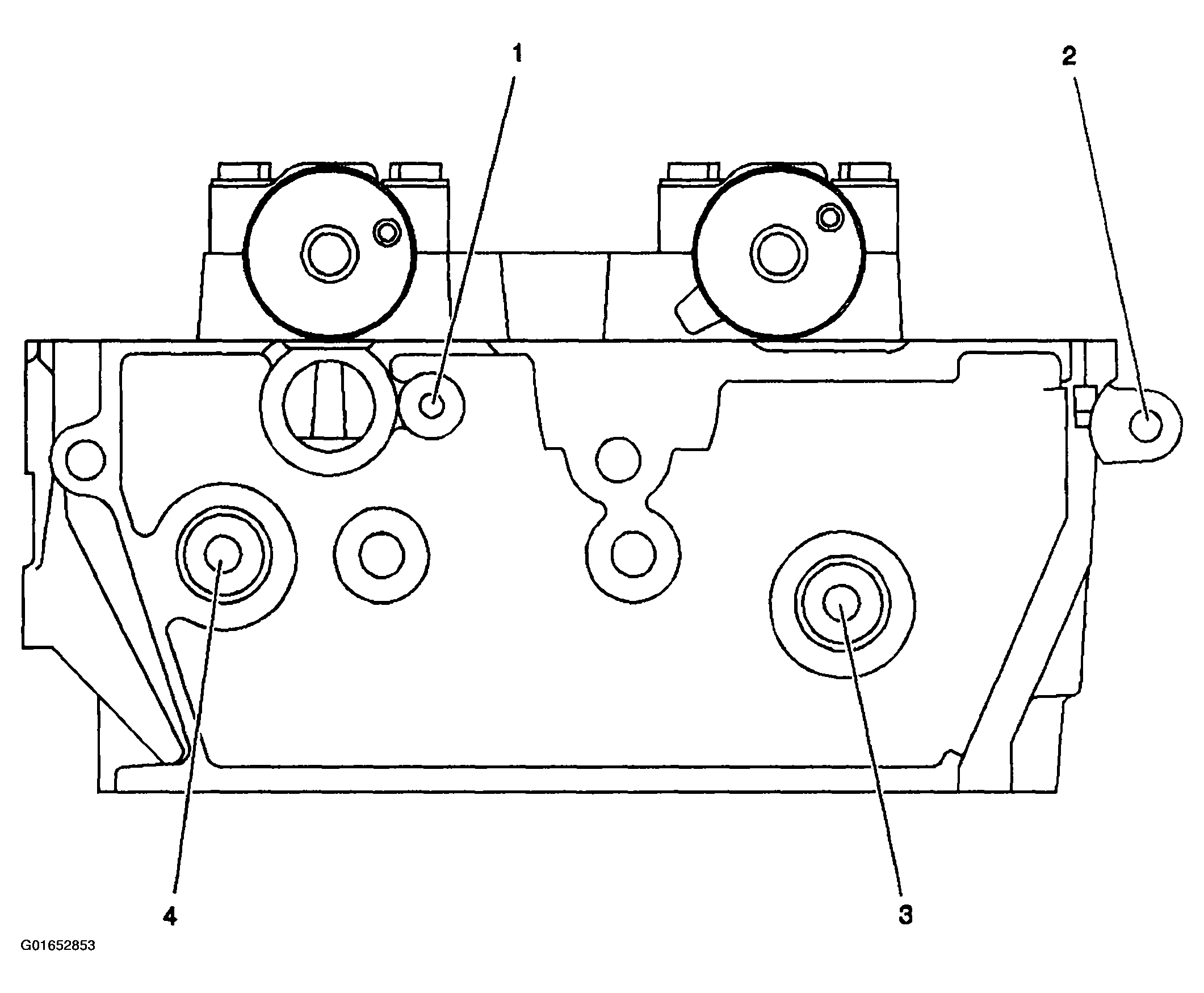

Fig 15: Right Cylinder Head Front Face

G01652853

Courtesy of GENERAL MOTORS CORP.

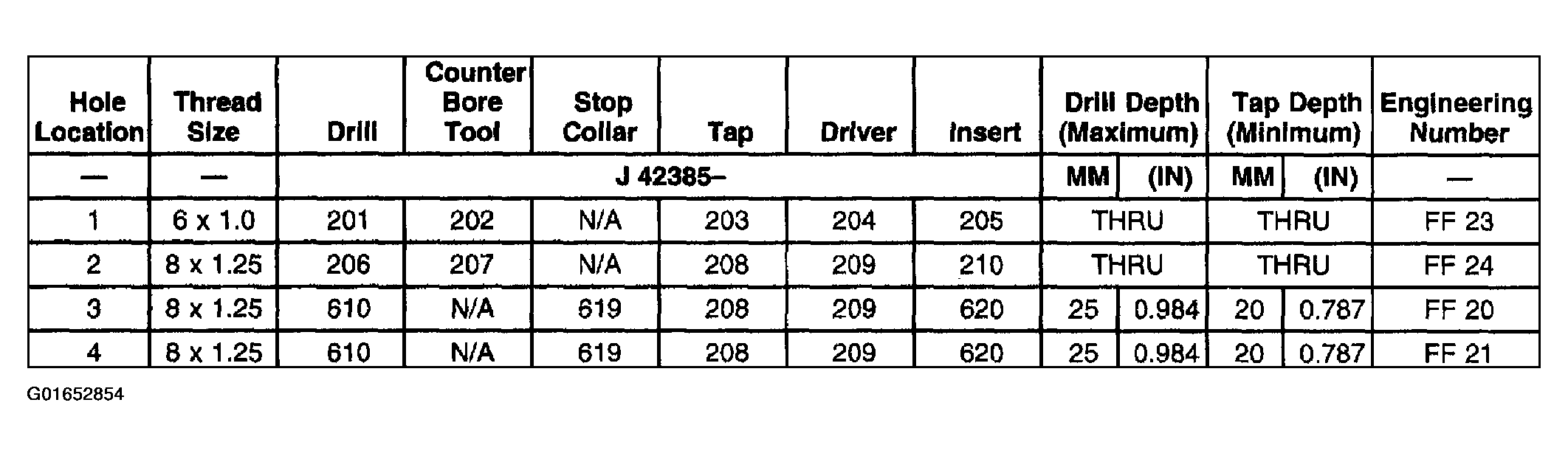

Fig 16: Right Cylinder Head Front Face (Legend)

G01652854

Courtesy of GENERAL MOTORS CORP.

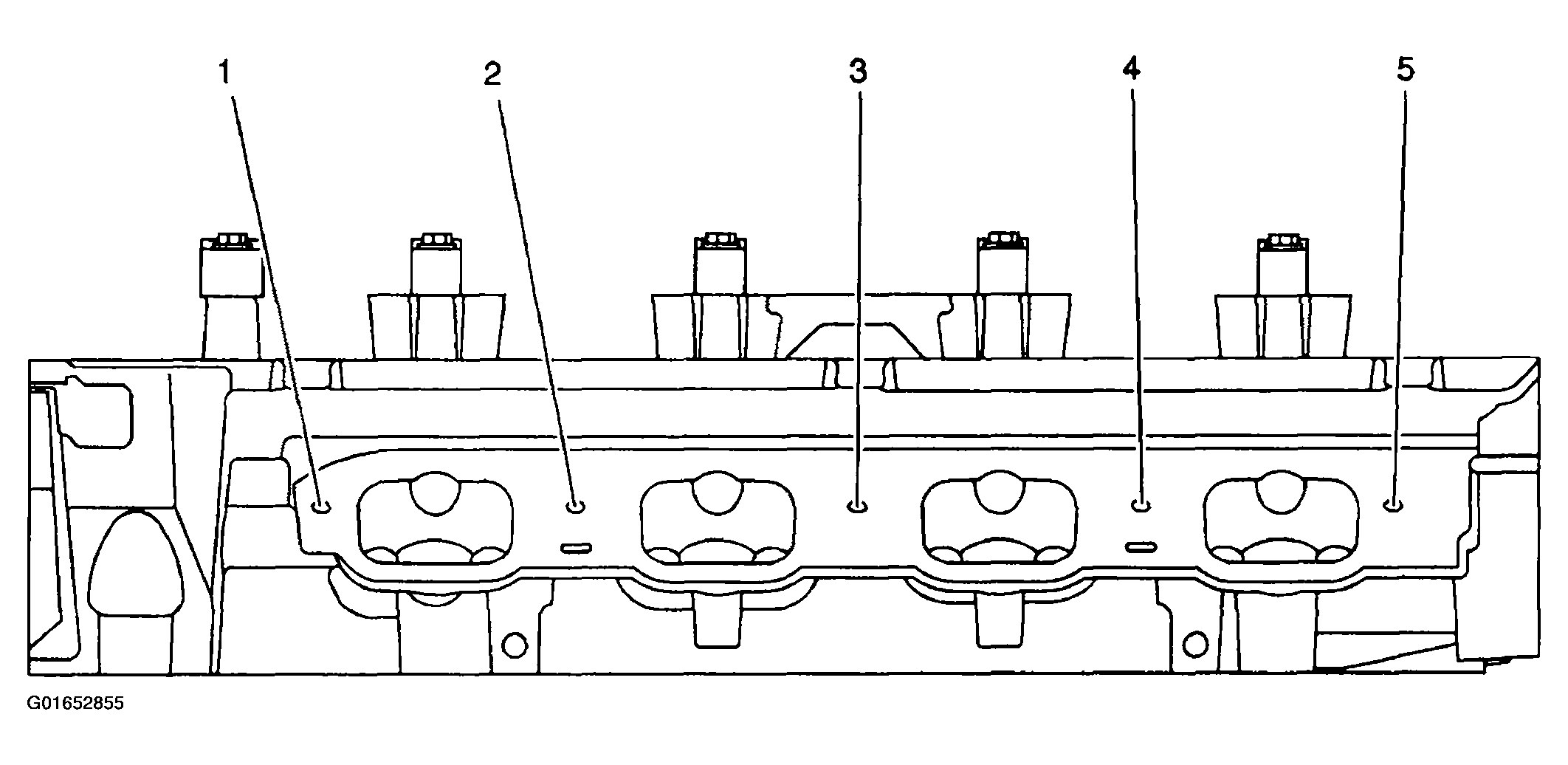

Fig 17: Right Cylinder Head Intake Face

G01652855

Courtesy of GENERAL MOTORS CORP.

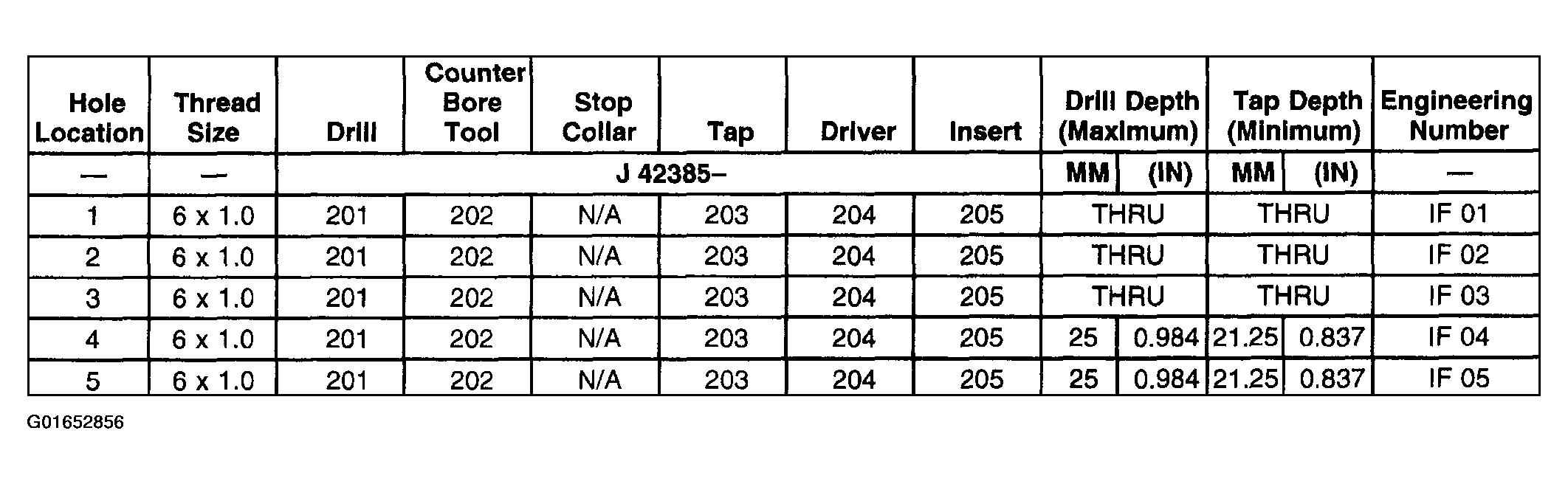

Fig 18: Right Cylinder Head Intake Face (Legend)

G01652856

Courtesy of GENERAL MOTORS CORP.

Fig 19: Right Cylinder Head Exhaust Face

G01652857

Courtesy of GENERAL MOTORS CORP.

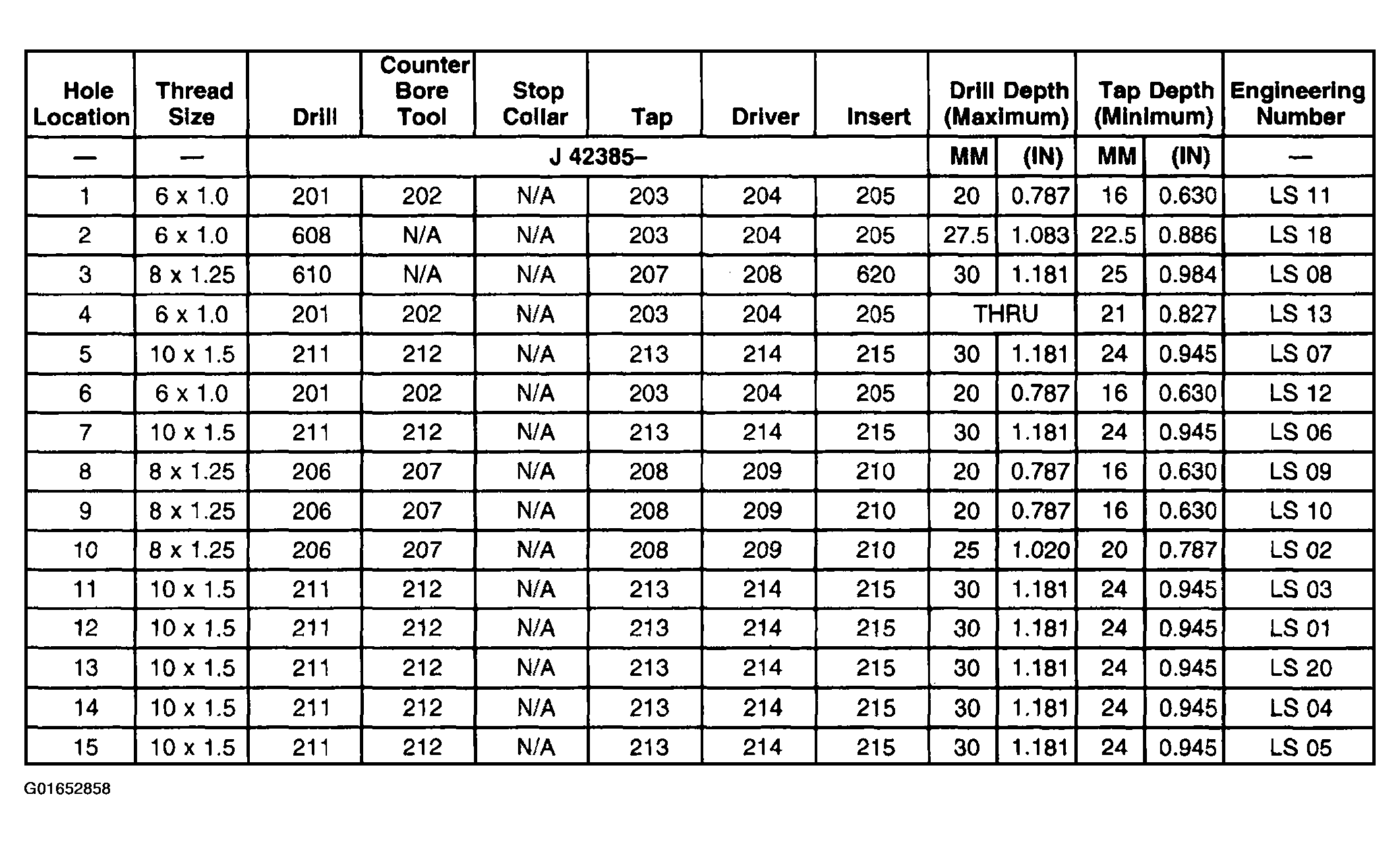

Fig 20: Right Cylinder Head Exhaust Face (Legend)

G01652858

Courtesy of GENERAL MOTORS CORP.

Fig 21: Right Cylinder Head Rear Face

G01652859

Courtesy of GENERAL MOTORS CORP.

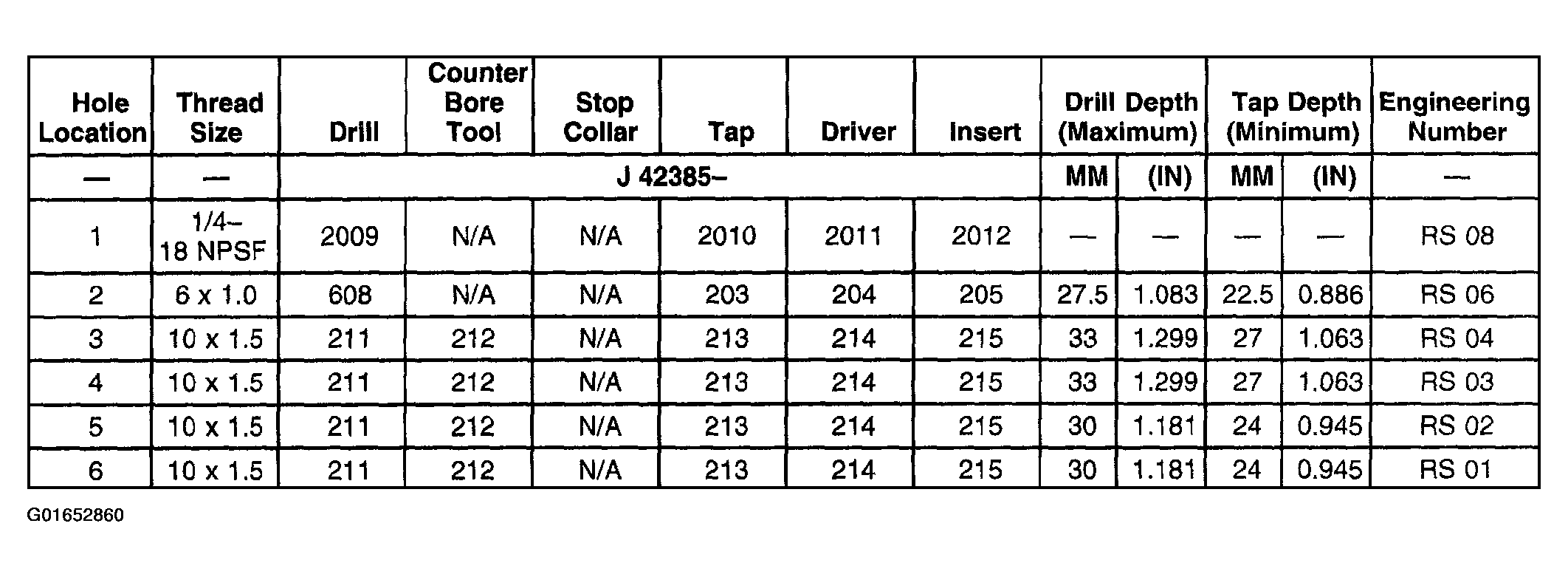

Fig 22: Right Cylinder Head Rear Face (Legend)

G01652860

Courtesy of GENERAL MOTORS CORP.

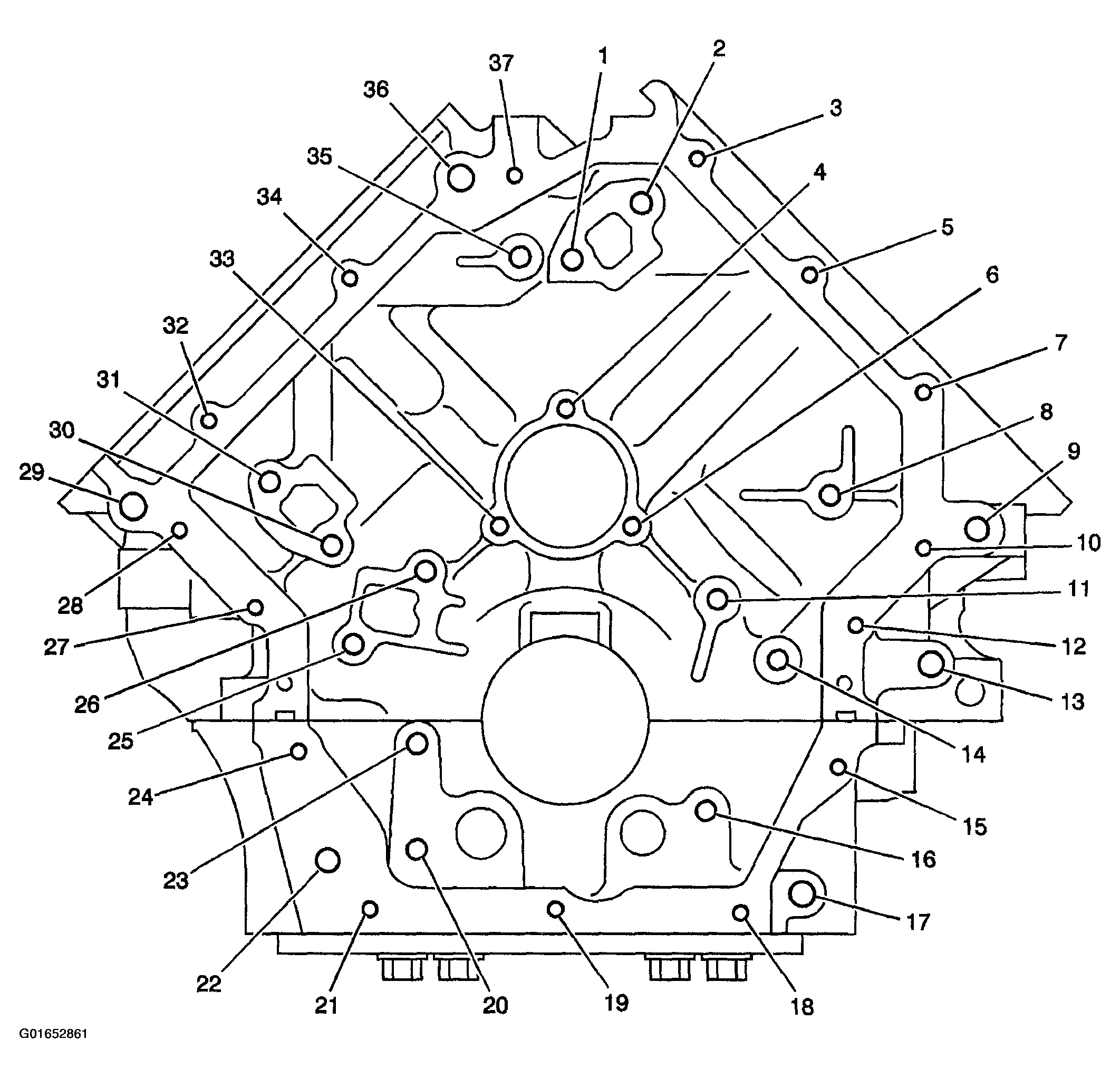

Fig 23: Engine Block Front

G01652861

Courtesy of GENERAL MOTORS CORP.

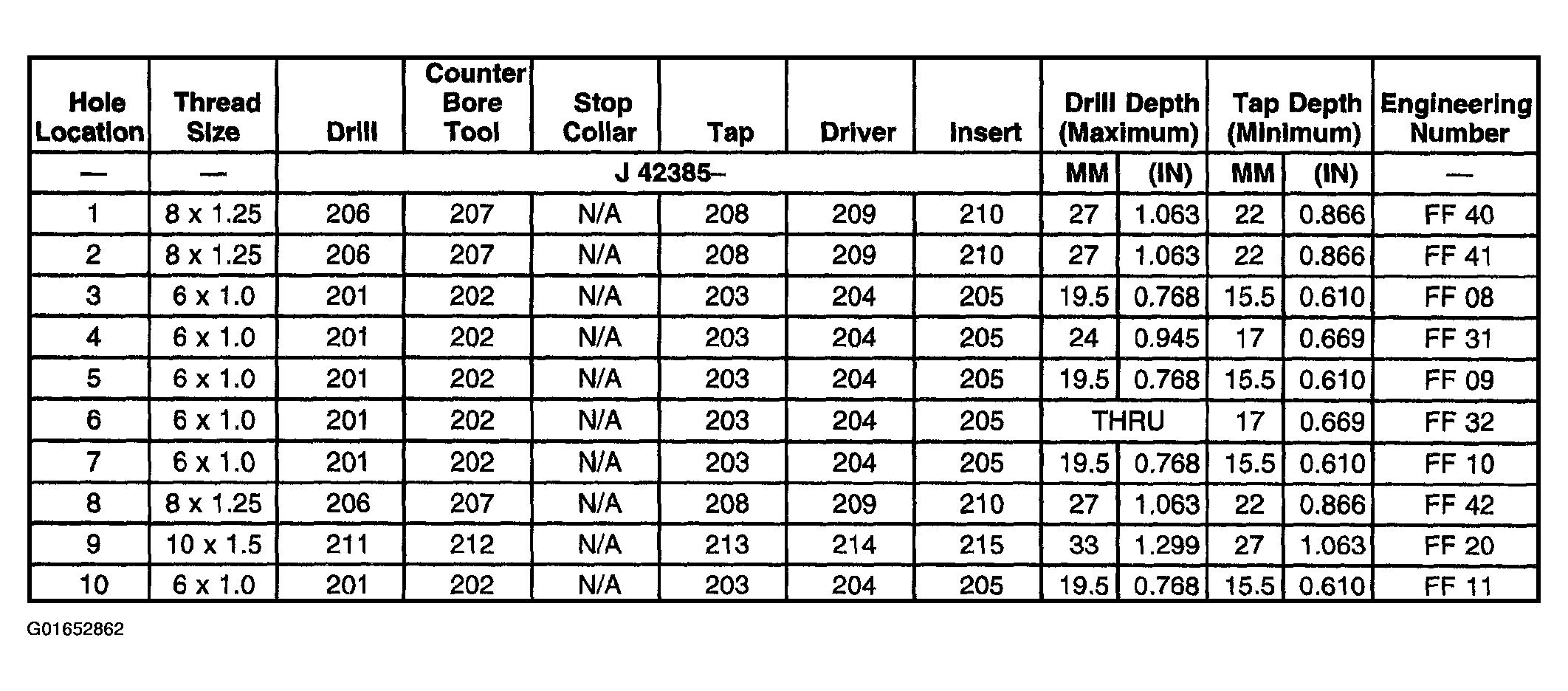

Fig 24: Engine Block Front (Legend 1 Of 2)

G01652862

Courtesy of GENERAL MOTORS CORP.

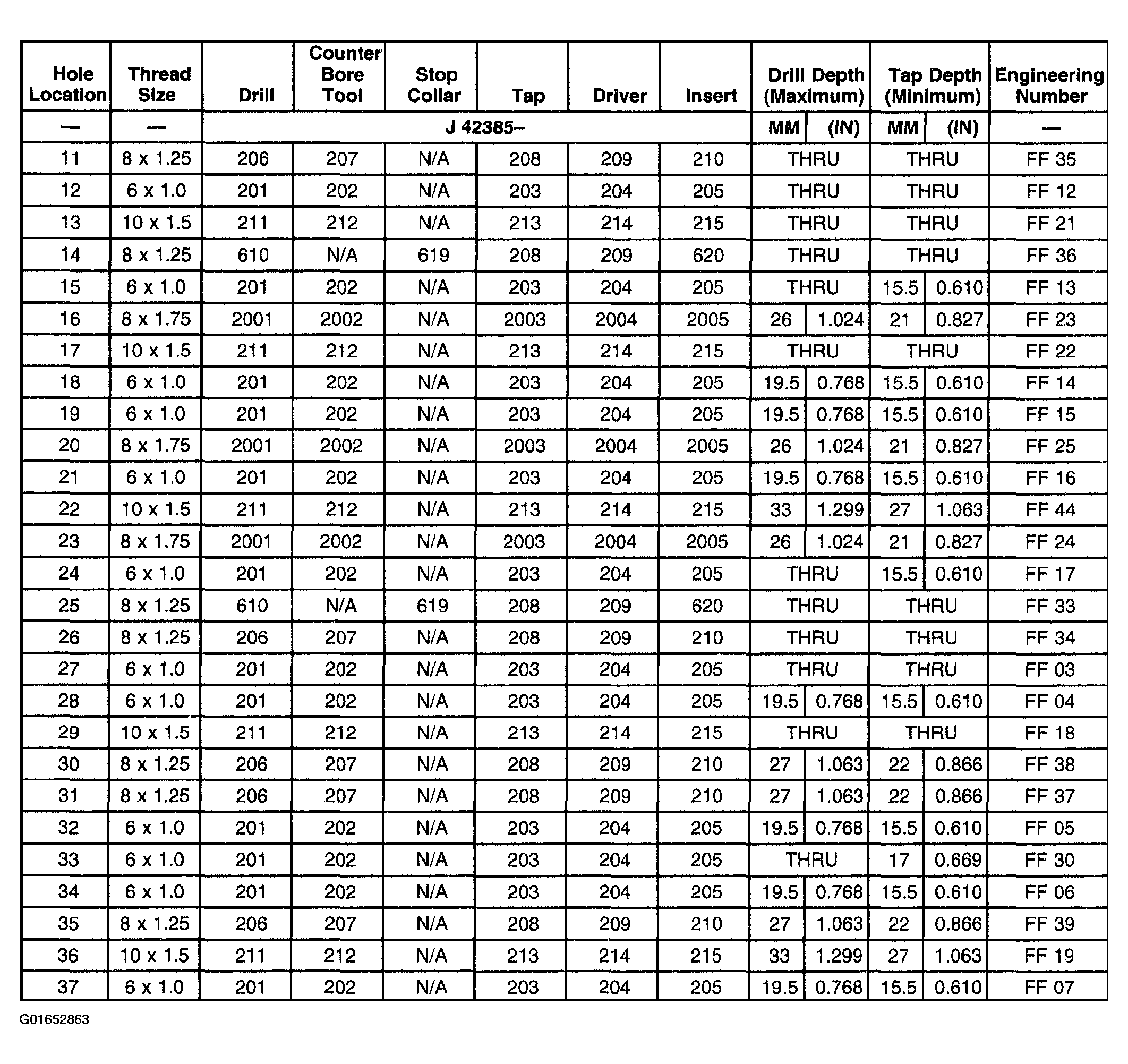

Fig 25: Engine Block Front (Legend 2 Of 2)

G01652863

Courtesy of GENERAL MOTORS CORP.

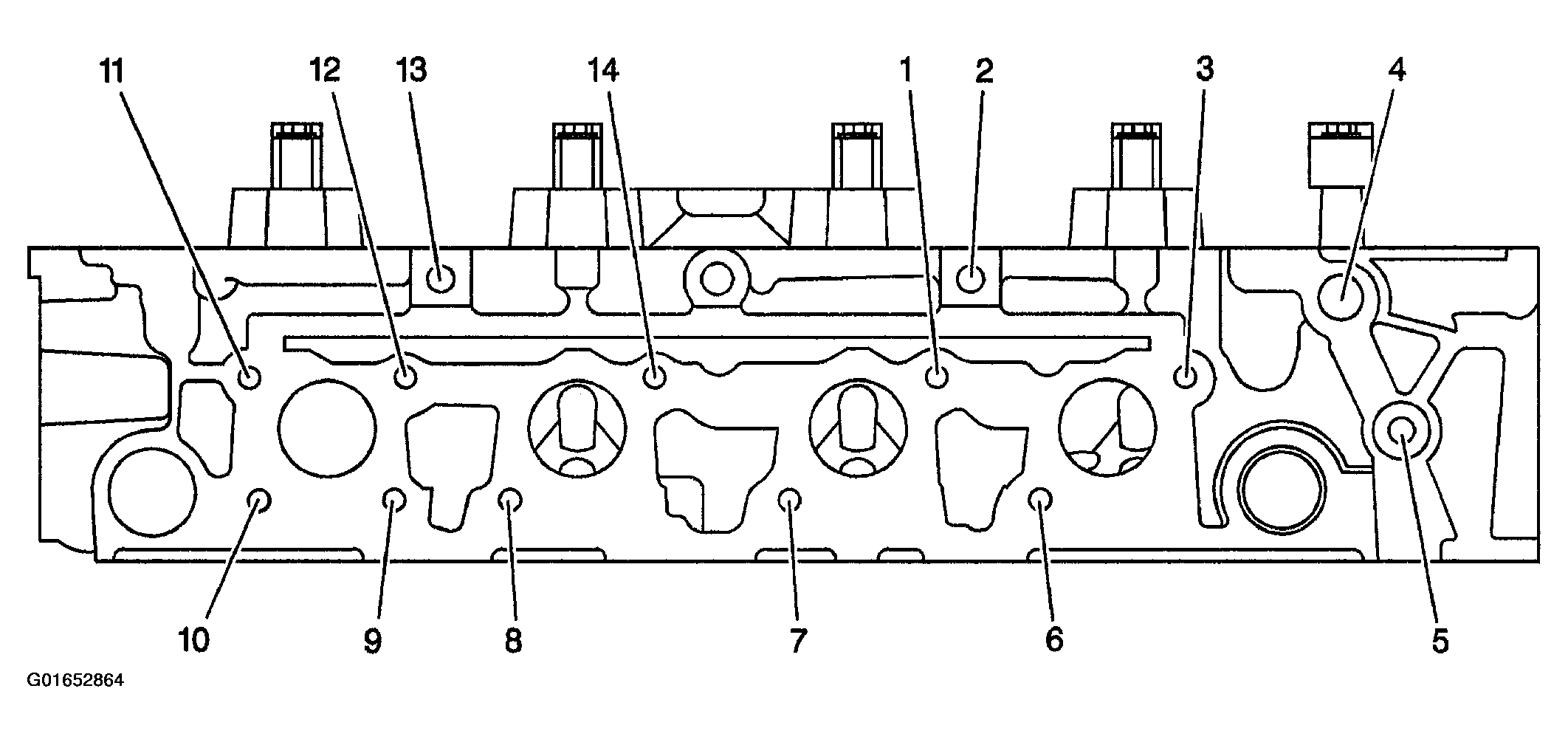

Fig 26: Engine Block Left Side

G01652864

Courtesy of GENERAL MOTORS CORP.

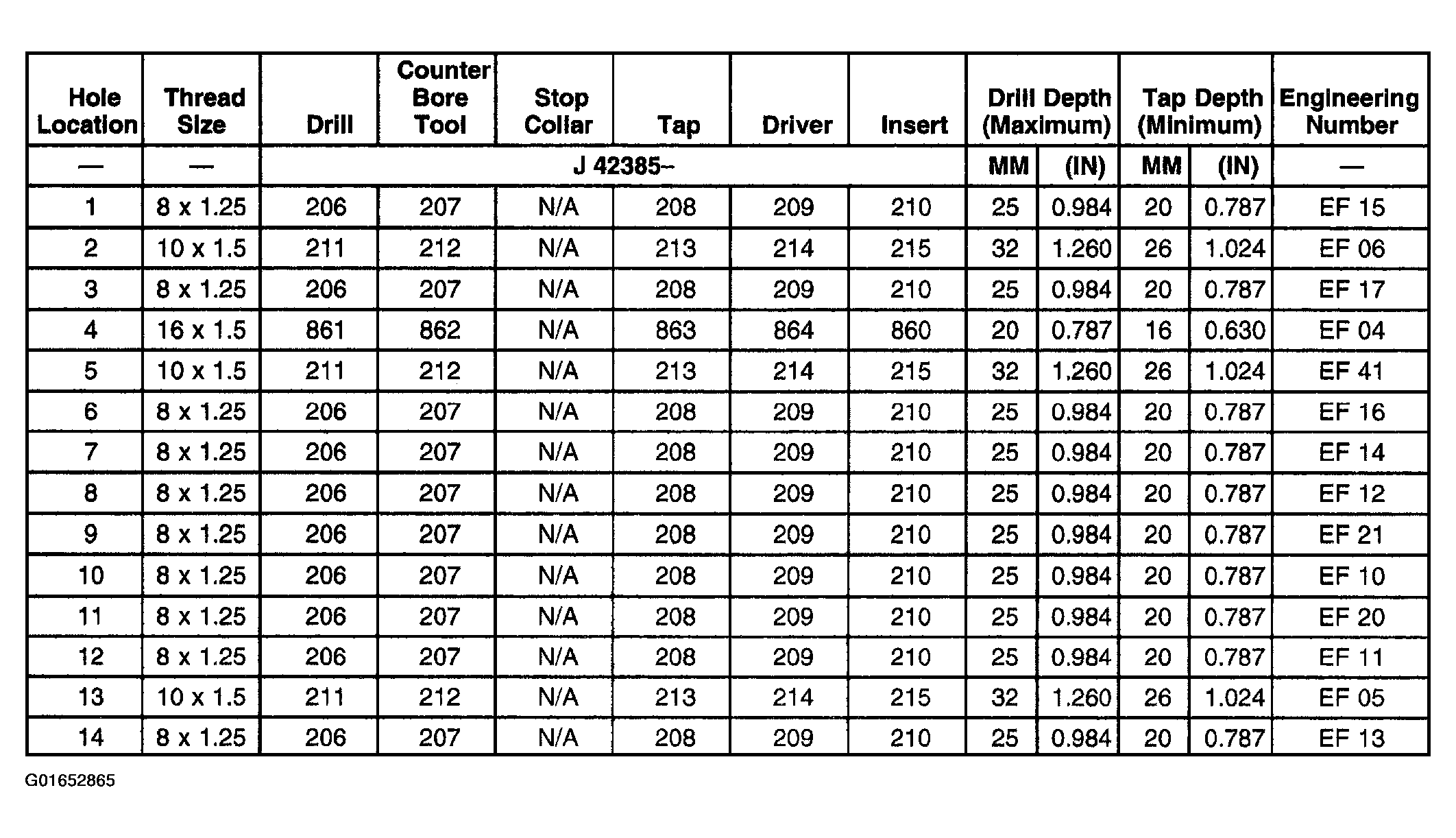

Fig 27: Engine Block Left Side (Legend)

G01652865

Courtesy of GENERAL MOTORS CORP.

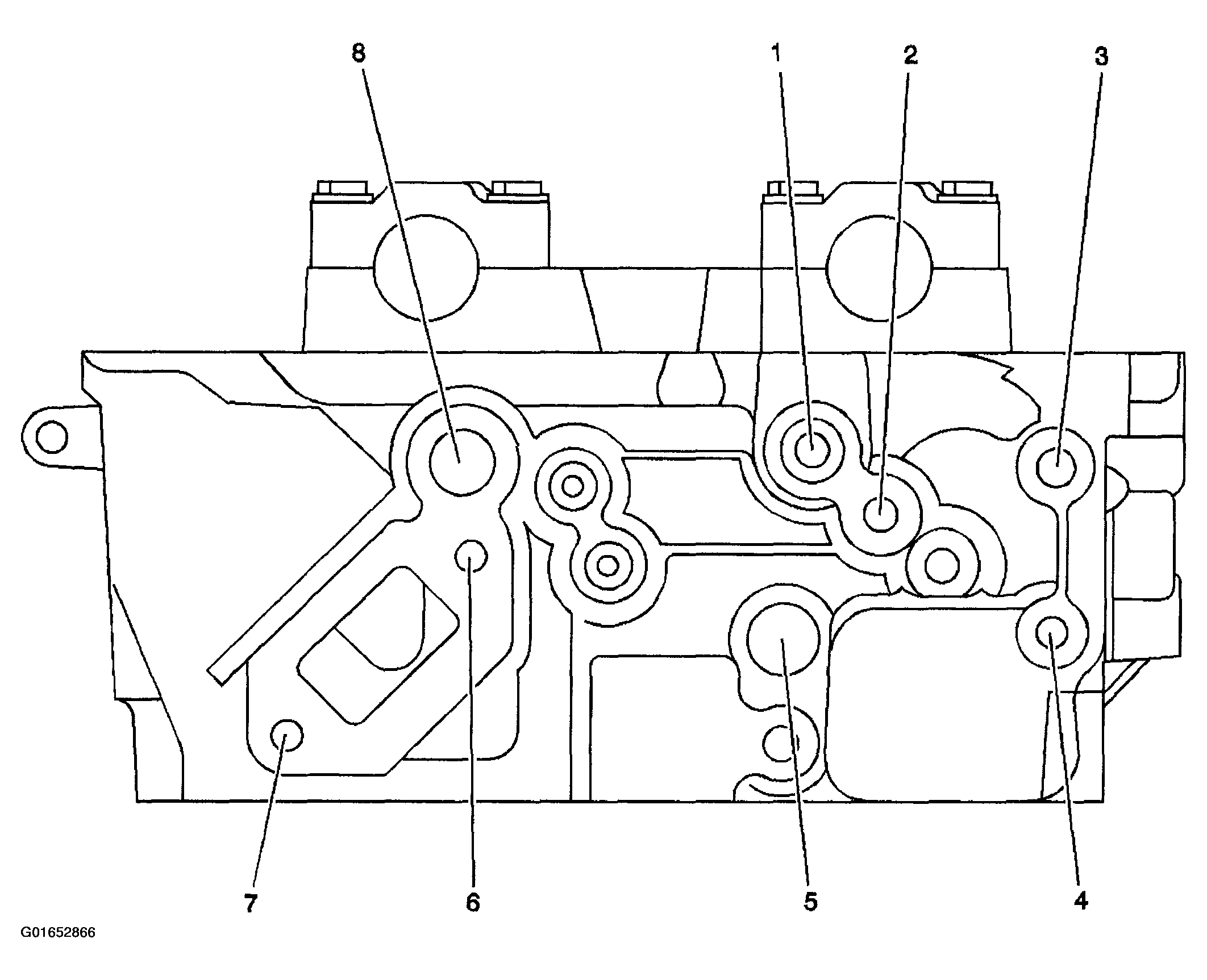

Fig 28: Engine Block Right Side

G01652866

Courtesy of GENERAL MOTORS CORP.

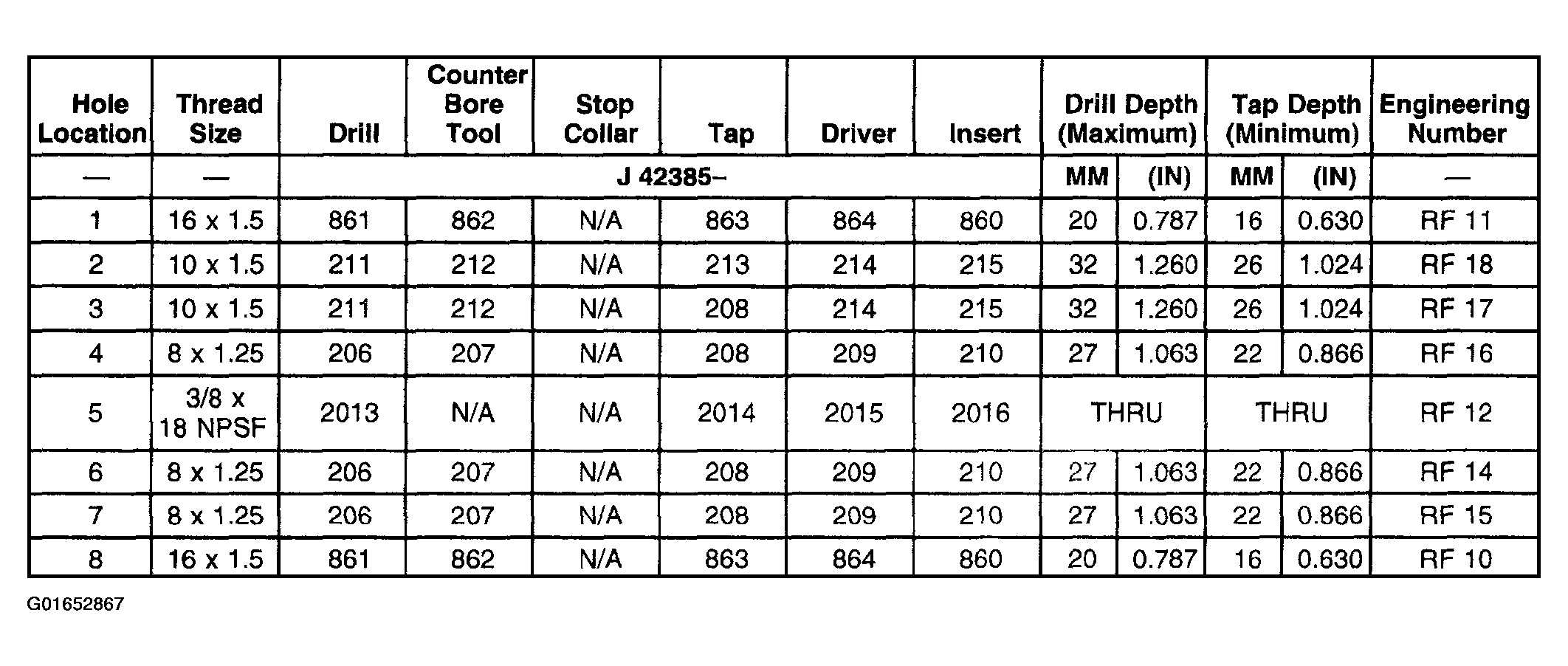

Fig 29: Engine Block Right Side (Legend)

G01652867

Courtesy of GENERAL MOTORS CORP.

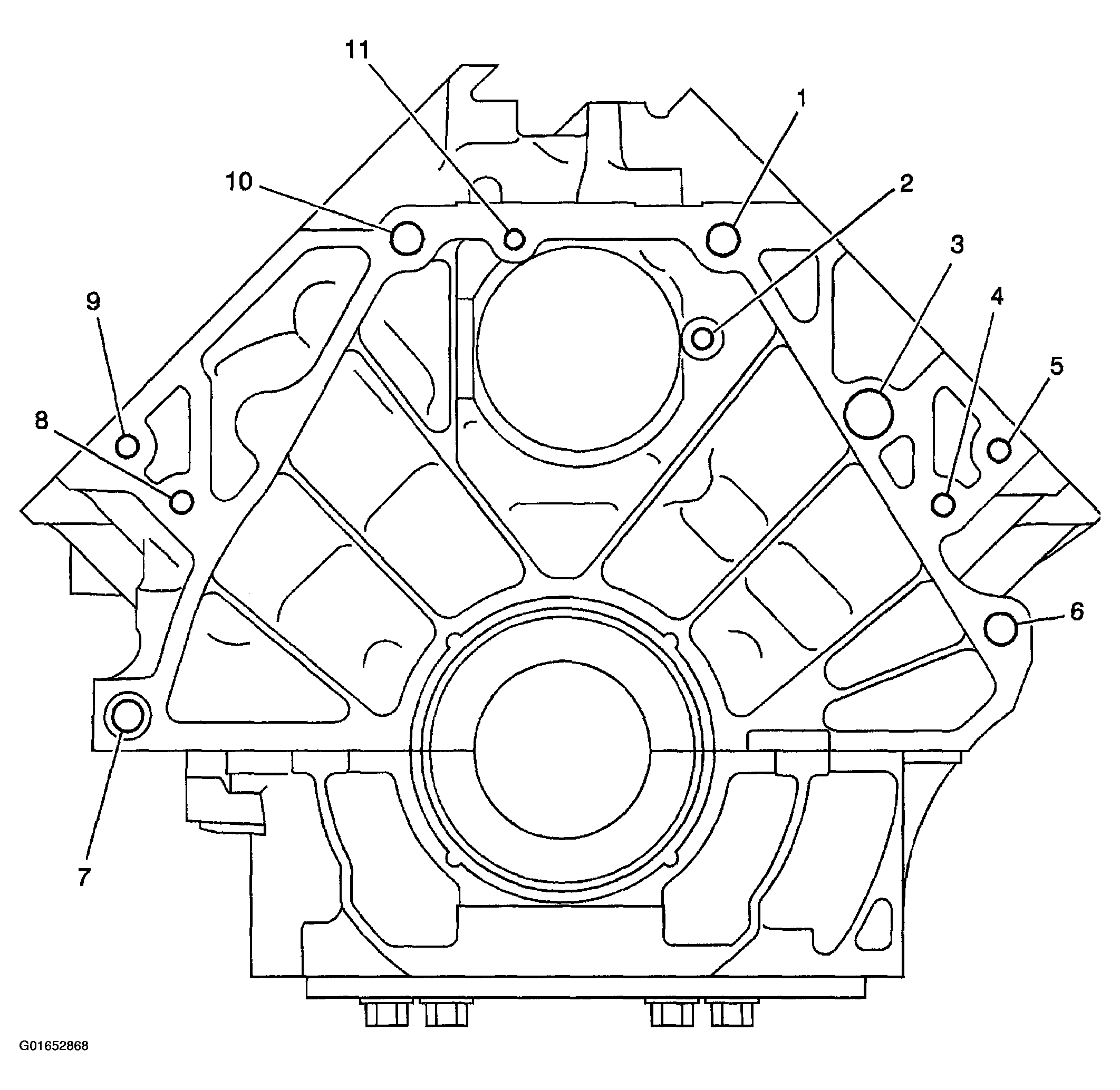

Fig 30: Engine Block Rear

G01652868

Courtesy of GENERAL MOTORS CORP.

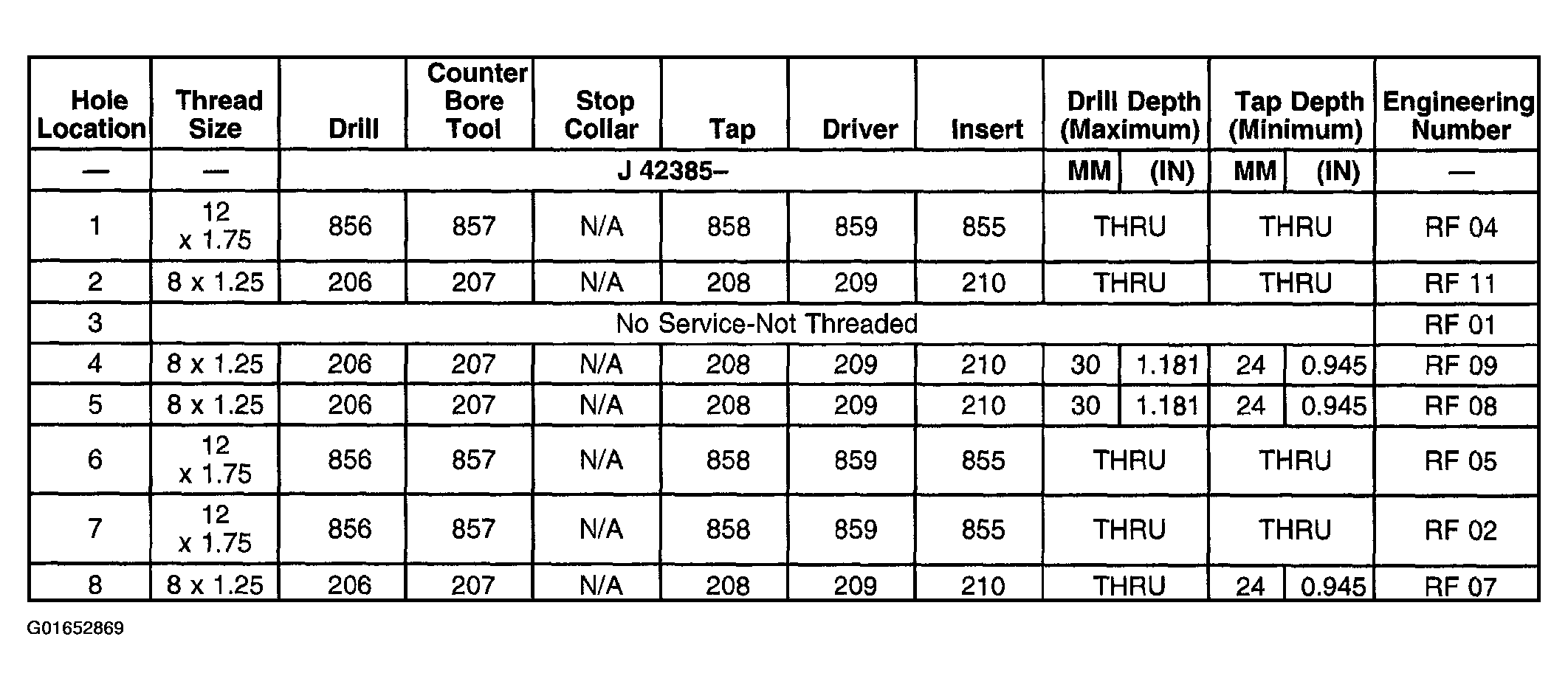

Fig 31: Engine Block Rear (Legend 1 Of 2)

G01652869

Courtesy of GENERAL MOTORS CORP.

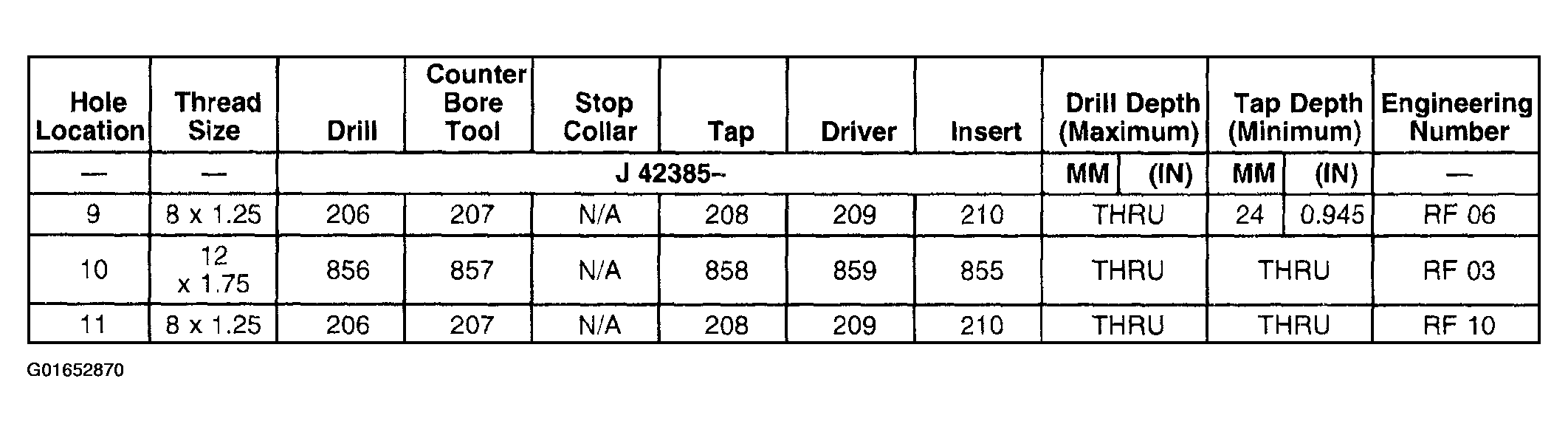

Fig 32: Engine Block Rear (Legend 2 Of 2)

G01652870

Courtesy of GENERAL MOTORS CORP.

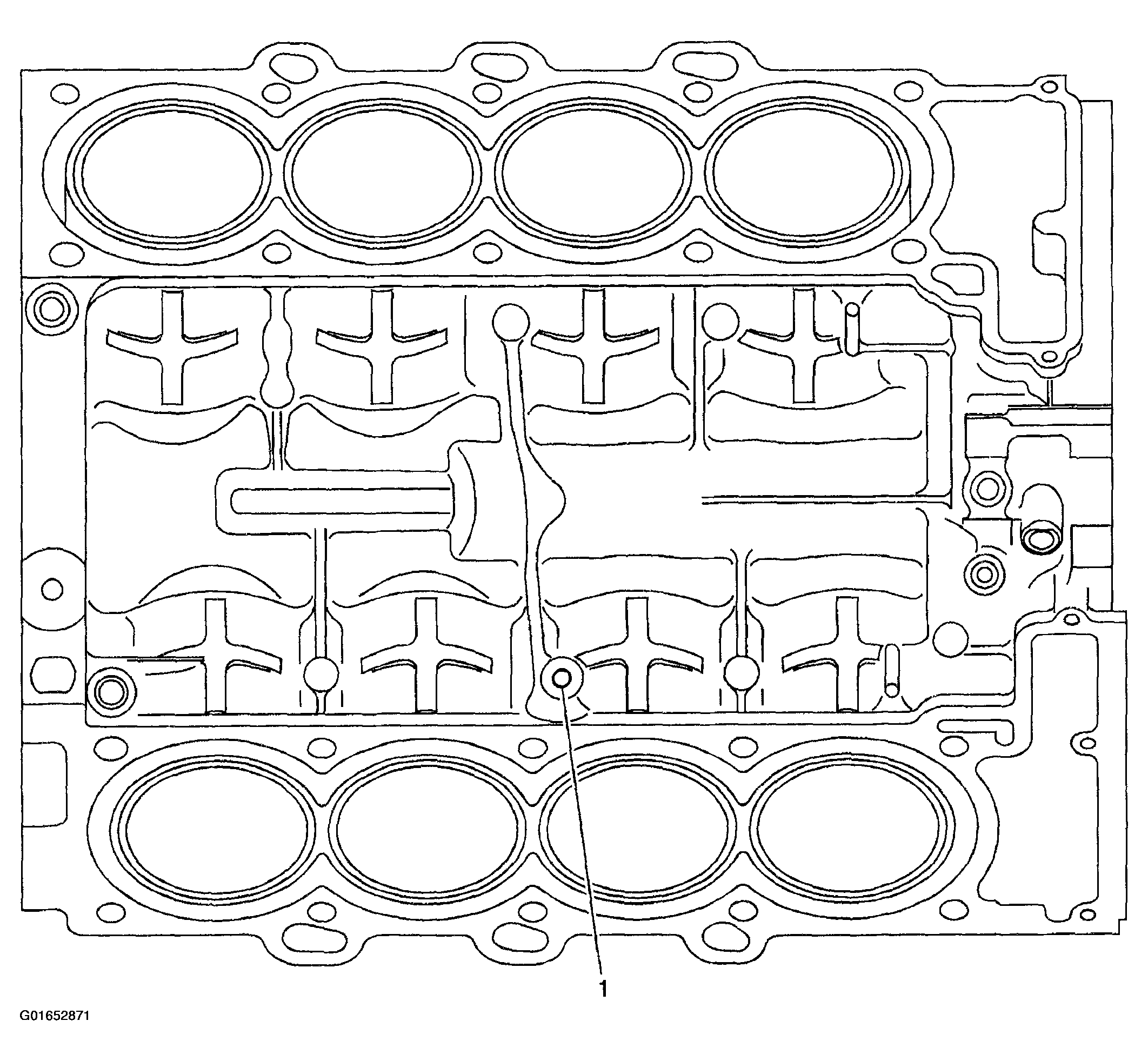

Fig 33: Engine Block Top

G01652871

Courtesy of GENERAL MOTORS CORP.

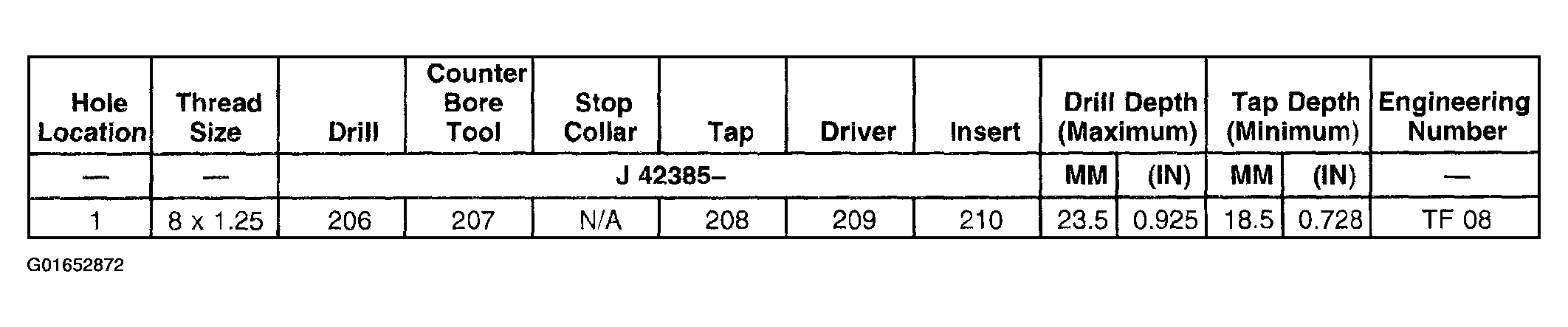

Fig 34: Engine Block Top (Legend)

G01652872

Courtesy of GENERAL MOTORS CORP.

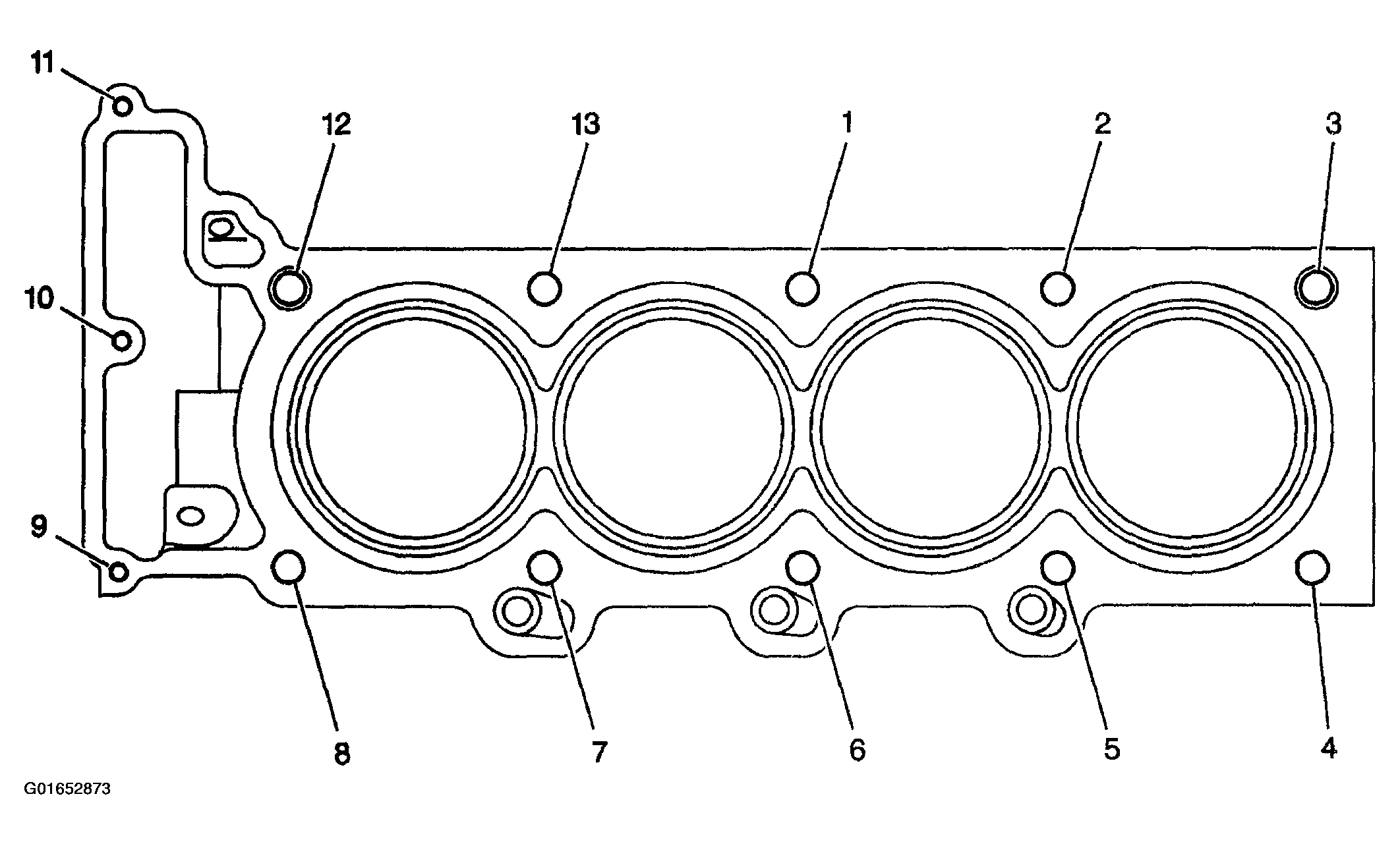

Fig 35: Engine Block Left Deck Face

G01652873

Courtesy of GENERAL MOTORS CORP.

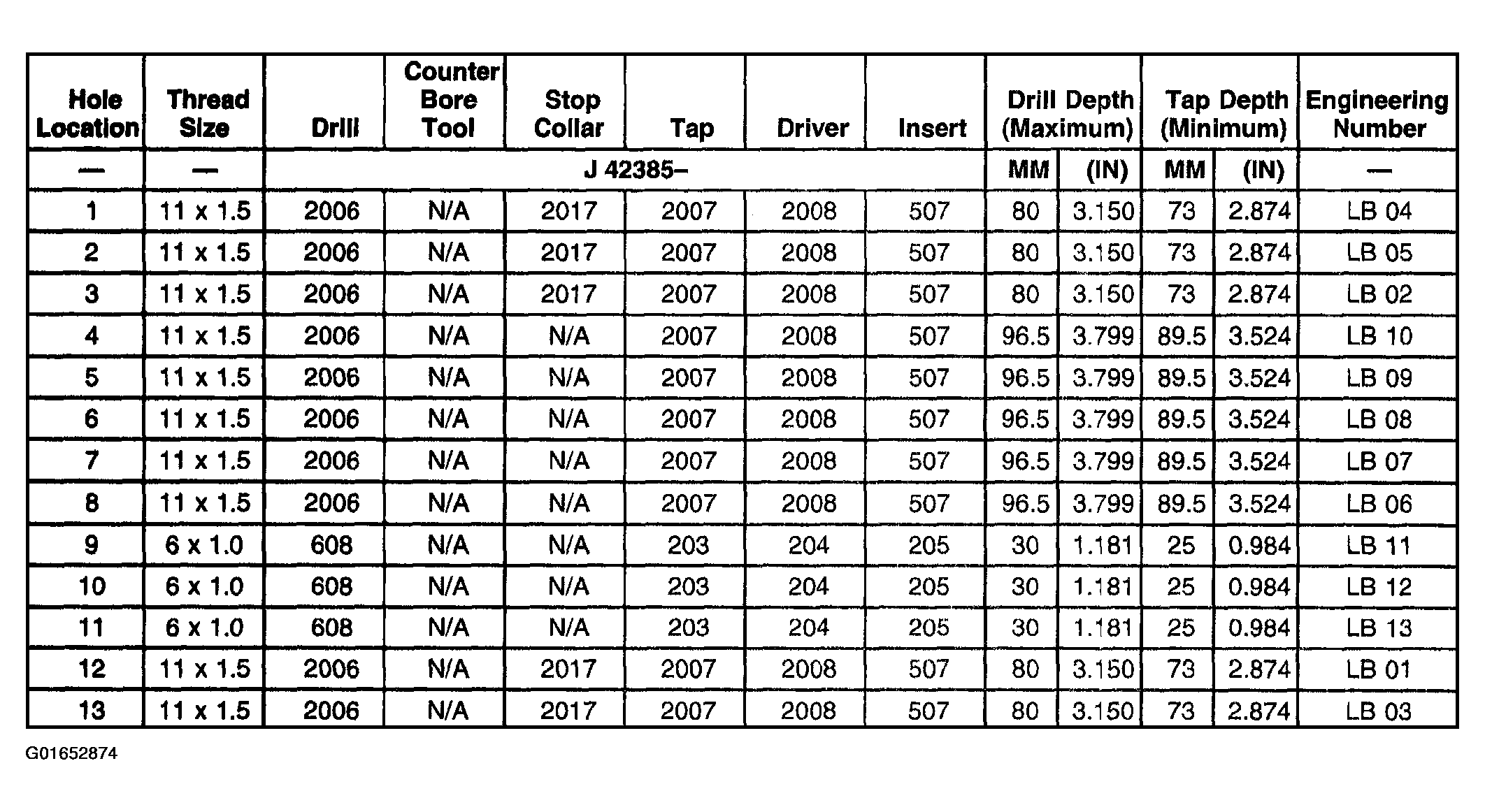

Fig 36: Engine Block Left Deck Face (Legend)

G01652874

Courtesy of GENERAL MOTORS CORP.

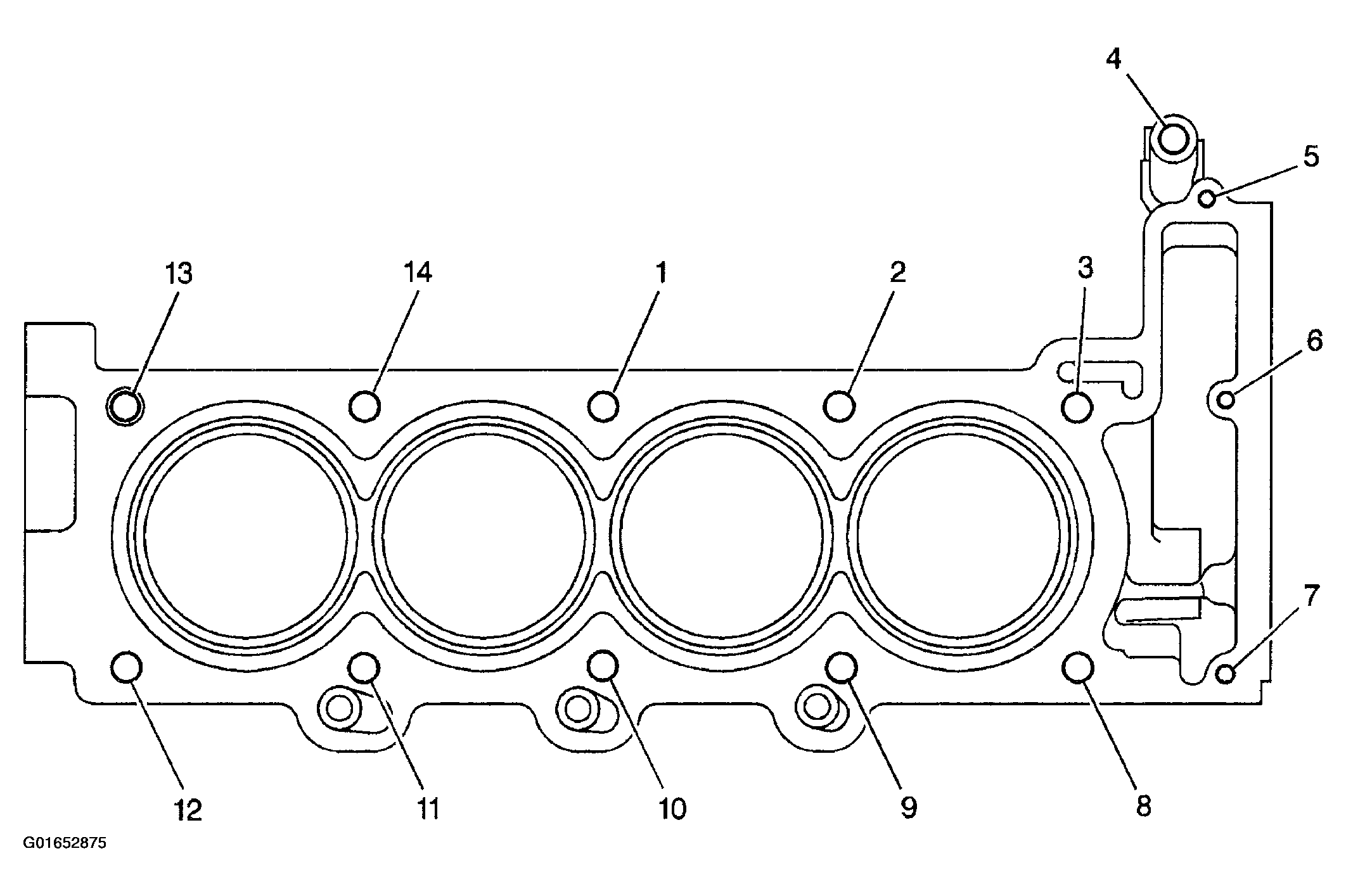

Fig 37: Engine Block Right Deck Face

G01652875

Courtesy of GENERAL MOTORS CORP.

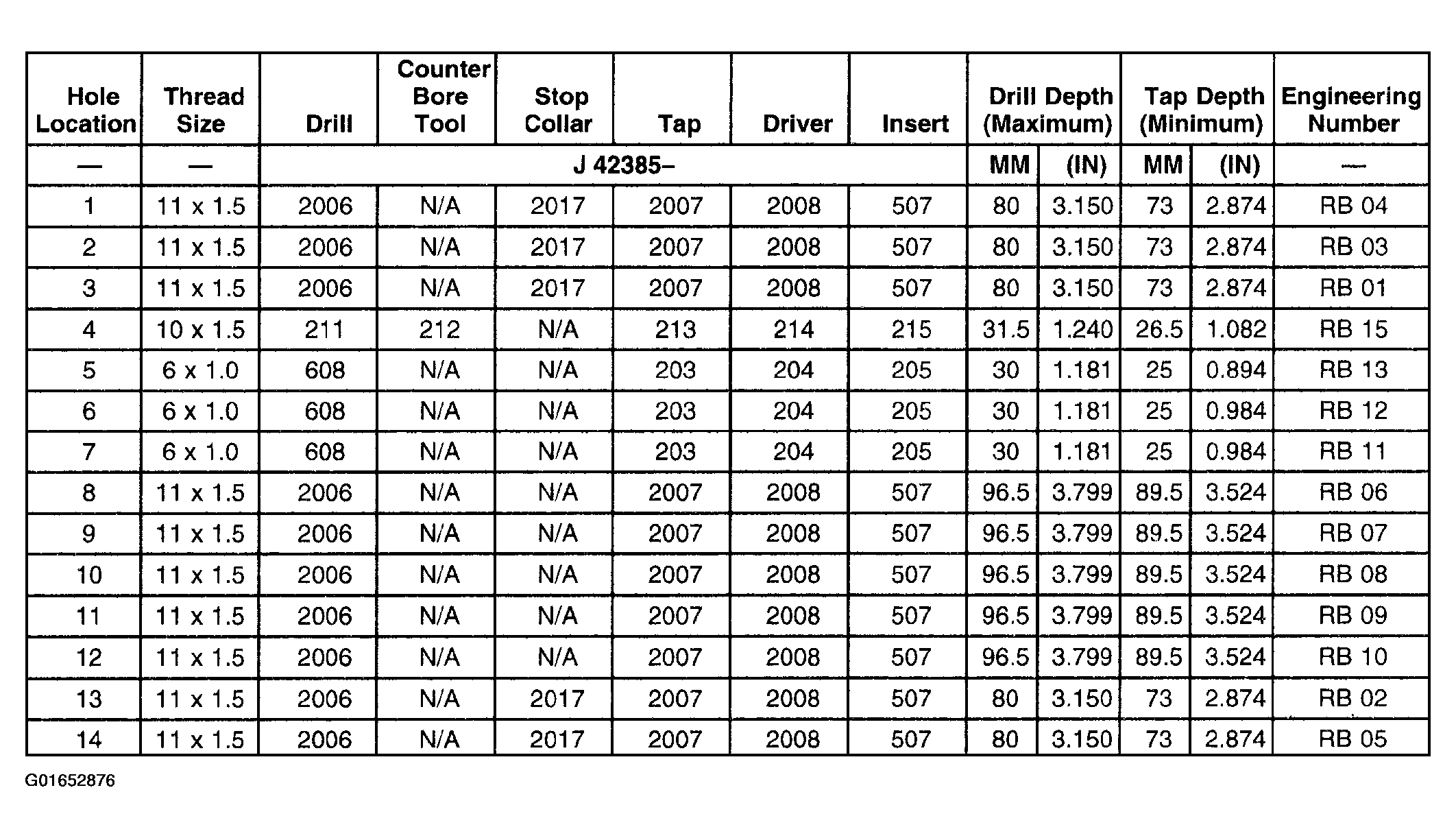

Fig 38: Engine Block Right Deck Face (Legend)

G01652876

Courtesy of GENERAL MOTORS CORP.

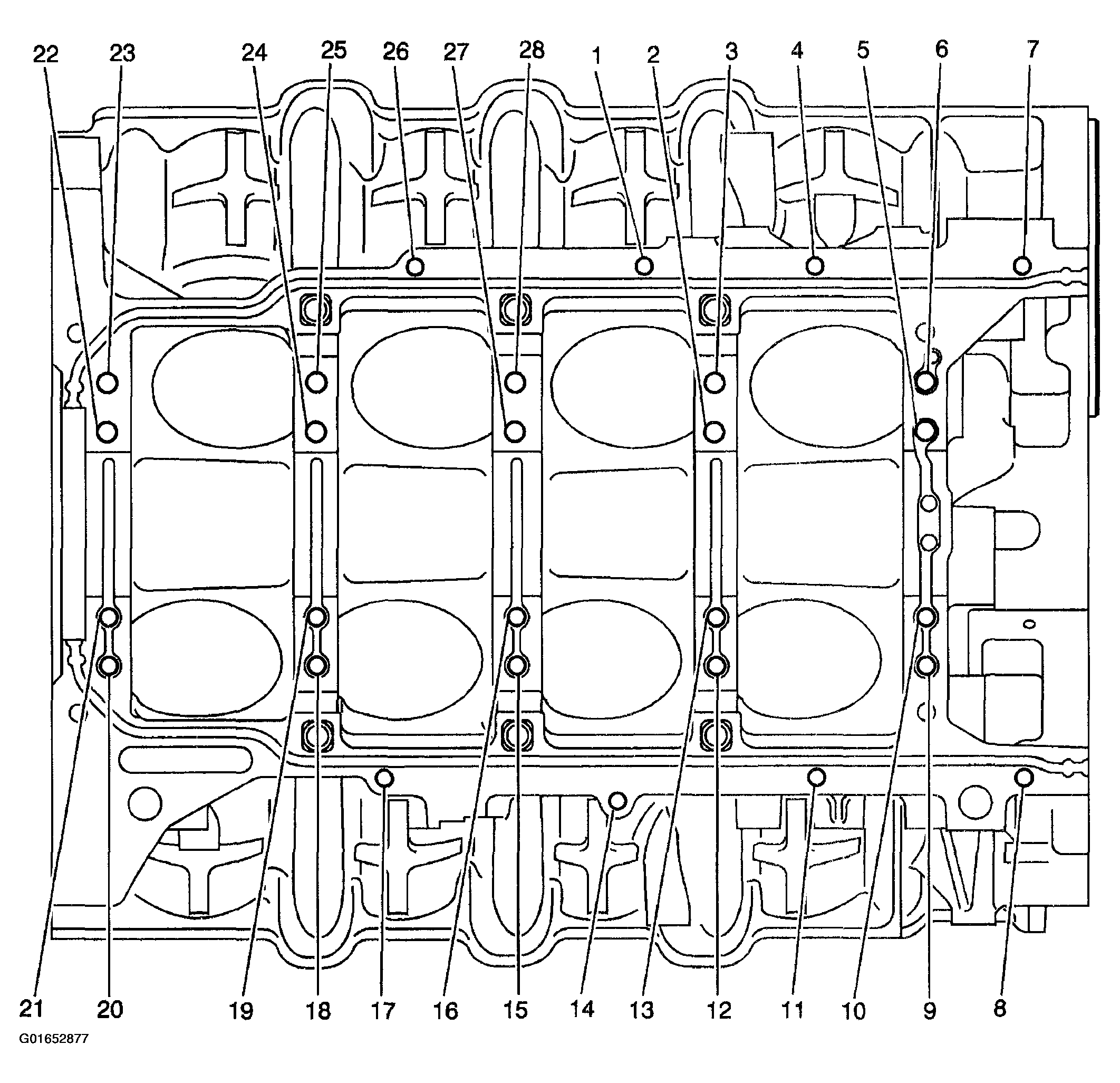

Fig 39: Engine Block Lower Face

G01652877

Courtesy of GENERAL MOTORS CORP.

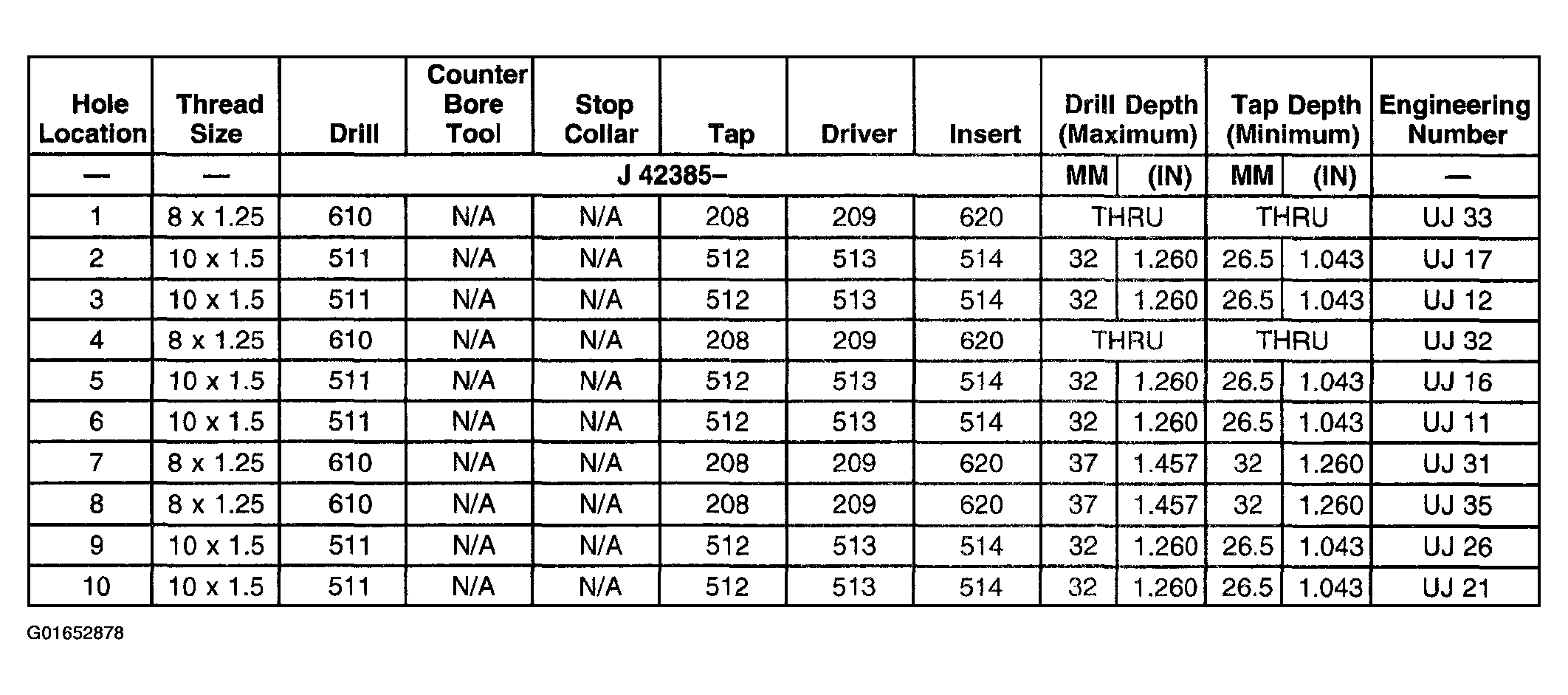

Fig 40: Engine Block Lower Face (Legend 1 Of 2)

G01652878

Courtesy of GENERAL MOTORS CORP.

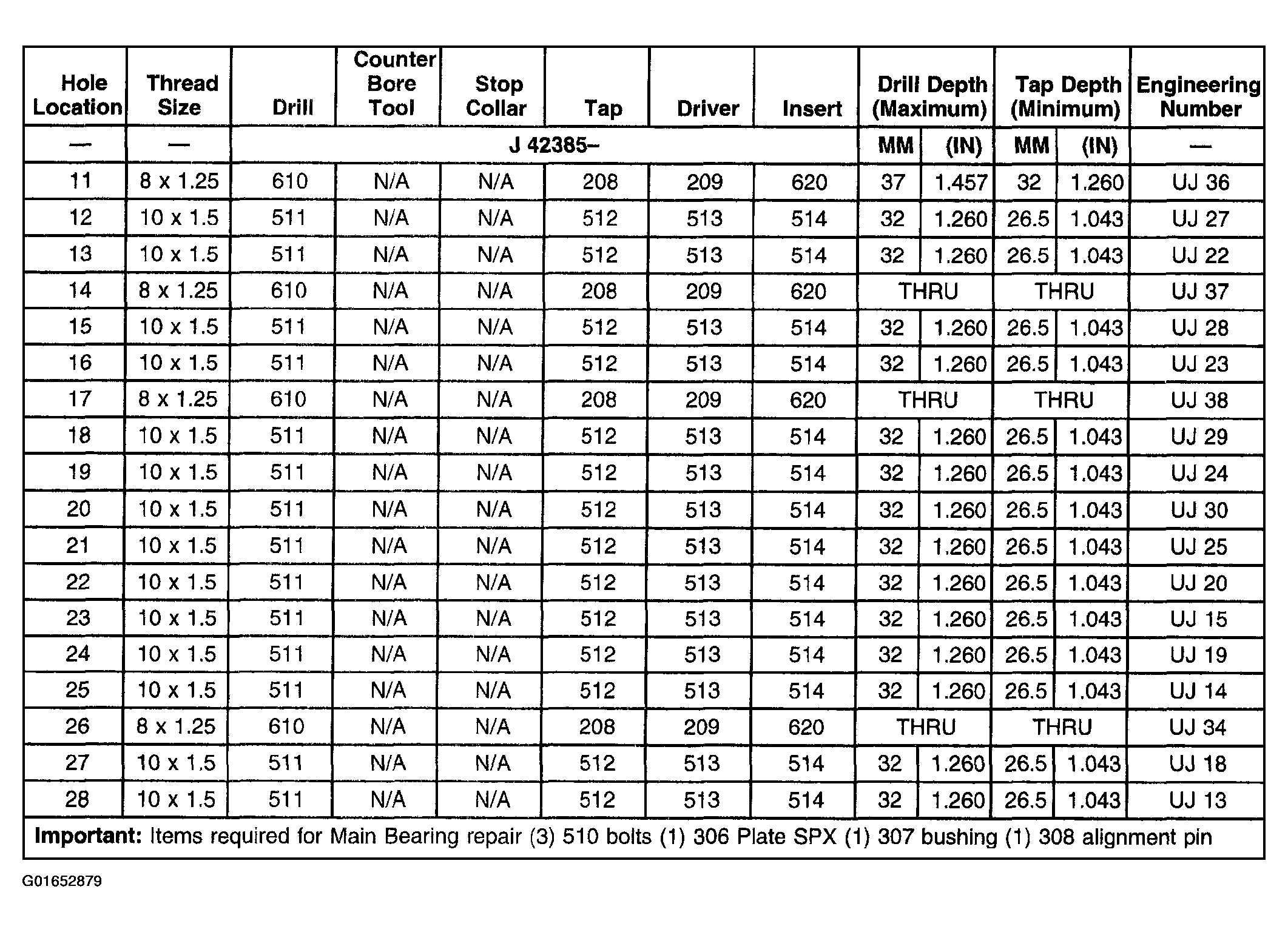

Fig 41: Engine Block Lower Face (Legend 2 Of 2)

G01652879

Courtesy of GENERAL MOTORS CORP.

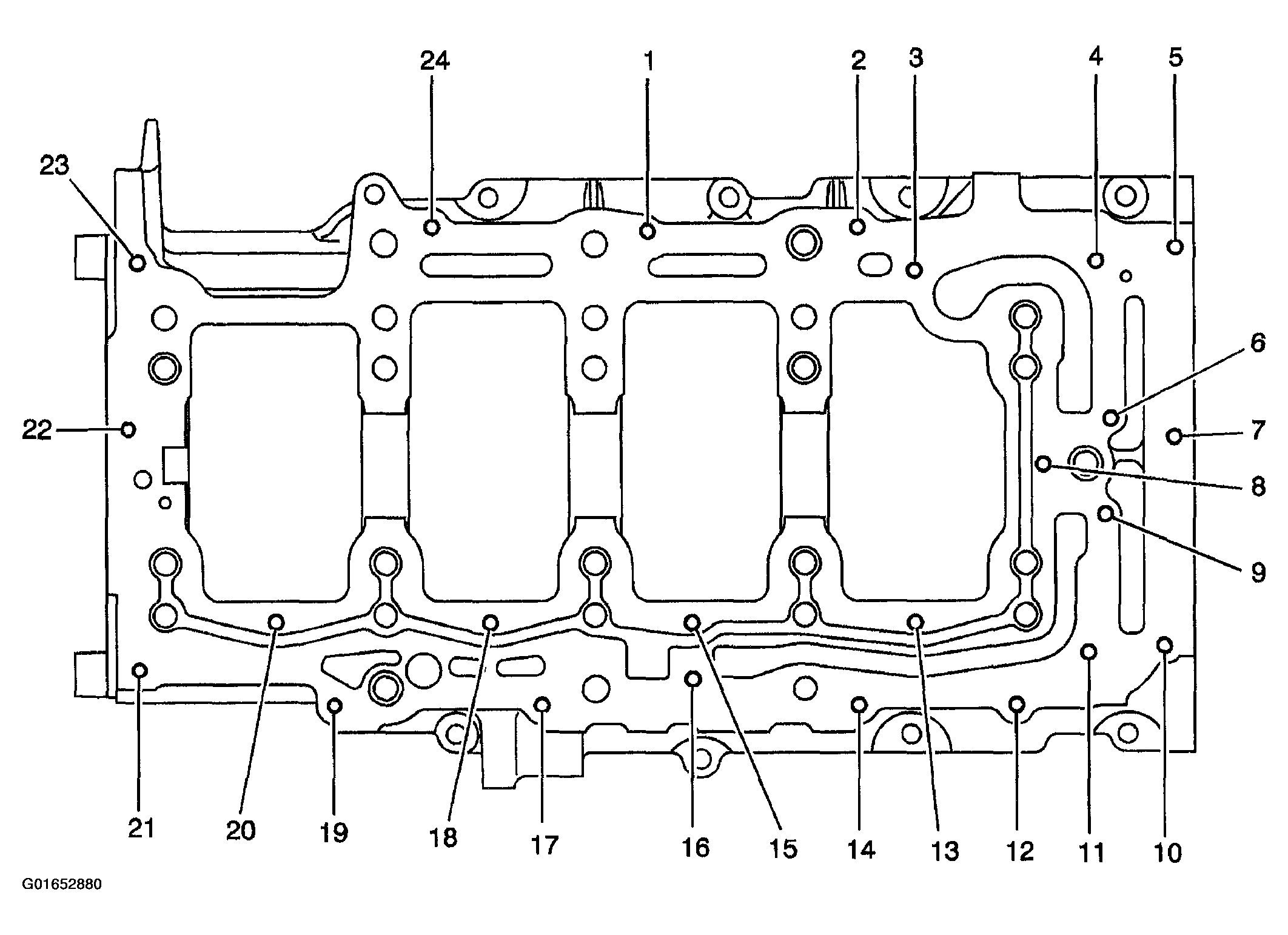

Fig 42: Lower Crankcase Pan Face

G01652880

Courtesy of GENERAL MOTORS CORP.

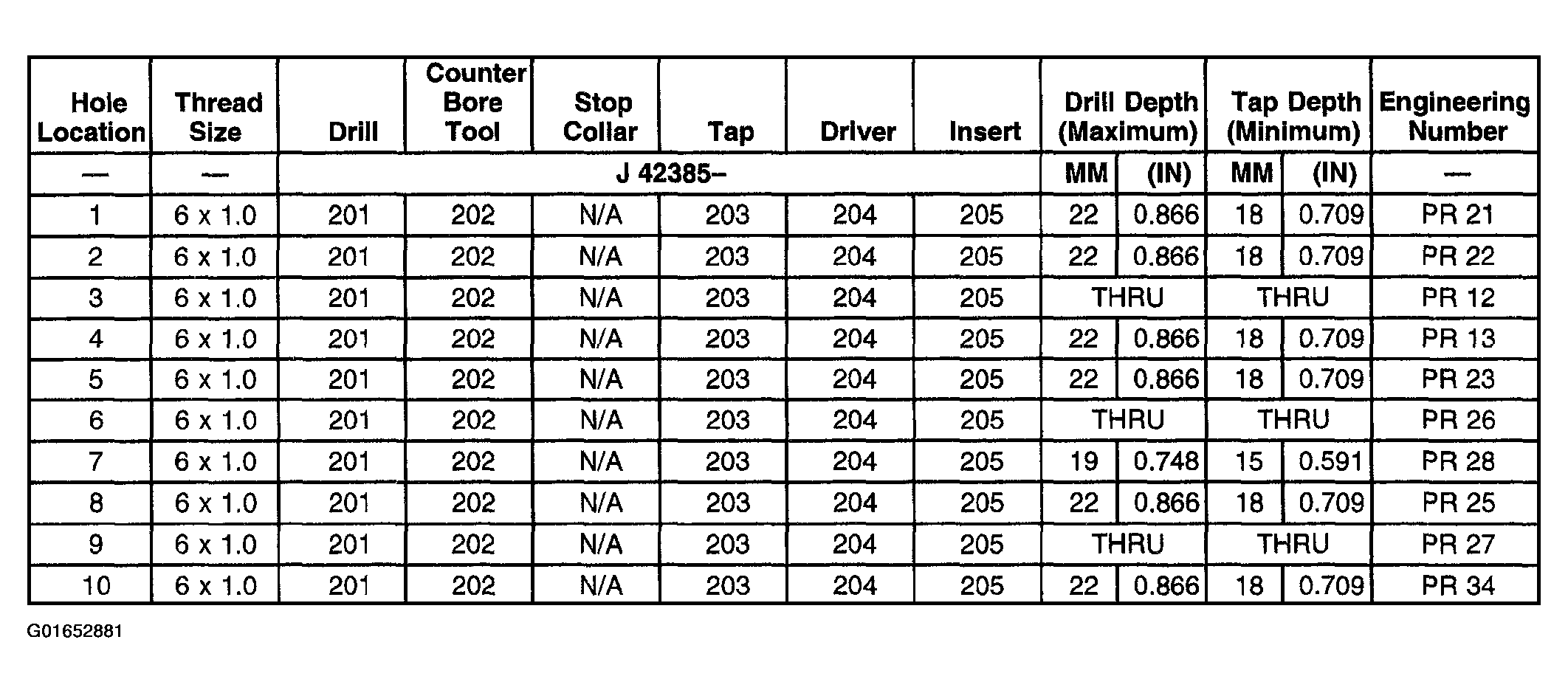

Fig 43: Lower Crankcase Pan Face (Legend 1 Of 2)

G01652881

Courtesy of GENERAL MOTORS CORP.

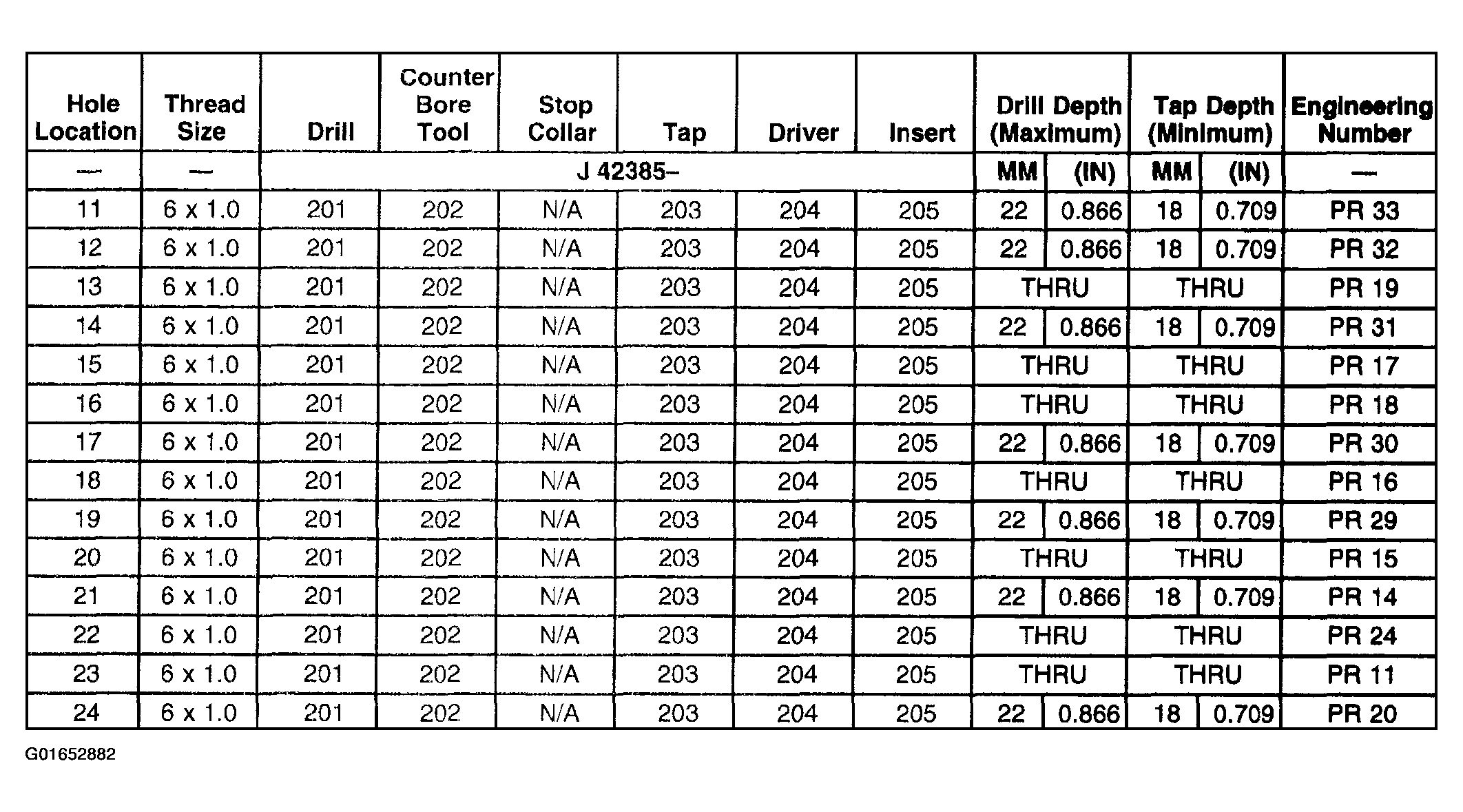

Fig 44: Lower Crankcase Pan Face (Legend 2 Of 2)

G01652882

Courtesy of GENERAL MOTORS CORP.
