Body Control Module Component Views

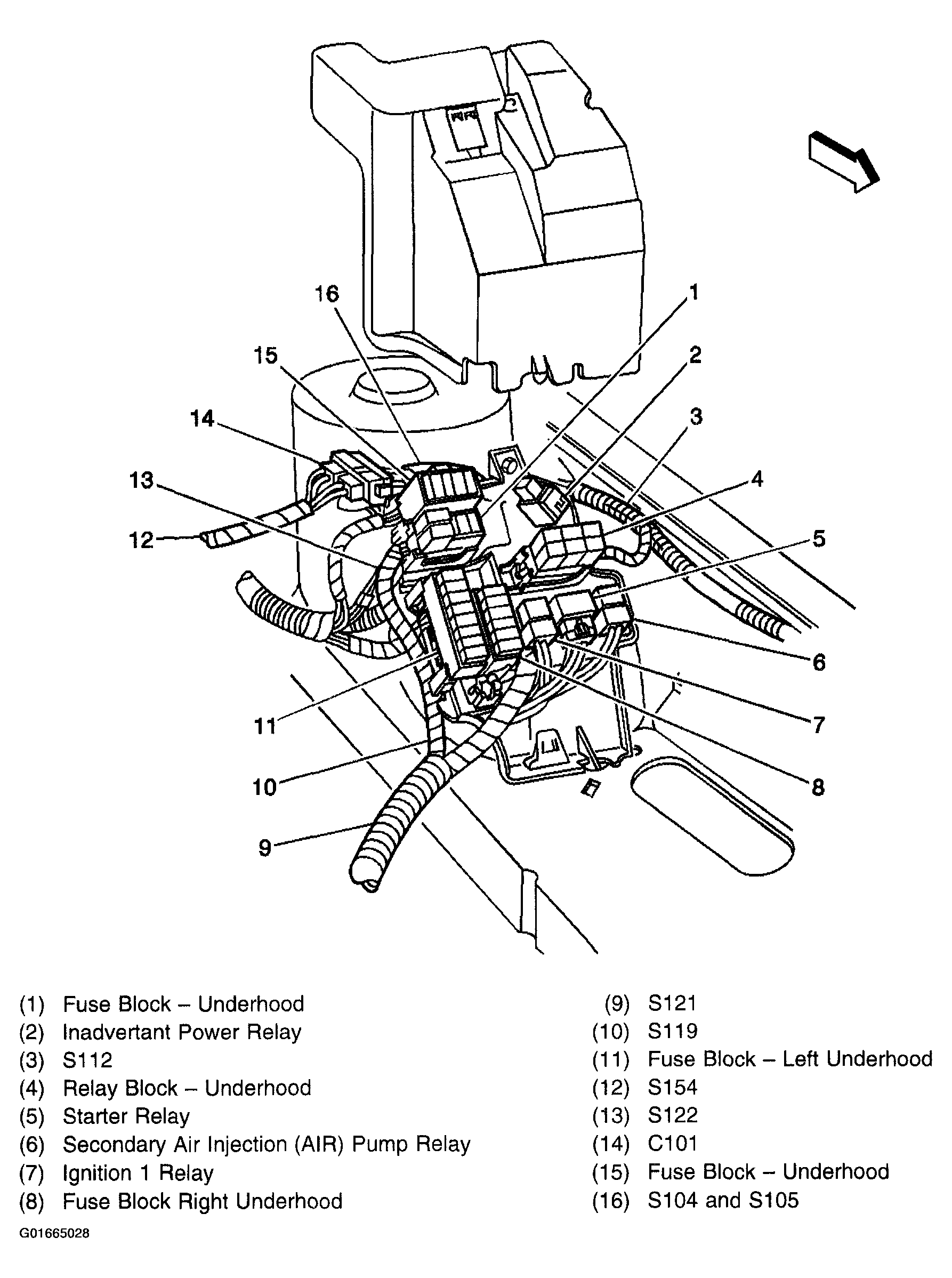

Fig 1: Engine Compartment, on the Left Side

G01665028

Courtesy of GENERAL MOTORS CORP.

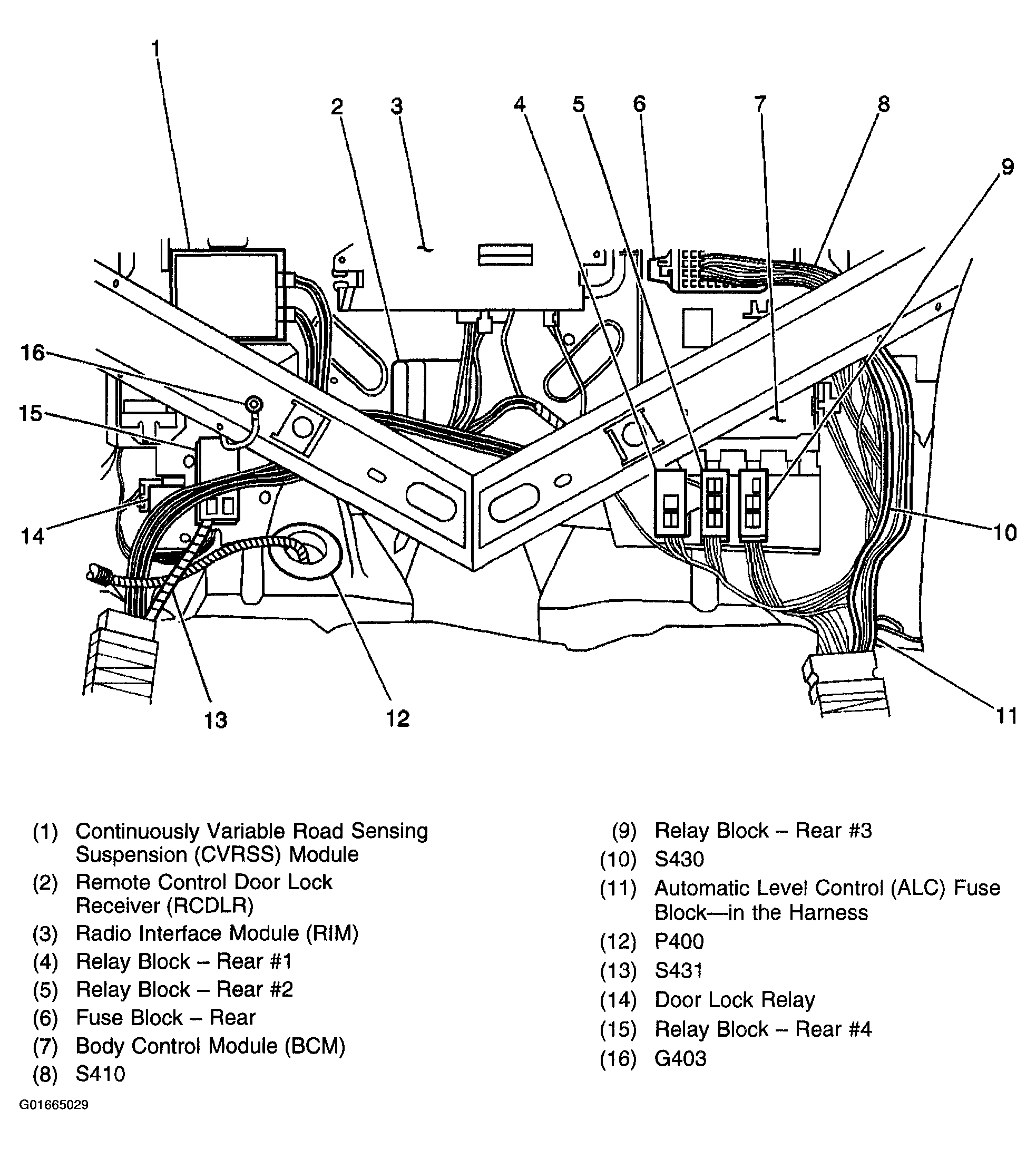

Fig 2: Passenger Compartment, Behind the Rear Seat

G01665029

Courtesy of GENERAL MOTORS CORP.
