Installation Procedure

  1. Route the wiring through the steering wheel.
  2. Align the splines on the steering wheel with the splines on the shaft.
  3. Install the steering wheel to the steering column upper shaft.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the steering wheel retaining nut.

    Tighten

    Tighten the steering wheel retaining nut to 41 N.m (30 lb ft).

  5. Connect the steering wheel electrical connector.
  6. Install the Inflatable Restraint Steering Wheel Module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  7. Enable the SIR system. Refer to ACTIVATING SYSTEM .

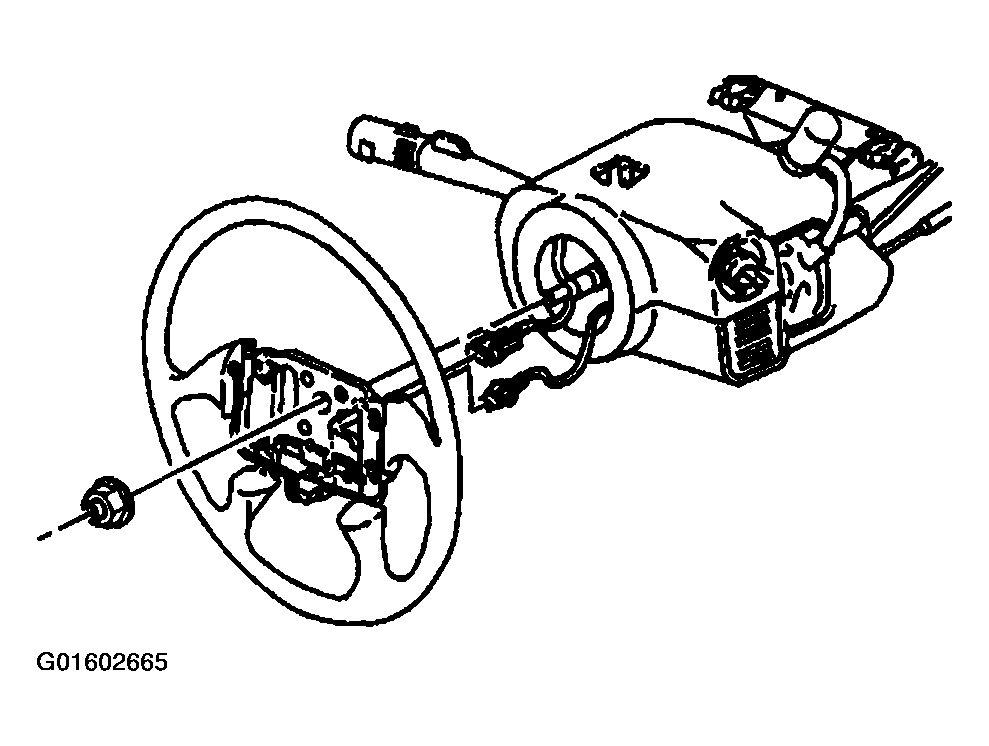

    Fig 1: Installing Steering Wheel
    G01602665Courtesy of GENERAL MOTORS CORP.
