Electronic Column Lock Module - Assemble - Off Vehicle

Tools Required

J 41396  Park Lock Cable Pliers

1. Slide the switch mounting bracket (2) onto the steering column.
   CAUTION: Refer to FASTENER NOTICE .
2. Install 1 pan head tapping screw (1).

   Tighten

   Tighten the pan head tapping screw to 7 N.m (62 lb in).

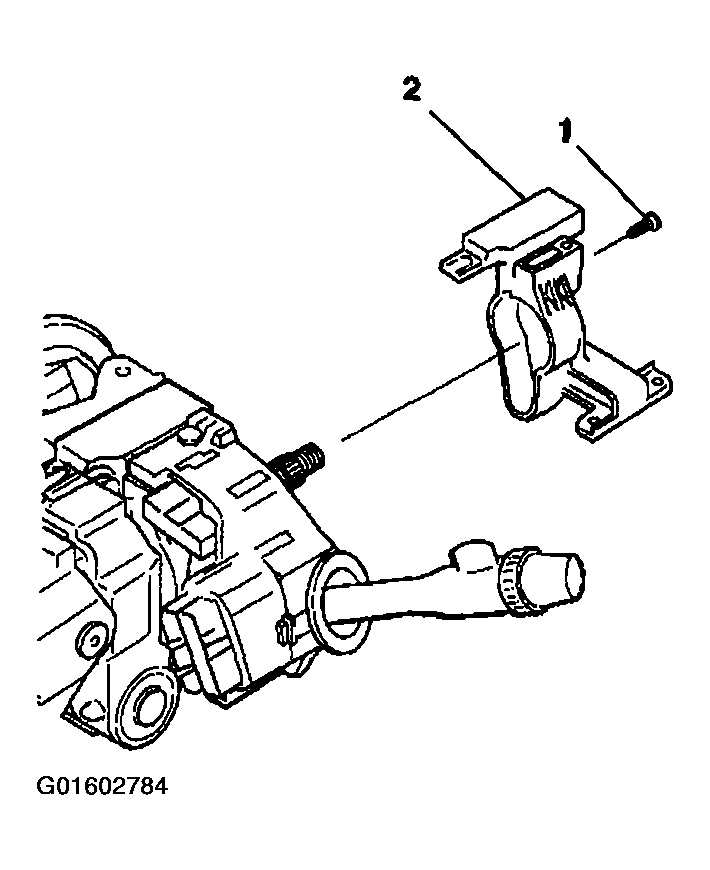

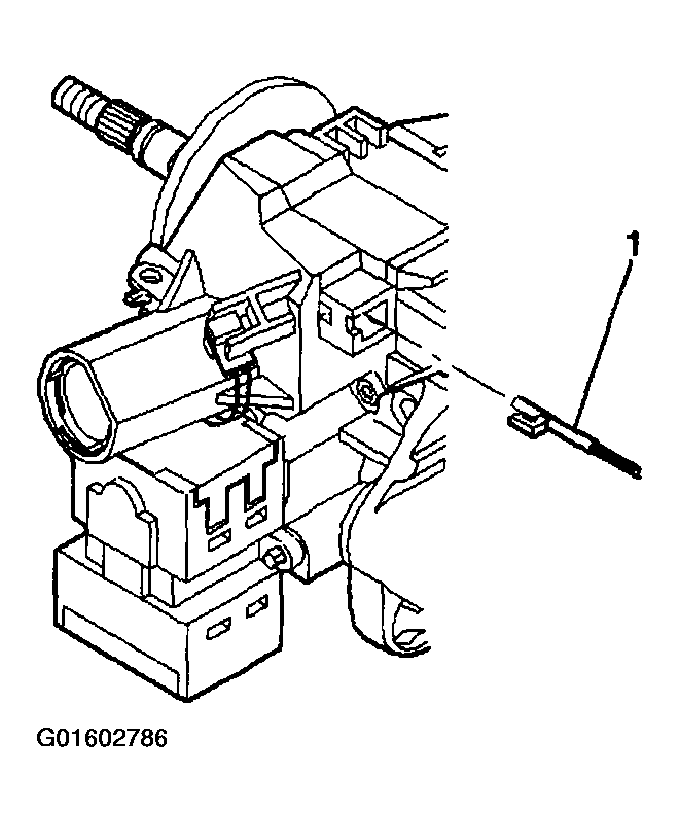

   Fig 1: Installing Switch Mounting Bracket & Screw

   Courtesy of GENERAL MOTORS CORP.
3. Install the lock bolt spring (3) into the switch mounting bracket (5).
4. Position the cutout in the lock bolt assembly (4) at the 3 o'clock position.
5. Install the lock bolt assembly (4) into the switch mounting bracket (5).
6. Push the lock bolt assembly (4) into the switch mounting bracket (5) until the lock bolt assembly is flush with the switch mounting bracket (5).
7. Align the lock module assembly (2) with the switch mounting bracket (5).
8. Screw the 3 pan head tapping screws (1) into the lock module assembly (2).

   Tighten

   • Tighten the pan head tapping screws to 7 N.m (62 lb in).
   • Tighten the pan head tapping screw to 2.3 N.m(20 lb in).

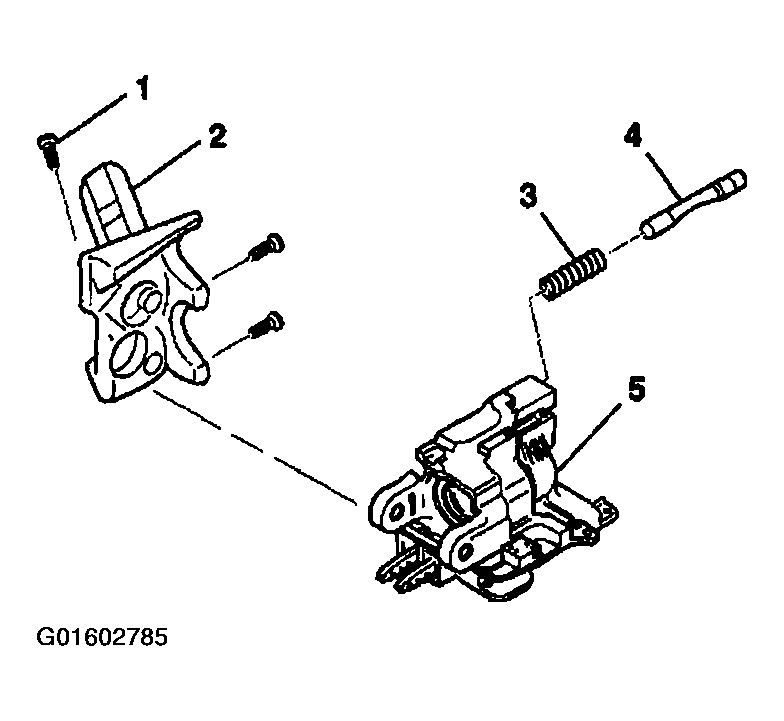

   Fig 2: Installing Lock Bolt Spring & Lock Bolt Assembly

   Courtesy of GENERAL MOTORS CORP.
9. Install the ignition and key alarm switch assembly and the coded key controller only. Refer to Ignition and Key Alarm Switch Assembly - Assemble - Off Vehicle .
10. Install the steering column lock cylinder set only. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
11. Place steering column lock cylinder set into the OFF position.
12. Place the shift lever clevis into the park position.
13. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the lock module assembly.
    Fig 3: Pressing Locking Tab On Park Lock Cable Assembly Into Lock Module Assembly

    Courtesy of GENERAL MOTORS CORP.
14. Adjust the park lock cable assembly (1) by performing the following steps:
    1. 14.1. Use the gear shift lever to place the steering column in the park position.
    2. 14.2. Insert the key into the ignition switch.
    3. 14.3. Place the steering column lock cylinder set in the OFF or LOCK position.
    4. 14.4. Remove the key from the ignition switch.
    5. 14.5. Unlock the adjuster ring on the park lock cable assembly using J 41396  .
    6. 14.6. Pull on the park lock cable until the park lock latch contacts the gear shift lever.
    7. 14.7. Release the park lock cable.
    8. 14.8. Lock the adjuster ring securely in place on the park lock cable assembly using J 41396  .

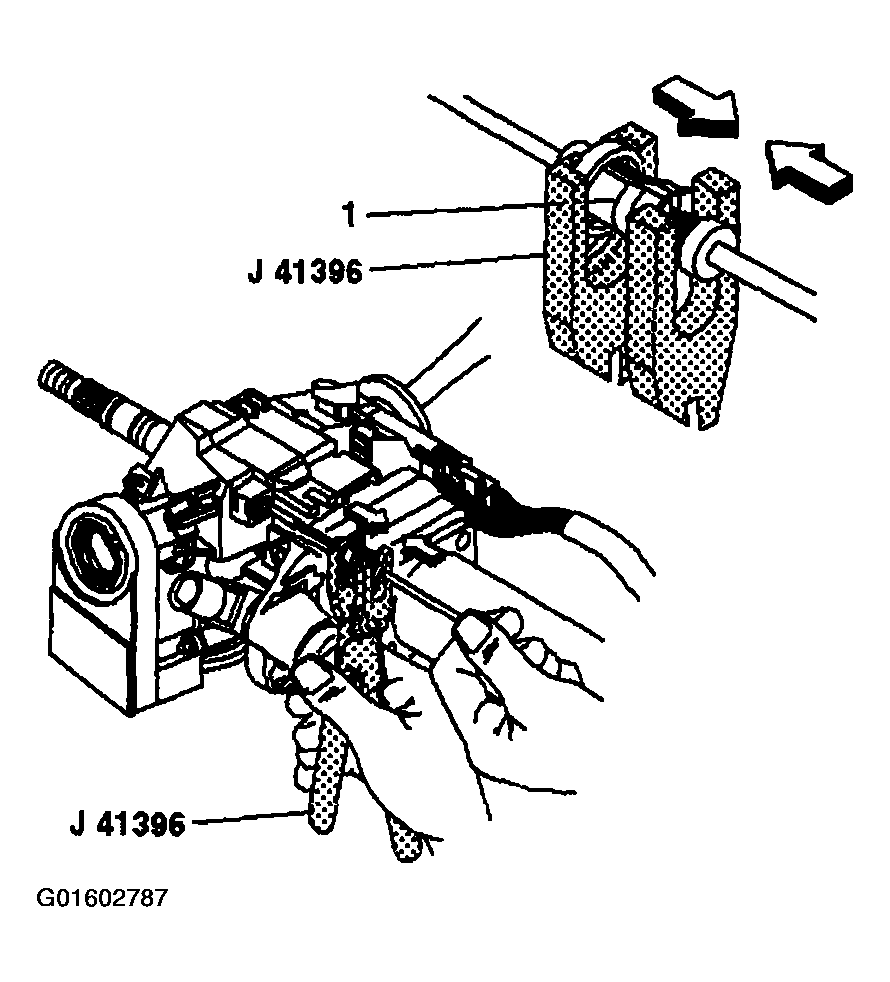

    Fig 4: Adjusting Park Lock Cable Assembly Using J 41396

    Courtesy of GENERAL MOTORS CORP.
15. Inspect the park lock cable assembly by performing the following steps.
    1. 15.1. Insert the key into the ignition switch.
    2. 15.2. Place the steering column lock cylinder set in the OFF or LOCK position. The gear shift lever must remain locked in the park position.
    3. 15.3. Place the steering column lock cylinder set in the run position.
    4. 15.4. Place the gear shift lever in the neutral position.
    5. 15.5. With the gear shift lever in the neutral position, the steering column lock cylinder set must remain out of the OFF or LOCK position.
    6. 15.6. Place the gear shift lever in the park position.
    7. 15.7. Put the steering column lock cylinder set in the OFF or LOCK position.
    8. 15.8. Remove the key from the ignition switch.
16. Install the upper tilt head components. Refer to Turn Signal Cancel Cam and Upper Bearing Inner Race - Assemble - Off Vehicle .
