Steering Wheel and Column Component Views

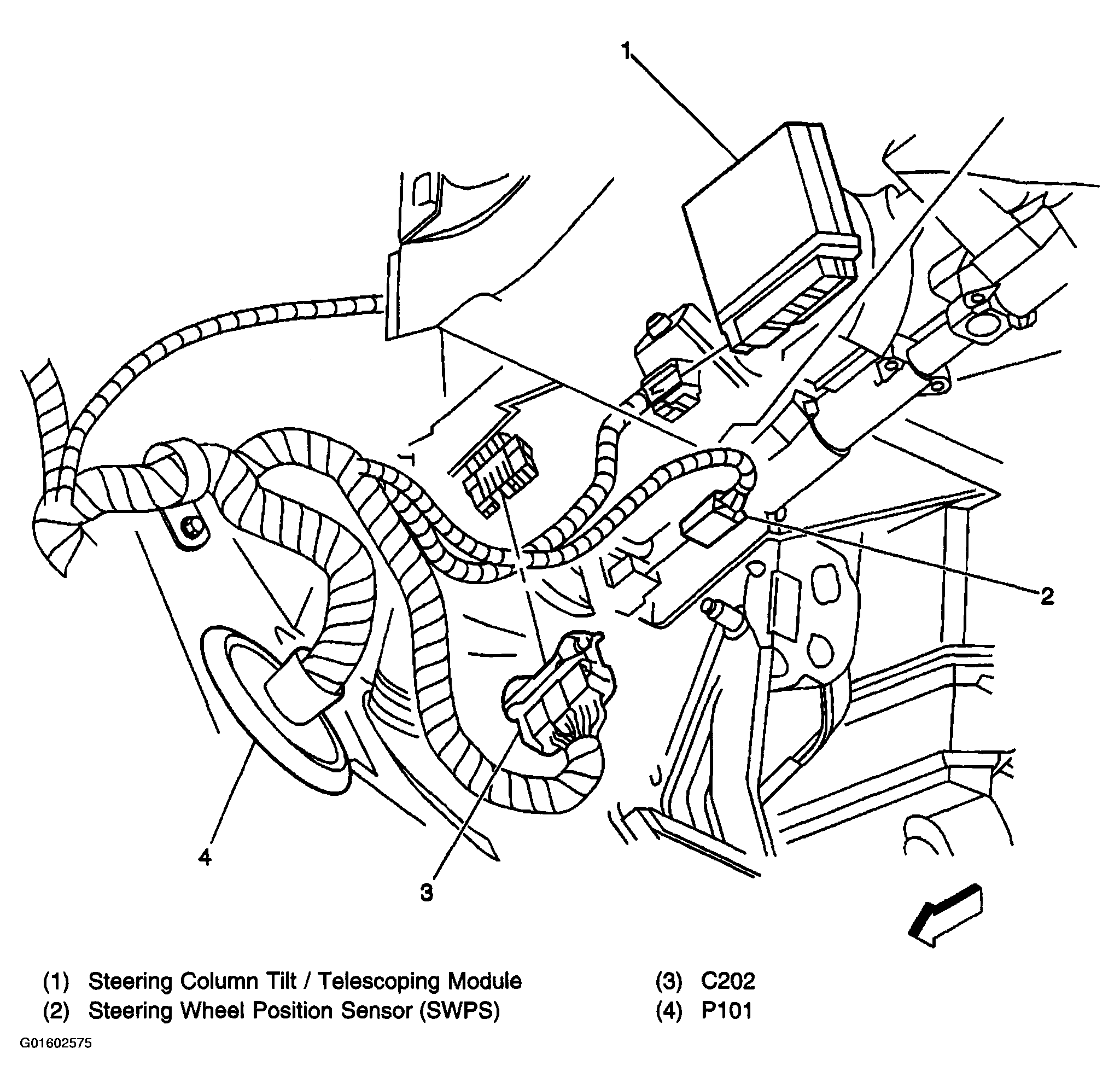

Fig 1: Identifying Passenger Compartment Component Views, At Base Of Steering Column

Courtesy of GENERAL MOTORS CORP.

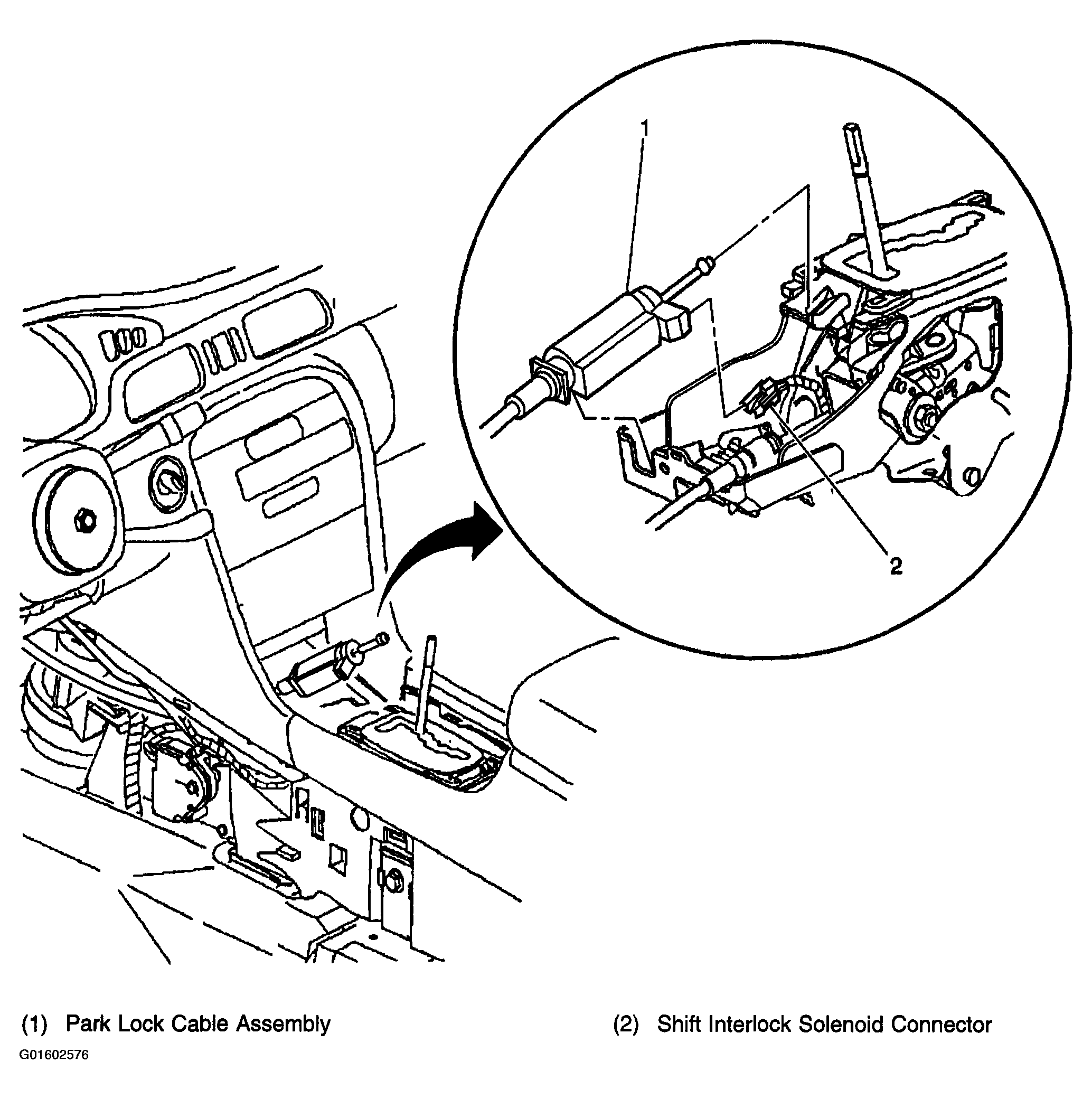

Fig 2: Beneath Center Console Component Views

Courtesy of GENERAL MOTORS CORP.
