Steering Column Module C3 Connector End View - Telescope Actuator

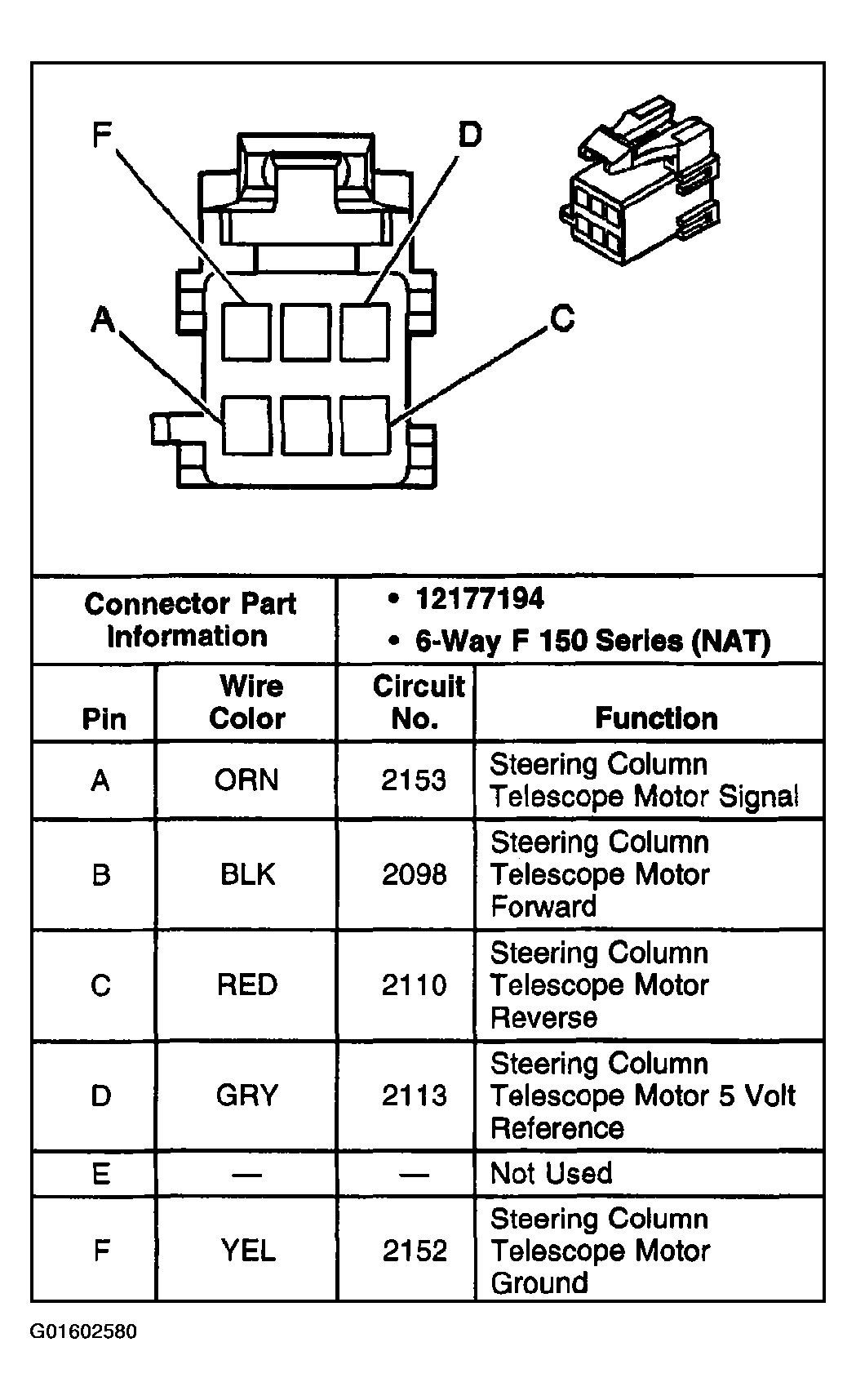

Fig 1: Steering Column Module C3 - Telescope Actuator
G01602580Courtesy of GENERAL MOTORS CORP.
