Steering Column Module C2 Connector End View - Tilt Actuator

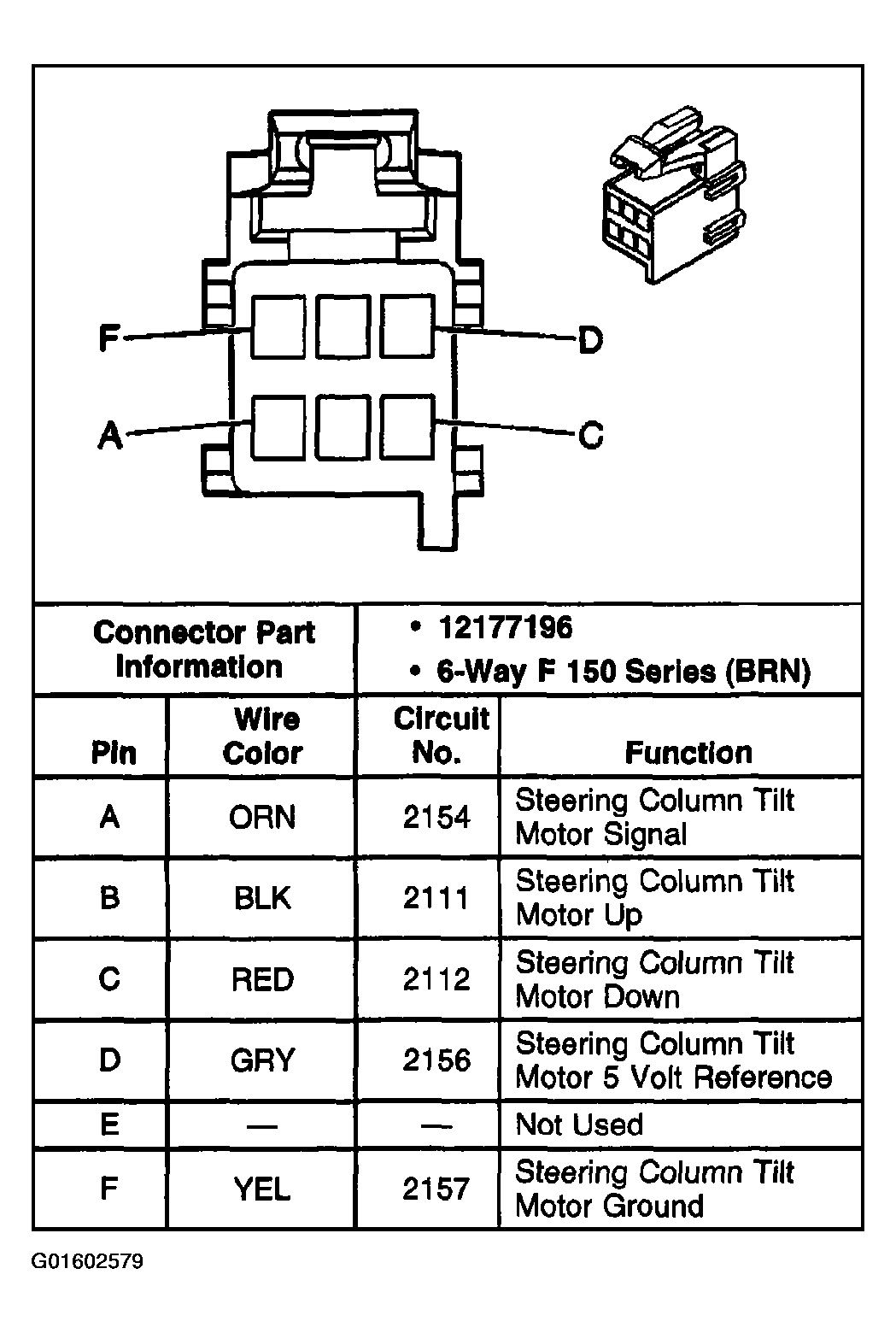

Fig 1: Steering Column Module C2 - Tilt Actuator

G01602579

Courtesy of GENERAL MOTORS CORP.
