Home >> Cadillac >> 2002 >> DeVille DHS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Information Center Telltale Assembly Connector End View

Information Center Telltale Assembly Connector End View

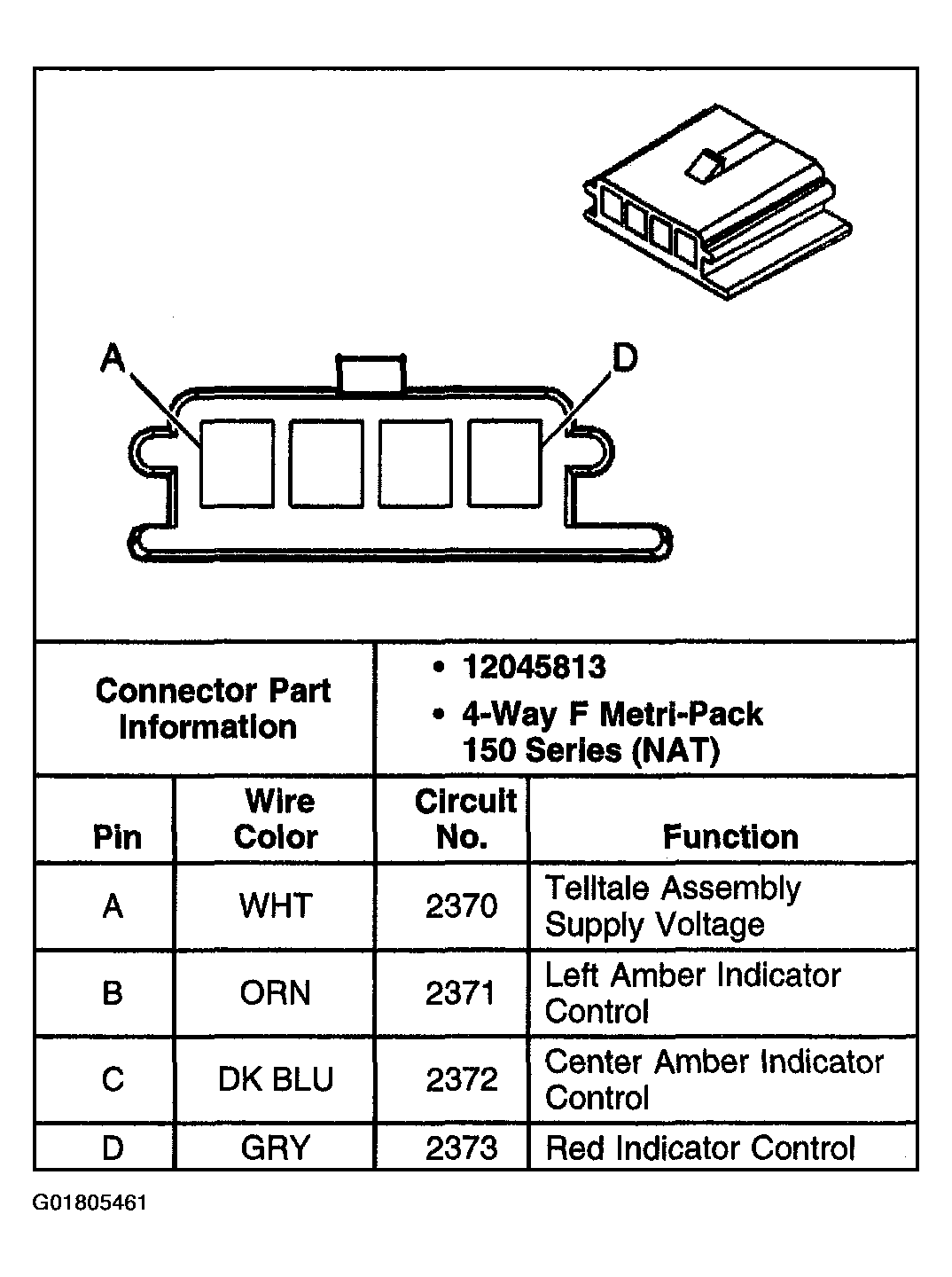

Fig 1: Information Center Telltale Assembly

G01805461

Courtesy of GENERAL MOTORS CORP.
